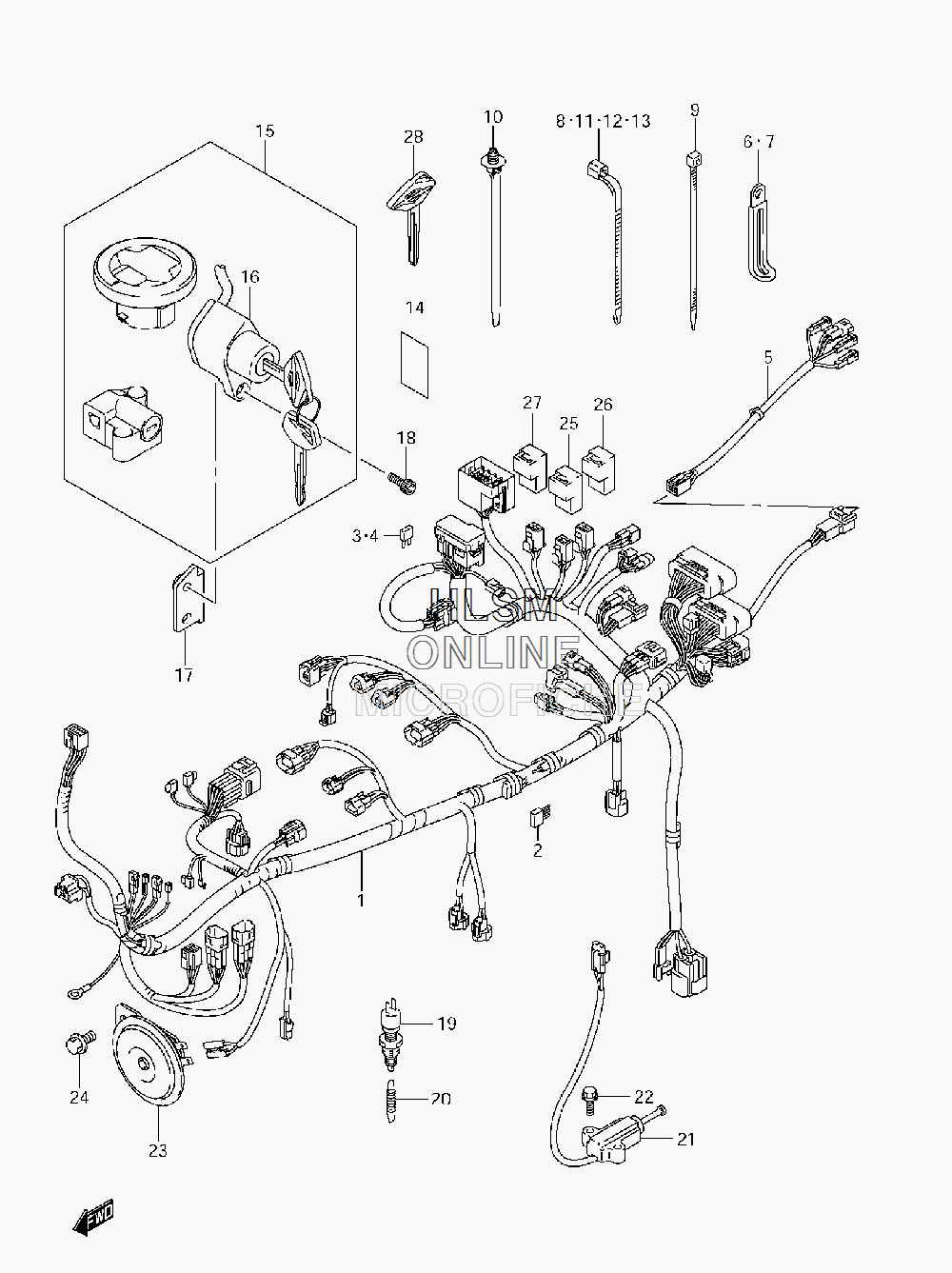

ELECTRICAL - WIRING HARNESS для Suzuki VZR1800 L2 BOULEVARD - 2012 года выпуска
-
№АртикулНазвание
-
136610-48GB1 HARNESS, WIRINGHARNESS, WIRING
-
236611-38A00 DIODEDIODE
-
309481-10501 FUSE (10A)FUSE (10A)
-
409481-15501 FUSE (15A)FUSE (15A)
-
536858-48G00 WIRE, REAR COMBWIRE, REAR COMB
-
609404-06429 CLAMP (L:45)CLAMP (L:45)
-
709404-06429 CLAMP (L:45)CLAMP (L:45)
-
809407-14403 CLAMP (L:125)CLAMP (L:125)
-
909407-14407 CLAMP (L:145)CLAMP (L:145)
-
1009407-17403 CLAMP (L:154)CLAMP (L:154)
-
1109407-18402 CLAMP (L:165)CLAMP (L:165)
-
1209407-19401 CLAMP (L:190)CLAMP (L:190)
-
1309407-25401 CLAMP (L:235)CLAMP (L:235)
-
1436611-16G00 TAPE, WIRING HARNESSTAPE, WIRING HARNESS
-
1537000-48890 LOCK SET (INCL. 16)LOCK SET (INCL. 16)
-
1637110-48G50 SWITCH ASSY, IGNITIONSWITCH ASSY, IGNITION
-
1737119-48G00 BRACKET, IGNITION SWITCHBRACKET, IGNITION SWITCH
-
1807130-0616A BOLTBOLT
-
1937740-24A00 SWITCH ASSY, STOP LAMPSWITCH ASSY, STOP LAMP
-
2009443-06077 SPRINGSPRING
-
2137840-25D00 SWITCH ASSY, SIDE STANDSWITCH ASSY, SIDE STAND
-
2201550-0625A SCREWSCREW
-
2338500-48G01 HORN ASSYHORN ASSY
-
2401550-0812A BOLTBOLT
-
2538740-24X50 RELAY ASSY, FUEL PUMPRELAY ASSY, FUEL PUMP
-
2638740-24X50 RELAY ASSY, FAN MOTORRELAY ASSY, FAN MOTOR
-
2738740-24A00 RELAY ASSY, HEADLAMPRELAY ASSY, HEADLAMP
-
2837146-10F00 KEY, BLANKKEY, BLANK
