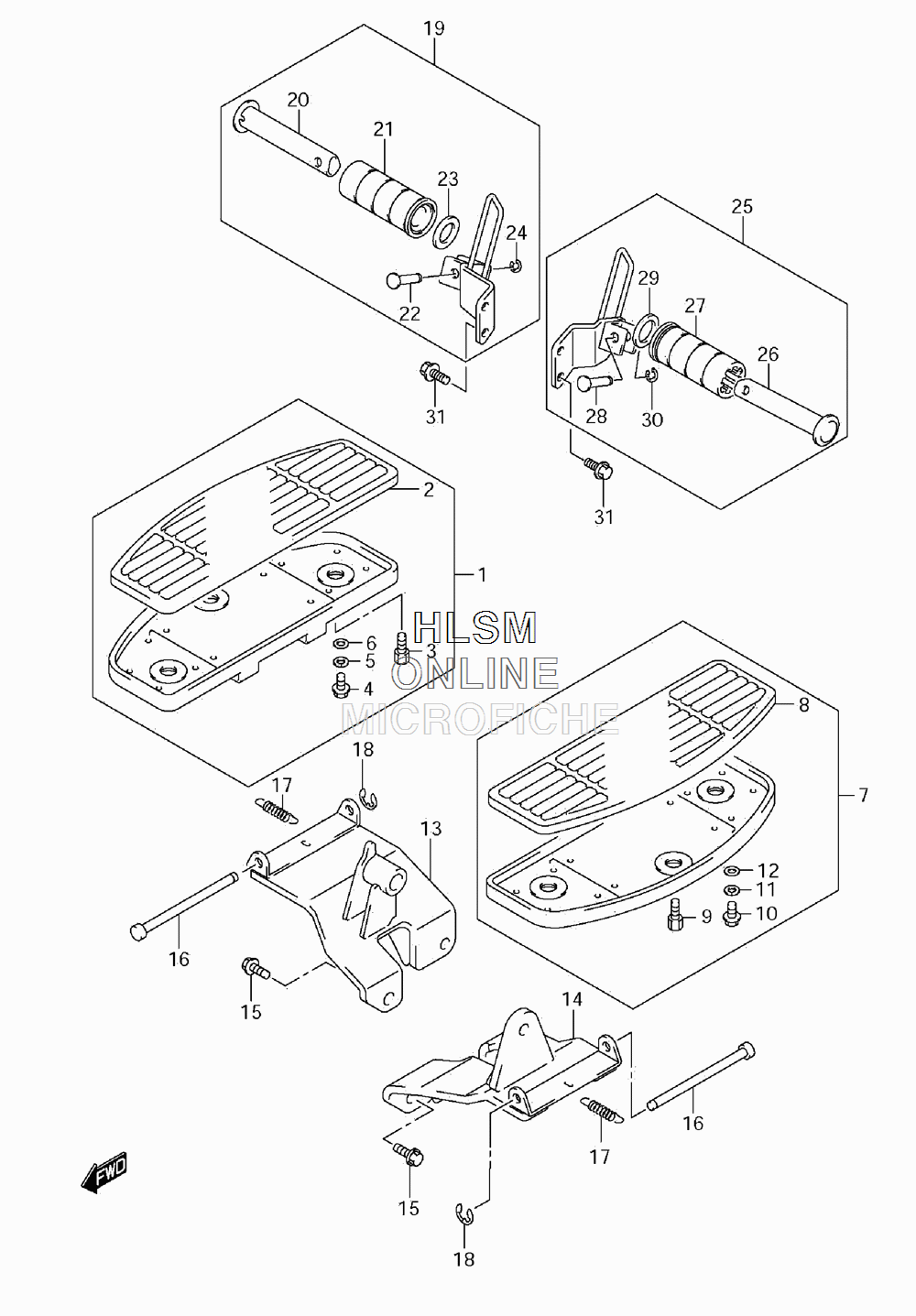

FOOTREST для Suzuki VZ800 L2 - 2012 года выпуска
-
№АртикулНазвание
-
143501-10F11 FOOTREST ASSY, FRONT RIGHT HAND (INCL. 2-6)FOOTREST ASSY, FRONT RIGHT HAND (INCL. 2-6)
-
243550-10F10 RUBBERRUBBER
-
343576-07D01 BOLT, BANK SENSORBOLT, BANK SENSOR
-
401550-0610A BOLTBOLT
-
509160-06158 WASHER (6.5X22X1.6)WASHER (6.5X22X1.6)
-
609320-10036 CUSHIONCUSHION
-
743502-10F11 FOOTREST ASSY, FRONT LEFT HAND (INCL. 8-12)FOOTREST ASSY, FRONT LEFT HAND (INCL. 8-12)
-
843550-10F10 RUBBERRUBBER
-
943576-07D01 BOLT, BANK SENSORBOLT, BANK SENSOR
-
1001550-0610A BOLTBOLT
-
1109160-06158 WASHER (6.5X22X1.6)WASHER (6.5X22X1.6)
-
1209320-10036 CUSHIONCUSHION
-
1343510-41F30 BRACKET, FRONT FOOTREST RIGHT HANDBRACKET, FRONT FOOTREST RIGHT HAND
-
1443520-41F30 BRACKET, FRONT FOOTREST LEFT HANDBRACKET, FRONT FOOTREST LEFT HAND
-
1501580-1030B BOLTBOLT
-
1643539-10F00 PINPIN
-
1709443-11033 SPRINGSPRING
-
1808332-1106A E RINGE RING
-
1943600-41F50 FOOTREST ASSY, PILLION RIGHT HAND (INCL. 20-24)FOOTREST ASSY, PILLION RIGHT HAND (INCL. 20-24)
-
2043610-39G00 BARBAR
-
2143612-39G00 RUBBERRUBBER
-
2243636-25D00 PINPIN
-
2309160-19024 WASHER (19.5X32X2)WASHER (19.5X32X2)
-
2408332-1104B E RINGE RING
-
2543700-41F50 FOOTREST ASSY, PILLION LEFT HAND (INCL. 26-30)FOOTREST ASSY, PILLION LEFT HAND (INCL. 26-30)
-
2643610-39G00 BARBAR
-
2743612-39G00 RUBBERRUBBER
-
2843636-25D00 PINPIN
-
2909160-19024 WASHER (19.5X32X2)WASHER (19.5X32X2)
-
3008332-1104B E RINGE RING
-
3109103-08412 BOLT (8X16)BOLT (8X16)
