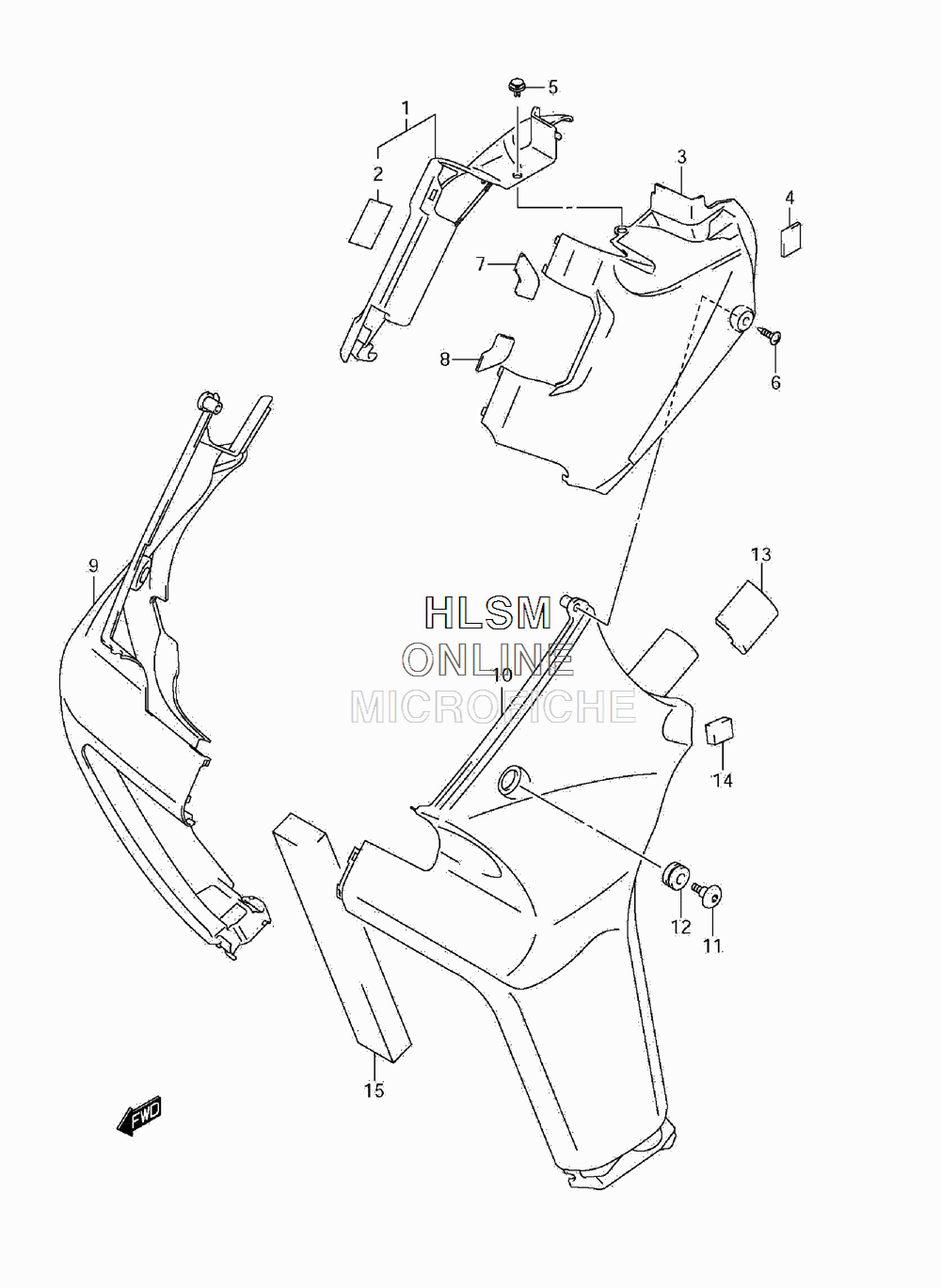

FRAME HEAD COVER (CALIF ONLY) для Suzuki VZR1800 L1 - 2011 года выпуска
-
№АртикулНазвание
-
147350-48G00-YKZ COVER, FRAME HEAD RIGHT HAND (INC 2) (BLUE) (YKZ)COVER, FRAME HEAD RIGHT HAND (INC 2) (BLUE) (YKZ)
-
147350-48G00-YVB COVER, FRAME HEAD RIGHT HAND (INC 2) (BLACK) (YVB)COVER, FRAME HEAD RIGHT HAND (INC 2) (BLACK) (YVB)
-
289445-61J00 TAPE, FRAME HEAD COVERTAPE, FRAME HEAD COVER
-
347361-48G00-YKZ COVER, FRAME HEAD LEFT HAND (BLUE) (YKZ)COVER, FRAME HEAD LEFT HAND (BLUE) (YKZ)
-
347361-48G00-YVB COVER, FRAME HEAD LEFT HAND (BLACK) (YVB)COVER, FRAME HEAD LEFT HAND (BLACK) (YVB)
-
417798-39G00 CUSHIONCUSHION
-
509409-06328 CLIPCLIP
-
603541-0516A SCREWSCREW
-
747352-48G00 TAPE, UPPER LEFT HANDTAPE, UPPER LEFT HAND
-
847353-48G01 TAPE, LOWER LEFT HANDTAPE, LOWER LEFT HAND
-
947551-48G00-YKZ COVER, FRAME BODY RIGHT HAND (BLUE) (YKZ)COVER, FRAME BODY RIGHT HAND (BLUE) (YKZ)
-
947551-48G00-YVB COVER, FRAME BODY RIGHT HAND (BLACK) (YVB)COVER, FRAME BODY RIGHT HAND (BLACK) (YVB)
-
1047561-48G00-YKZ COVER, FRAME BODY LEFT HAND (BLUE) (YKZ)COVER, FRAME BODY LEFT HAND (BLUE) (YKZ)
-
1047561-48G00-YVB COVER, FRAME BODY LEFT HAND (BLACK) (YVB)COVER, FRAME BODY LEFT HAND (BLACK) (YVB)
-
1109139-06126 SCREW (6X20)SCREW (6X20)
-
1209320-09016 CUSHIONCUSHION
-
1363191-25C00 CUSHION, UPPERCUSHION, UPPER
-
1417798-39G00 CUSHION, CENTERCUSHION, CENTER
-
1547552-48G00 CUSHION, LOWER RIGHT HANDCUSHION, LOWER RIGHT HAND
