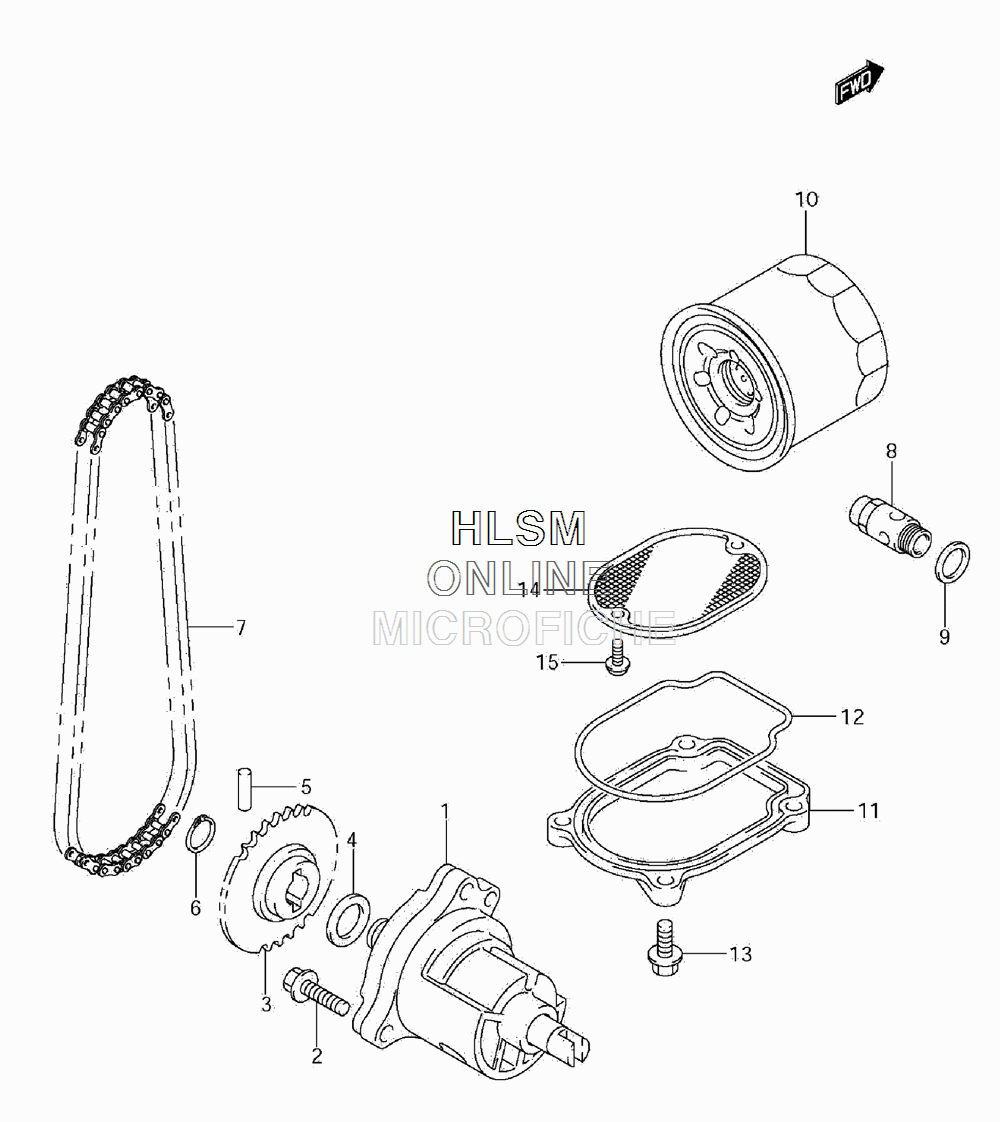

OIL PUMP для Suzuki VL800 L1 - 2011 года выпуска
-
№АртикулНазвание
-
116400-38A01 PUMP ASSY, ENG OILPUMP ASSY, ENG OIL
-
201547-0625A BOLT, OIL PUMPBOLT, OIL PUMP
-
316331-38A10 SPROCKET, OIL PUMP DRIVENSPROCKET, OIL PUMP DRIVEN
-
409181-12158 WASHER, OIL PUMP (12X20X0.5)WASHER, OIL PUMP (12X20X0.5)
-
509261-05006 PIN, OIL PUMP DRIVEN SPPIN, OIL PUMP DRIVEN SP
-
608331-3112A CIRCLIP, OIL PUMP DRIVENCIRCLIP, OIL PUMP DRIVEN
-
716310-38A00 CHAIN ASSY, OIL PUMP DRCHAIN ASSY, OIL PUMP DR
-
816440-17C20 VALVE ASSY, OIL RELIEFVALVE ASSY, OIL RELIEF
-
909168-16002 GASKET, OIL RELIEF VALVEGASKET, OIL RELIEF VALVE
-
1016510-03G00-X07 FILTER ASSY, ENGINE OILFILTER ASSY, ENGINE OIL
-
1116523-38A00 CAP, OIL STRAINERCAP, OIL STRAINER
-
1216528-38A00 O RING, OIL STRAINER CAPO RING, OIL STRAINER CAP
-
1301547-0620A BOLT, OIL STRAINER CAPBOLT, OIL STRAINER CAP
-
1416520-38A10 STRAINER, ENG OILSTRAINER, ENG OIL
-
1502112-7512A SCREW, OIL STRAINERSCREW, OIL STRAINER
