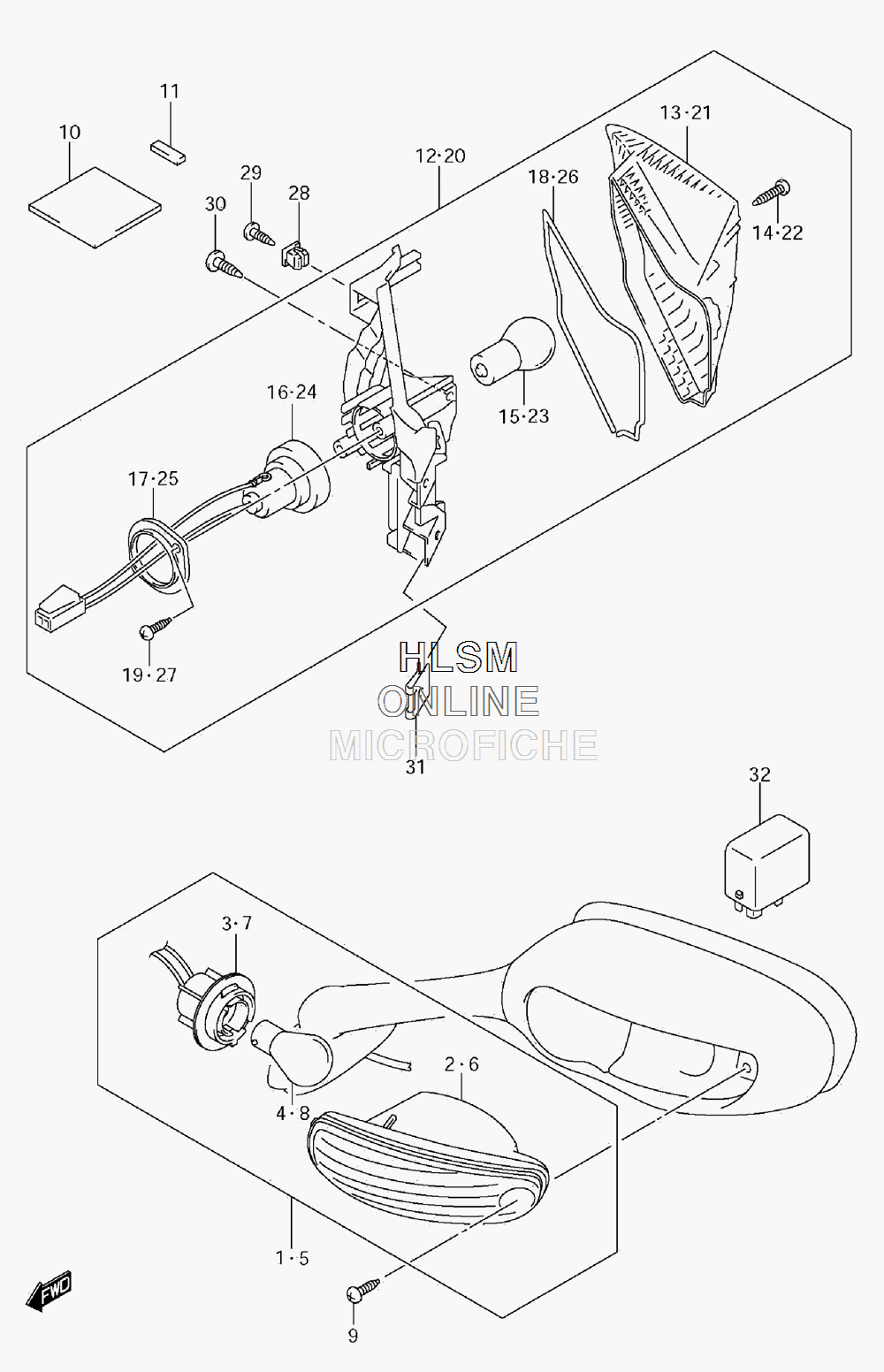

TURN SIGNAL ASSY. для Suzuki GSX-R 750 L1 - 2011 года выпуска
-
№АртикулНазвание
-
135601-41G00 LAMP ASSY, FRNT TURNSIGNAL (RIGHT) (INCL 2 - 4)LAMP ASSY, FRNT TURNSIGNAL (RIGHT) (INCL 2 - 4)
-
235610-41G00 LAMP UNIT (RIGHT)LAMP UNIT (RIGHT)
-
335618-10G50 SOCKET (RIGHT)SOCKET (RIGHT)
-
409471-12186 BULB (12V21W)BULB (12V21W)
-
535602-41G00 LAMP ASSY, FRNT TURNSIGNAL (LEFT) (INCL. 6 - 8)LAMP ASSY, FRNT TURNSIGNAL (LEFT) (INCL. 6 - 8)
-
635630-41G00 LAMP UNIT (LEFT)LAMP UNIT (LEFT)
-
735638-10G50 SOCKET (LEFT)SOCKET (LEFT)
-
809471-12186 BULB (12V21W)BULB (12V21W)
-
909132-04032 SCREW (4X20)SCREW (4X20)
-
1033652-21G10 CUSHION, FR TURN (40X20X5)CUSHION, FR TURN (40X20X5)
-
1194443-21H00 TAPE, FR TURNTAPE, FR TURN
-
1235603-14J30 LAMP ASSY, REAR TURNSIGNAL (RIGHT) (INCL. 13 - 19)LAMP ASSY, REAR TURNSIGNAL (RIGHT) (INCL. 13 - 19)
-
1335652-14J30 LENS (RIGHT)LENS (RIGHT)
-
1403211-0416A SCREWSCREW
-
1509471-12186 BULB (12V21W)BULB (12V21W)
-
1635658-41G00 SOCKET AND CORD (RIGHT)SOCKET AND CORD (RIGHT)
-
1735716-07A30 PLATEPLATE
-
1835653-47H00 GASKETGASKET
-
1903211-0412A SCREWSCREW
-
2035604-14J30 LAMP ASSY, REAR TURNSIGNAL (LEFT) (INCL. 21 - 27)LAMP ASSY, REAR TURNSIGNAL (LEFT) (INCL. 21 - 27)
-
2135672-14J30 LENS (LEFT)LENS (LEFT)
-
2203211-0416A SCREWSCREW
-
2309471-12186 BULB (12V21W)BULB (12V21W)
-
2435678-41G00 SOCKET AND CORD (LEFT)SOCKET AND CORD (LEFT)
-
2535716-07A30 PLATEPLATE
-
2635653-47H00 GASKETGASKET
-
2703211-0412A SCREWSCREW
-
2809148-04021 NUTNUT
-
2903541-0412A SCREWSCREW
-
3003511-0512A SCREWSCREW
-
3109148-05038 NUTNUT
-
3238610-03F00 RELAY ASSY, TURNSIGNAL LAMPRELAY ASSY, TURNSIGNAL LAMP
