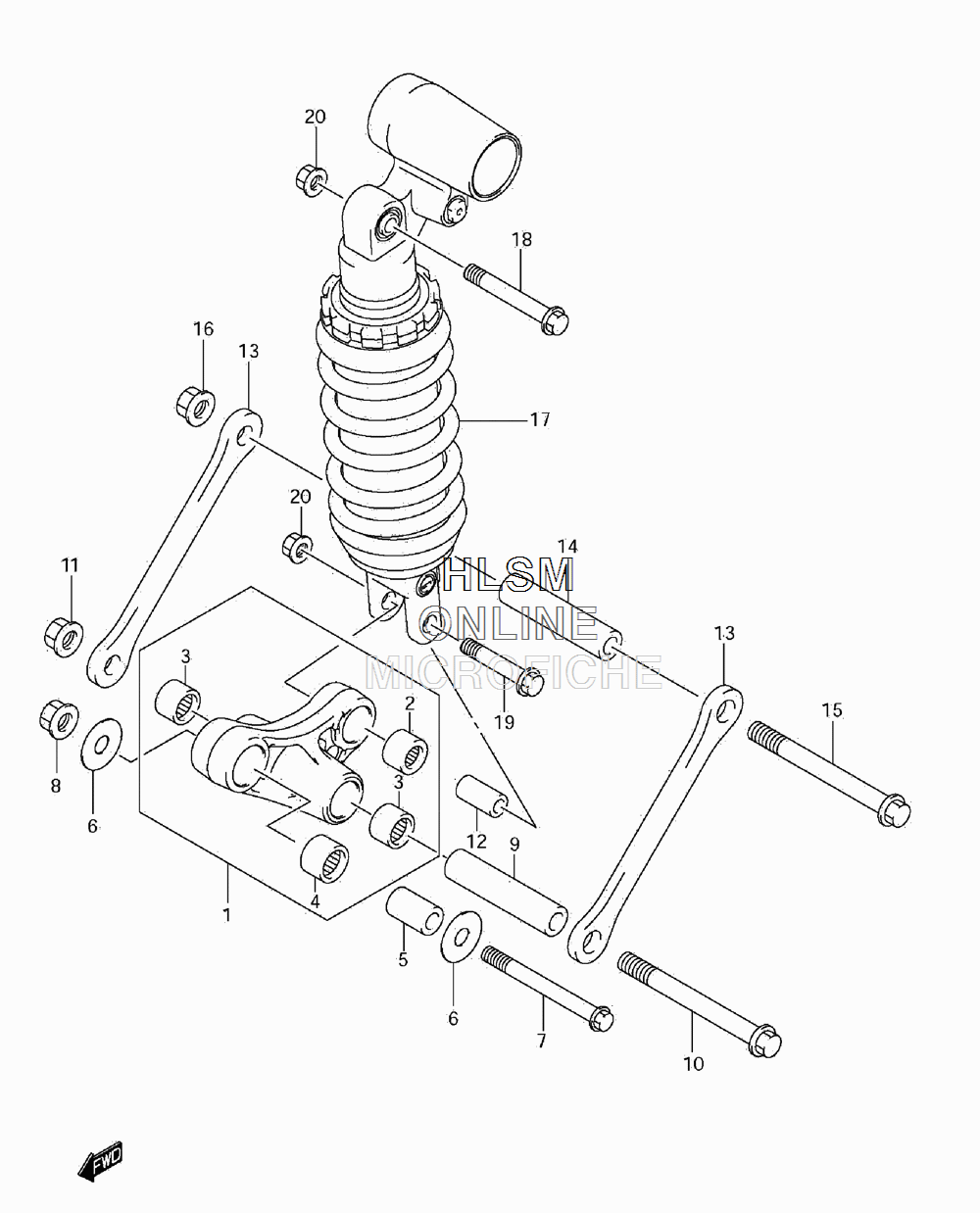

SUSPENSION - CUSHION LEVER W/ SHOCK (CANADA) для Suzuki GSX 1300R L1 - 2011 года выпуска`
-
№АртикулНазвание
-
162600-24831 LEVER SET, REAR CUSHION (INCL. 2 - 4)LEVER SET, REAR CUSHION (INCL. 2 - 4)
-
209263-20073 BEARING (20X27X30)BEARING (20X27X30)
-
309263-17037 BEARING (17X24X25)BEARING (17X24X25)
-
409263-17034 BEARING (17X24X26)BEARING (17X24X26)
-
562684-12C00 SPACER, FRONT (12X20X32)SPACER, FRONT (12X20X32)
-
608211-12301 WASHERWASHER
-
762658-19F00 BOLT, FRONT (12X78)BOLT, FRONT (12X78)
-
809159-12056 NUTNUT
-
962626-33D00 SPACER, CENTERSPACER, CENTER
-
1062621-33D10 BOLT, CENTERBOLT, CENTER
-
1109159-12056 NUTNUT
-
1262684-40A10 SPACER, REAR (10X17X30)SPACER, REAR (10X17X30)
-
1362641-24F00 ROD, REAR CUSHIONROD, REAR CUSHION
-
1462626-33D00 SPACER, RODSPACER, ROD
-
1562621-33D10 BOLT, RODBOLT, ROD
-
1609159-12056 NUTNUT
-
1762100-24F50 ABSORBER ASSY, REAR SHOCKABSORBER ASSY, REAR SHOCK
-
1809103-10033 BOLT (10X70)BOLT (10X70)
-
1909103-10143 BOLT (10X55)BOLT (10X55)
-
2009159-10115 NUTNUT
