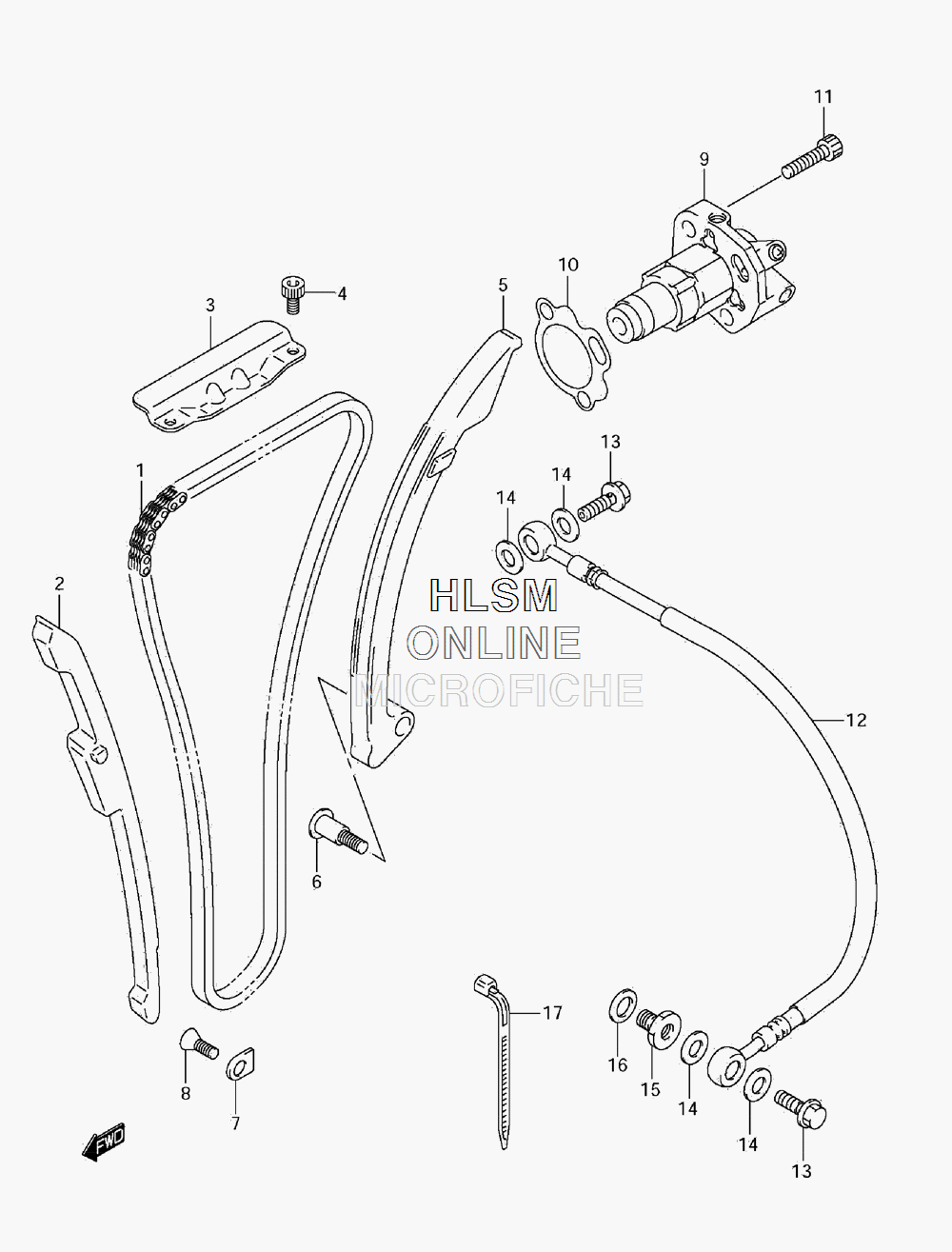

CAM CHAIN ASSY. W/ TENSIONER для Suzuki GSX 1300R L1 - 2011 года выпуска`
-
№АртикулНазвание
-
112760-24F01 CHAIN,CAM SHAFT DRIVE (128LE)CHAIN,CAM SHAFT DRIVE (128LE)
-
212771-15H00 GUIDE, CAM CHAIN NO.1GUIDE, CAM CHAIN NO.1
-
312782-24F01 GUIDE, CAM CHAIN NO.2GUIDE, CAM CHAIN NO.2
-
407130-0612A SCREWSCREW
-
512811-15H00 TENSIONER, CAM CHAINTENSIONER, CAM CHAIN
-
612812-31G00 BOLTBOLT
-
712773-24F00 RETAINER,CAM CHAIN GUIDE NO.1RETAINER,CAM CHAIN GUIDE NO.1
-
802122-0612A SCREWSCREW
-
912830-15H00 ADJUSTER SET, TENSIONERADJUSTER SET, TENSIONER
-
1012837-02H00 GASKET, TNSN ADJUSTERGASKET, TNSN ADJUSTER
-
1107130-0625A BOLTBOLT
-
1212835-15H00 HOSE, CAM CHAIN TENSIONERHOSE, CAM CHAIN TENSIONER
-
1312838-15H00 BOLTBOLT
-
1409168-08034 GASKET (7.8X13.5X1.2)GASKET (7.8X13.5X1.2)
-
1512839-15H00 PLUGPLUG
-
1609168-14002 GASKET (13.8X18.8X4.8)GASKET (13.8X18.8X4.8)
-
1709407-18402 CLAMP (L:165)CLAMP (L:165)
