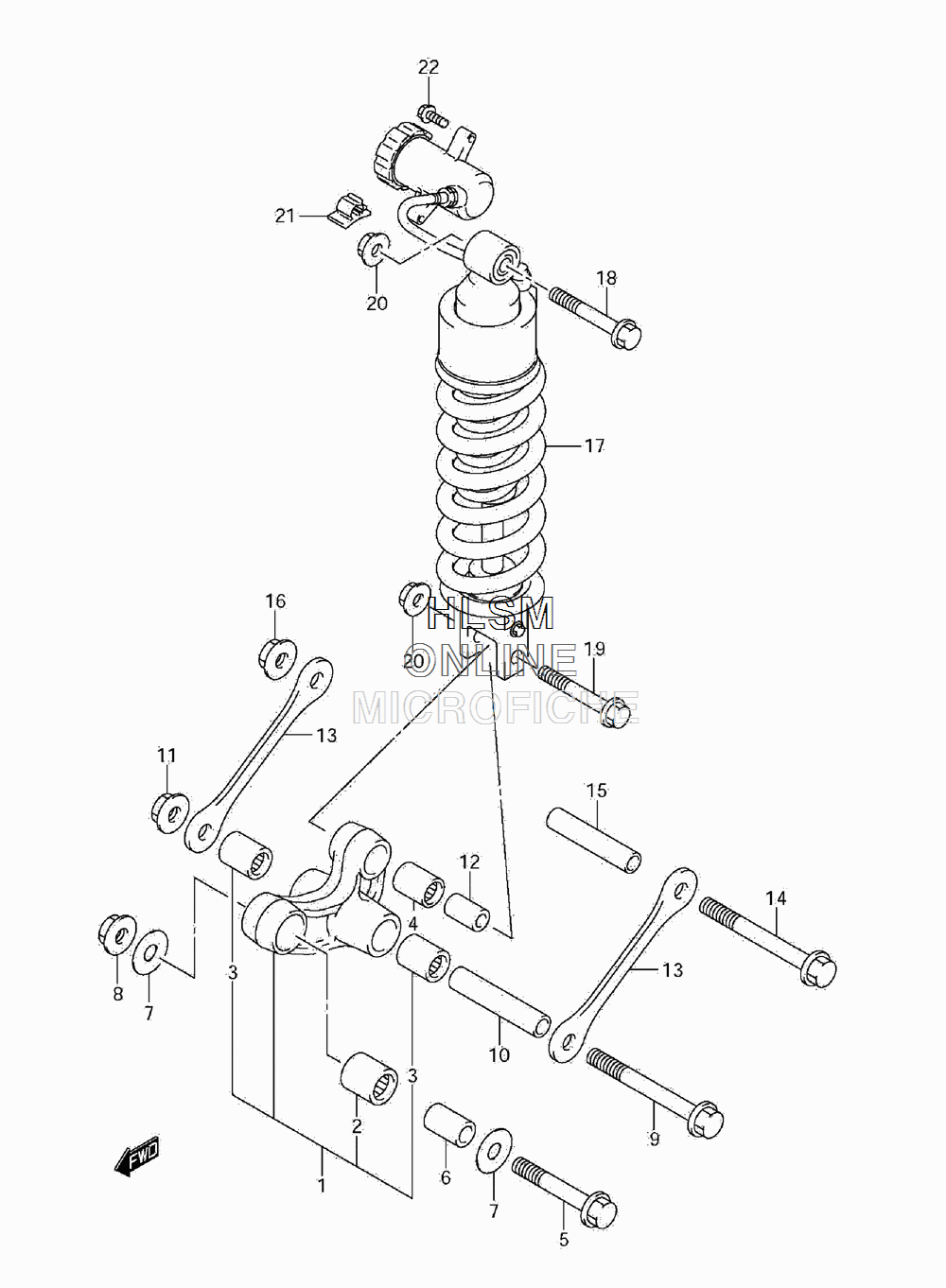

SUSPENSION - CUSHION LEVER W/ SHOCK (CALIF ONLY) для Suzuki DL650A ABS L1 - 2011 года выпуска`
-
№АртикулНазвание
-
162600-06870 LEVER SET, REAR CUSHION (INCL. 2 - 3)LEVER SET, REAR CUSHION (INCL. 2 - 3)
-
209263-20073 BEARING (20X27X30)BEARING (20X27X30)
-
309263-17037 BEARING (17X24X25)BEARING (17X24X25)
-
409263-17034 BEARING (17X24X26)BEARING (17X24X26)
-
562658-19F00 BOLT, FRONT (12X78)BOLT, FRONT (12X78)
-
662684-12C00 SPACER, FRONT (12X78)SPACER, FRONT (12X78)
-
709160-12037 WASHER (12X34X1)WASHER (12X34X1)
-
809159-12056 NUTNUT
-
962621-19D00 BOLT, CENTER (12X111)BOLT, CENTER (12X111)
-
1009180-12122 SPACER (12X17X85)SPACER (12X17X85)
-
1109159-12056 NUTNUT
-
1262684-40A10 SPACER, REAR (10X17X30)SPACER, REAR (10X17X30)
-
1362641-06G00 ROD, REAR CUSHIONROD, REAR CUSHION
-
1462621-19D00 BOLT, ROD (12X111)BOLT, ROD (12X111)
-
1509180-12122 SPACER (12X17X85)SPACER (12X17X85)
-
1609159-12056 NUTNUT
-
1762100-06G70-13L ABSORBER ASSY, REAR SHOCK (SILVER)ABSORBER ASSY, REAR SHOCK (SILVER)
-
1809103-10033 BOLT (10X70)BOLT (10X70)
-
1909103-10143 BOLT (10X55)BOLT (10X55)
-
2009159-10115 NUTNUT
-
2109403-10313 CLAMPCLAMP
-
2201550-0616A BOLT, TANKBOLT, TANK
