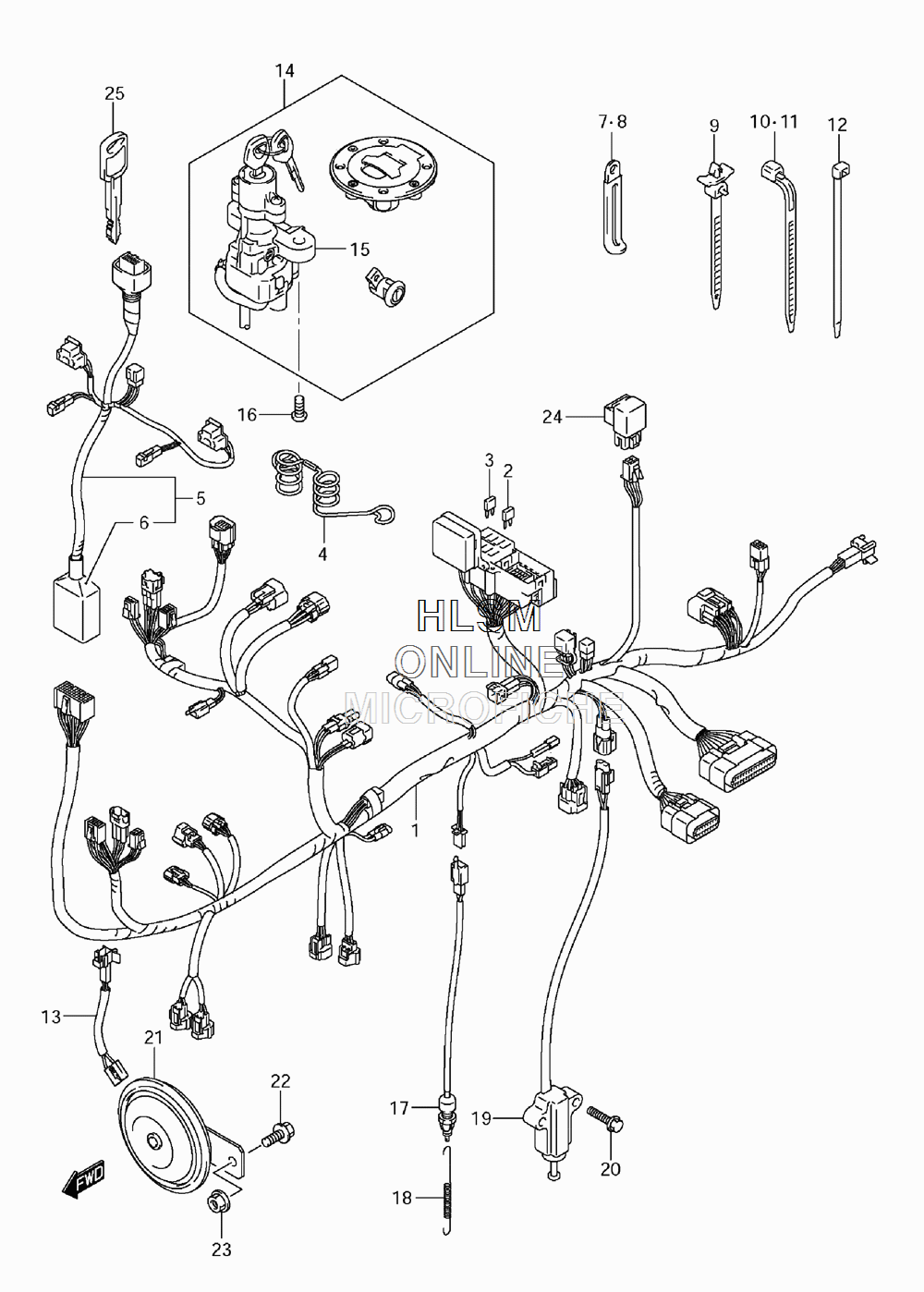

ELECTRICAL - WIRING HARNESS (CALIF ONLY) для Suzuki DL650 L1 - 2011 года выпуска`
-
№АртикулНазвание
-
136610-27GF0 HARNESS, WIRING, NO.1HARNESS, WIRING, NO.1
-
209481-10501 FUSE (10A)FUSE (10A)
-
309481-15501 FUSE (15A)FUSE (15A)
-
436619-06G01 GUIDE, WIRING HARNESSGUIDE, WIRING HARNESS
-
536620-27G80 HARNESS, WIRING, NO.2 (INC 6)HARNESS, WIRING, NO.2 (INC 6)
-
636618-18G10 COVER, CONNECTORCOVER, CONNECTOR
-
709404-06429 CLAMP (L:45)CLAMP (L:45)
-
809404-06433 CLAMP (L:80)CLAMP (L:80)
-
909407-14408 CLAMP (L:120)CLAMP (L:120)
-
1009407-11401 CLAMP (L:95)CLAMP (L:95)
-
1109407-14403 CLAMP (L:125)CLAMP (L:125)
-
1209407-14407 CLAMP (L:145)CLAMP (L:145)
-
1336852-06G00 WIRE, HORN LEADWIRE, HORN LEAD
-
1437000-27870 LOCK SET (INC 15)LOCK SET (INC 15)
-
1537100-27G00 LOCK ASSY, STEERINGLOCK ASSY, STEERING
-
1609139-08016 BOLT (8X20)BOLT (8X20)
-
1737740-45D00 SWITCH ASSY, STOP LAMPSWITCH ASSY, STOP LAMP
-
1809443-06012 SPRINGSPRING
-
1937840-06G00 SWITCH ASSY, SIDE STANDSWITCH ASSY, SIDE STAND
-
2001550-0616B BOLTBOLT
-
2138500-27G00 HORN ASSYHORN ASSY
-
2201550-0812B BOLTBOLT
-
2308316-1008B NUTNUT
-
2438740-24X50 RELAY ASSY, FUEL PUMPRELAY ASSY, FUEL PUMP
-
2537146-33E00 KEY, BLANKKEY, BLANK
