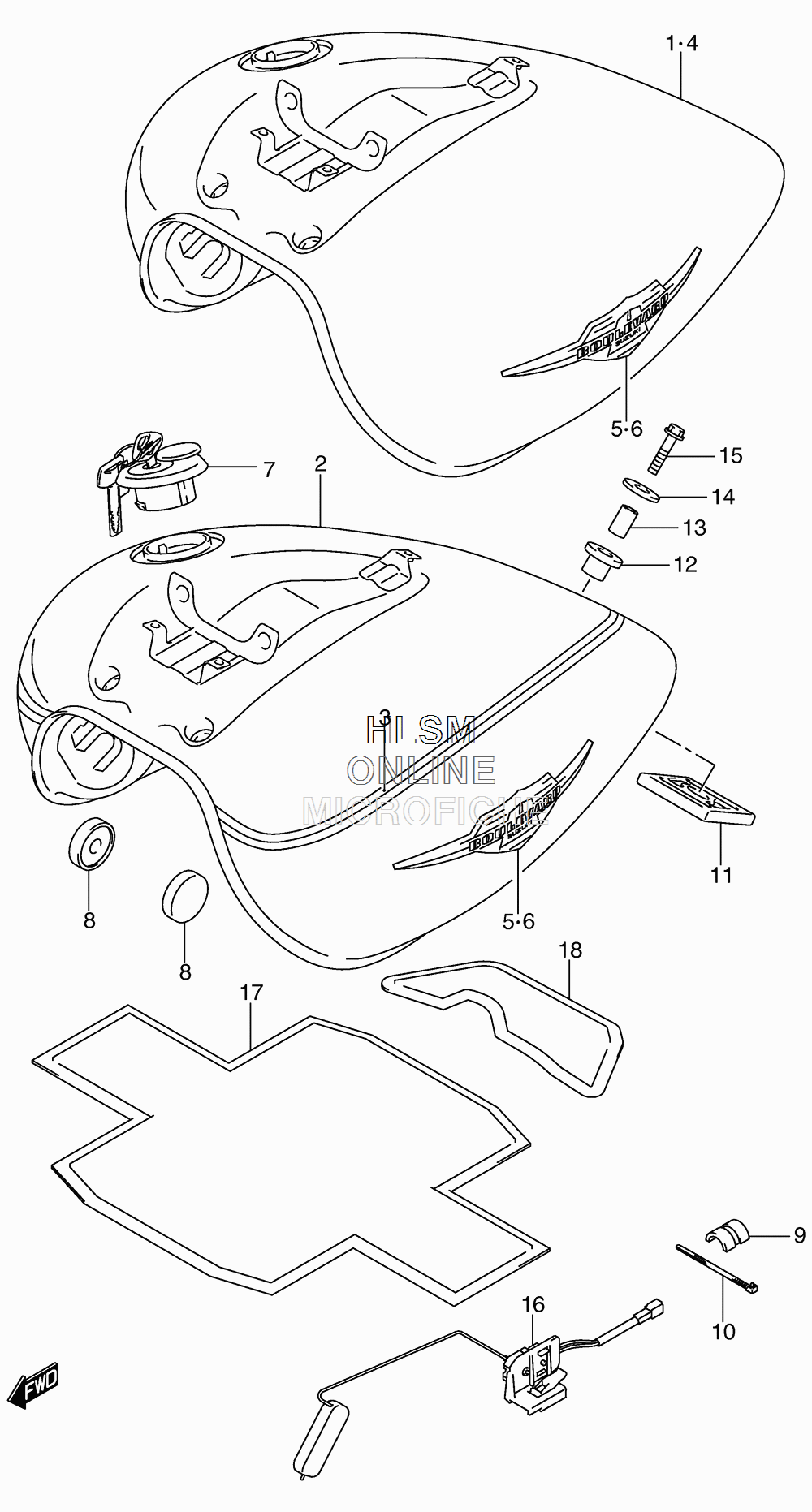

FUEL TANK для Suzuki VL800C L0 - 2010 года выпуска

№

Артикул

Название
1

44100-43H00-YAY TANK ASSY, FUEL (YAY - BLACK) (EXCEPT CALIF.)

TANK ASSY, FUEL (YAY - BLACK) (EXCEPT CALIF.)
1

44100-43H00-YKZ TANK ASSY, FUEL (YKZ - BLUE) (EXCEPT CALIF.)

TANK ASSY, FUEL (YKZ - BLUE) (EXCEPT CALIF.)
1

44100-43H20-YAY TANK ASSY, FUEL (YAY - BLACK) (CALIF ONLY)

TANK ASSY, FUEL (YAY - BLACK) (CALIF ONLY)
1

44100-43H20-YKZ TANK ASSY, FUEL (YKZ - BLUE) (CALIF ONLY)

TANK ASSY, FUEL (YKZ - BLUE) (CALIF ONLY)
2

44100-43HD0-HBZ TANK ASSY, FUEL (HBZ - BLACK/RED) (EXCEPT CALIF.)

TANK ASSY, FUEL (HBZ - BLACK/RED) (EXCEPT CALIF.)
2

44100-43HD0-HDV TANK ASSY, FUEL (HDV - BLUE/GREEN)

TANK ASSY, FUEL (HDV - BLUE/GREEN)
4

44100-43HA0-YAY TANK ASSY, FUEL (YAY BLACK FOR HBV) (EXCEPT CALIF.)

TANK ASSY, FUEL (YAY BLACK FOR HBV) (EXCEPT CALIF.)
4

44100-43HA0-YMK TANK ASSY, FUEL (YMK - RED FOR HBY) (EXCEPT CALIF.)

TANK ASSY, FUEL (YMK - RED FOR HBY) (EXCEPT CALIF.)
4

44100-43HC0-YAY TANK ASSY, FUEL (YAY BLACK FOR HBV) (CALIF ONLY)

TANK ASSY, FUEL (YAY BLACK FOR HBV) (CALIF ONLY)
4

44100-43HC0-YMK TANK ASSY, FUEL (YMK - RED FOR HBY) (CALIF ONLY)

TANK ASSY, FUEL (YMK - RED FOR HBY) (CALIF ONLY)
5

68111-41F31 EMBLEM, RH

EMBLEM, RH
6

68121-41F31 EMBLEM, LH

EMBLEM, LH
7

44200-41830 CAP SET, FUEL TANK (EXCEPT CALIF.)

CAP SET, FUEL TANK (EXCEPT CALIF.)
7

44200-41840 CAP SET, FUEL TANK (CALIF. ONLY)

CAP SET, FUEL TANK (CALIF. ONLY)
8

09329-10007 CUSHION, FRONT

CUSHION, FRONT
9

44541-14F10 CUSHION, SIDE

CUSHION, SIDE
10

09407-25402 CLAMP

CLAMP
11

44542-41F00 CUSHION, REAR LOWER

CUSHION, REAR LOWER
12

44541-41F01 CUSHION, REAR UPPER

CUSHION, REAR UPPER
13

09180-08057 SPACER

SPACER
14

09160-08146 WASHER

WASHER
15

01550-0835A BOLT

BOLT
16

34810-41F11 GUAGE ASSY, FUEL TANK

GUAGE ASSY, FUEL TANK
17

44192-39G00 SHIELD, HEAT NO.1

SHIELD, HEAT NO.1
18

44191-43H00 SHIELD, HEAT NO.2

SHIELD, HEAT NO.2
