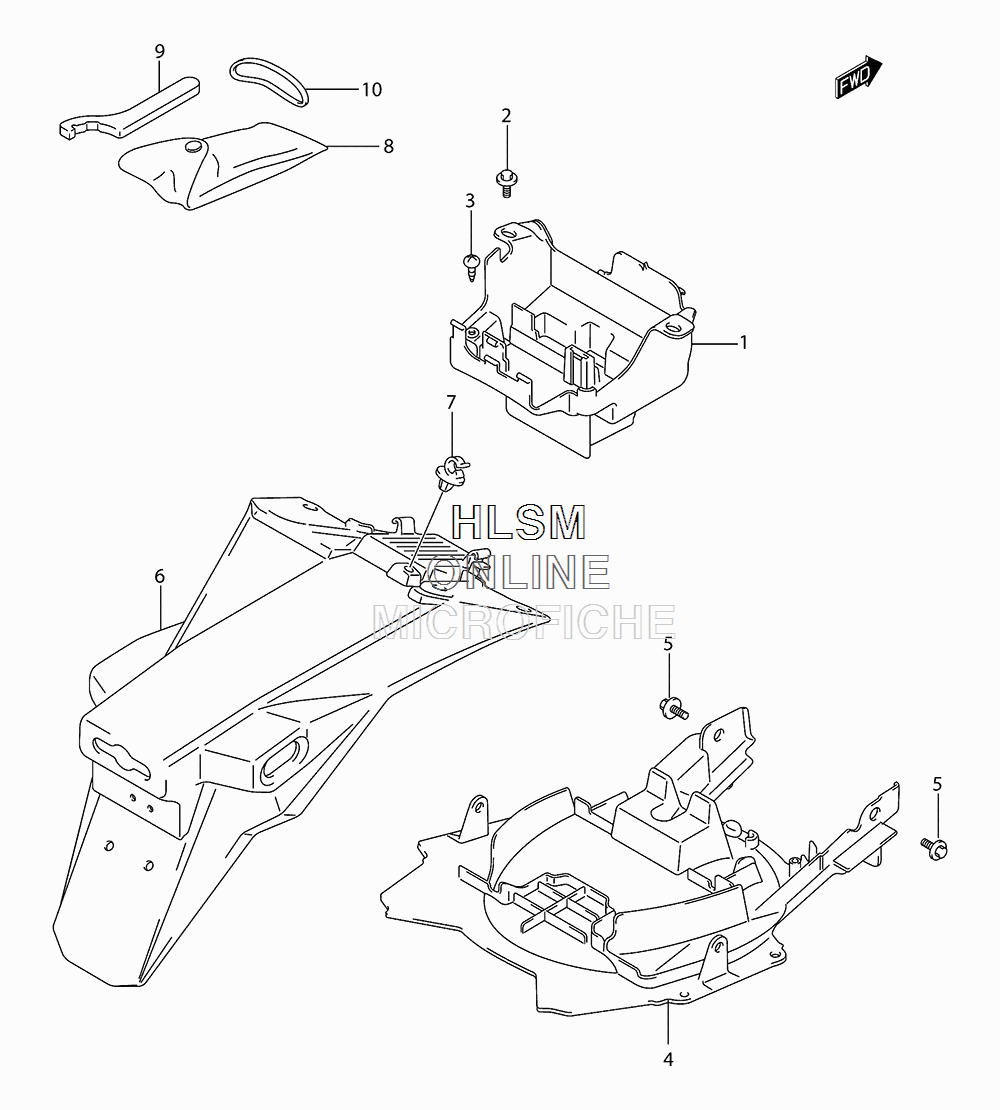

FENDER - REAR для Suzuki SV650S L0 - 2010 года выпуска
-
№АртикулНазвание
-
147431-16GC0 HOLDER, BATTERYHOLDER, BATTERY
-
263161-43E00 BOLTBOLT
-
303541-0516B SCREWSCREW
-
463111-16GC0 FENDER, REAR FRONTFENDER, REAR FRONT
-
509116-06210 BOLTBOLT
-
663112-16GC0 FENDER, REAR REARFENDER, REAR REAR
-
709403-07325 CLAMPCLAMP
-
809800-21035 TOOL ASSYTOOL ASSY
-
909822-00004 CLAMP, WRENCHCLAMP, WRENCH
-
1009280-61002 BAND, TOOLBAND, TOOL
