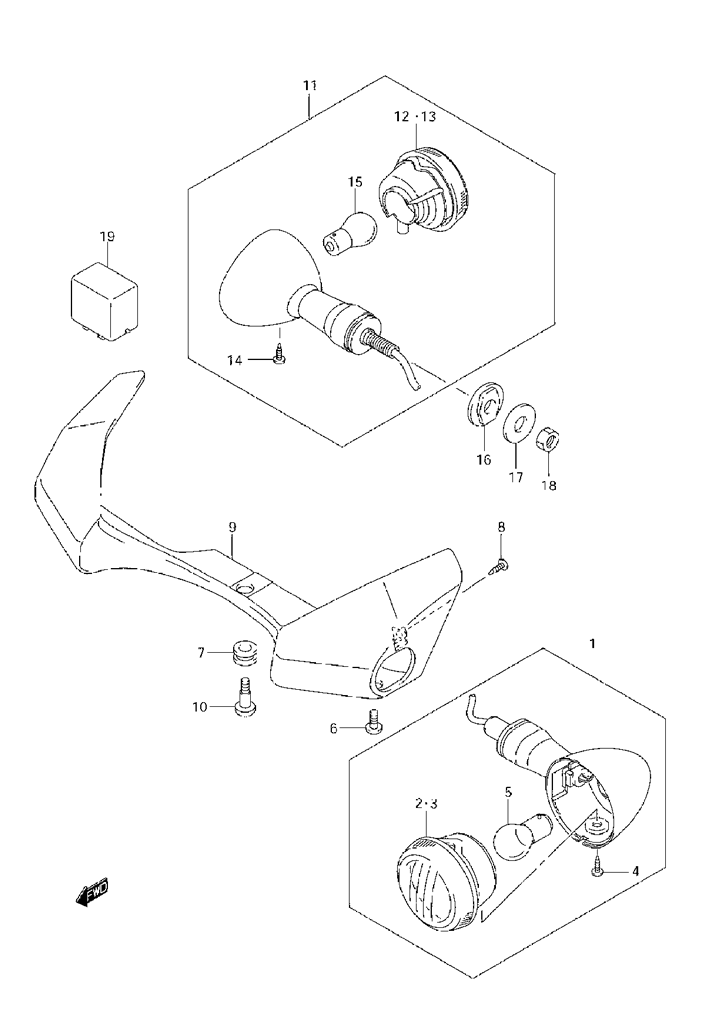

TURN SIGNAL ASSY. - FRONT для Suzuki VZR1800N K9 M109RZ LTD - 2009 года выпуска

  • №
    Артикул
    Название
  • 1
    35601-38AF0 LAMP ASSY, FRONT TURNSIGNAL, RIGHT (INCL. 2-5)
    LAMP ASSY, FRONT TURNSIGNAL, RIGHT (INCL. 2-5)
  • 1
    35602-38AF0 LAMP ASSY, FRONT TURNSIGNAL, LEFT (INCL. 2-5)
    LAMP ASSY, FRONT TURNSIGNAL, LEFT (INCL. 2-5)
  • 2
    35610-38AA0 LENS
    LENS
  • 3
    35630-38AA0 LENS
    LENS
  • 4
    35623-38AA0 SCREW (4X10)
    SCREW (4X10)
  • 5
    09471-12083 BULB (12V21/5W)
    BULB (12V21/5W)
  • 6
    02142-0612A SCREW, FR TURNSIGNAL LAMP
    SCREW, FR TURNSIGNAL LAMP
  • 7
    09320-09016 CUSHION, FR TURNSIGNAL COVER
    CUSHION, FR TURNSIGNAL COVER
  • 8
    03541-0510A SCREW, FR TURNSIGNAL LAMP STAY
    SCREW, FR TURNSIGNAL LAMP STAY
  • 9
    35641-48G00 STAY, FR TURNSIGNAL
    STAY, FR TURNSIGNAL
  • 10
    09139-06146 SCREW, FR TURNSIGNAL COVER
    SCREW, FR TURNSIGNAL COVER
  • 11
    35603-48EC0 LAMP ASSY, REAR TURNSIGNAL, RIGHT (INCL. 12-15)
    LAMP ASSY, REAR TURNSIGNAL, RIGHT (INCL. 12-15)
  • 11
    35604-38AE0 LAMP ASSY, REAR TURNSIGNAL, LEFT (INCL. 12-15)
    LAMP ASSY, REAR TURNSIGNAL, LEFT (INCL. 12-15)
  • 12
    35630-38AE1 LENS
    LENS
  • 13
    35610-38AE1 LENS
    LENS
  • 14
    35623-38AA0 SCREW (4X10)
    SCREW (4X10)
  • 15
    09471-12045 BULB (12V21W)
    BULB (12V21W)
  • 16
    35695-17C00 SPACER, REAR TURNSIGNAL LAMP
    SPACER, REAR TURNSIGNAL LAMP
  • 17
    09160-10501 WASHER, REAR TURNSIGNAL
    WASHER, REAR TURNSIGNAL
  • 18
    08310-0010A NUT, REAR TURNSIGNAL LAMP
    NUT, REAR TURNSIGNAL LAMP
  • 19
    38610-03F00 RELAY ASSY, TURNSIGNAL LAMP
    RELAY ASSY, TURNSIGNAL LAMP
