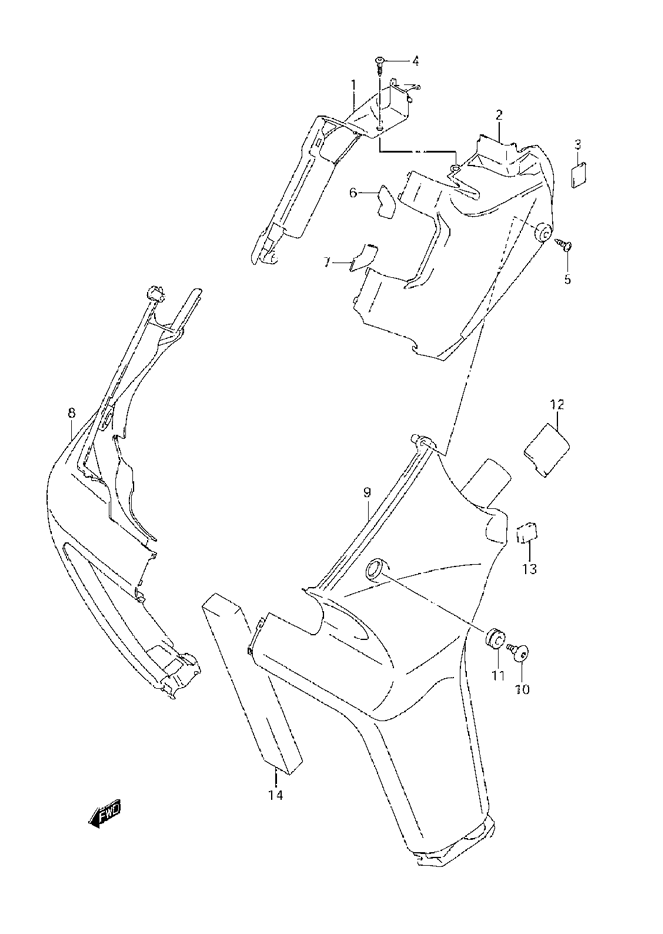

FRAME HEAD COVER для Suzuki VZR1800 K9 M109R - 2009 года выпуска

№

Артикул

Название
1

47350-48G00-YAY COVER, FRAME HEAD RIGHT HAND (BLACK) (YAY)

COVER, FRAME HEAD RIGHT HAND (BLACK) (YAY)
1

47350-48G00-YMD COVER, FRAME HEAD RIGHT HAND (SILVER) (YMD)

COVER, FRAME HEAD RIGHT HAND (SILVER) (YMD)
1

47350-48G00-YMK COVER, FRAME HEAD RIGHT HAND (RED) (YMK)

COVER, FRAME HEAD RIGHT HAND (RED) (YMK)
2

47361-48G00-YAY COVER, FRAME HEAD LEFT HAND (BLACK) (YAY)

COVER, FRAME HEAD LEFT HAND (BLACK) (YAY)
2

47361-48G00-YMD COVER, FRAME HEAD LEFT HAND (SILVER) (YMD)

COVER, FRAME HEAD LEFT HAND (SILVER) (YMD)
2

47361-48G00-YMK COVER, FRAME HEAD LEFT HAND (RED) (YMK)

COVER, FRAME HEAD LEFT HAND (RED) (YMK)
3

17798-39G00 CUSHION

CUSHION
4

09409-06314-5PK CLIP (BLACK)

CLIP (BLACK)
5

03541-0516A SCREW

SCREW
6

47352-48G00 TAPE, UPPER LEFT HAND

TAPE, UPPER LEFT HAND
7

47353-48G01 TAPE, LOWER LEFT HAND

TAPE, LOWER LEFT HAND
8

47551-48G00-YAY COVER, FRAME BODY RIGHT HAND (BLACK) (YAY)

COVER, FRAME BODY RIGHT HAND (BLACK) (YAY)
8

47551-48G00-YMD COVER, FRAME BODY RIGHT HAND (SILVER) (YMD)

COVER, FRAME BODY RIGHT HAND (SILVER) (YMD)
8

47551-48G00-YMK COVER, FRAME BODY RIGHT HAND (RED) (YMK)

COVER, FRAME BODY RIGHT HAND (RED) (YMK)
9

47561-48G00-YAY COVER, FRAME BODY LEFT HAND (BLACK) (YAY)

COVER, FRAME BODY LEFT HAND (BLACK) (YAY)
9

47561-48G00-YMD COVER, FRAME BODY LEFT HAND (SILVER) (YMD)

COVER, FRAME BODY LEFT HAND (SILVER) (YMD)
9

47561-48G00-YMK COVER, FRAME BODY LEFT HAND (RED) (YMK)

COVER, FRAME BODY LEFT HAND (RED) (YMK)
10

09139-06126 SCREW

SCREW
11

09320-09016 CUSHION

CUSHION
12

63191-25C00 CUSHION, UPPER

CUSHION, UPPER
13

17798-39G00 CUSHION, CENTER

CUSHION, CENTER
14

47552-48G00 CUSHION, LOWER RIGHT HAND

CUSHION, LOWER RIGHT HAND
