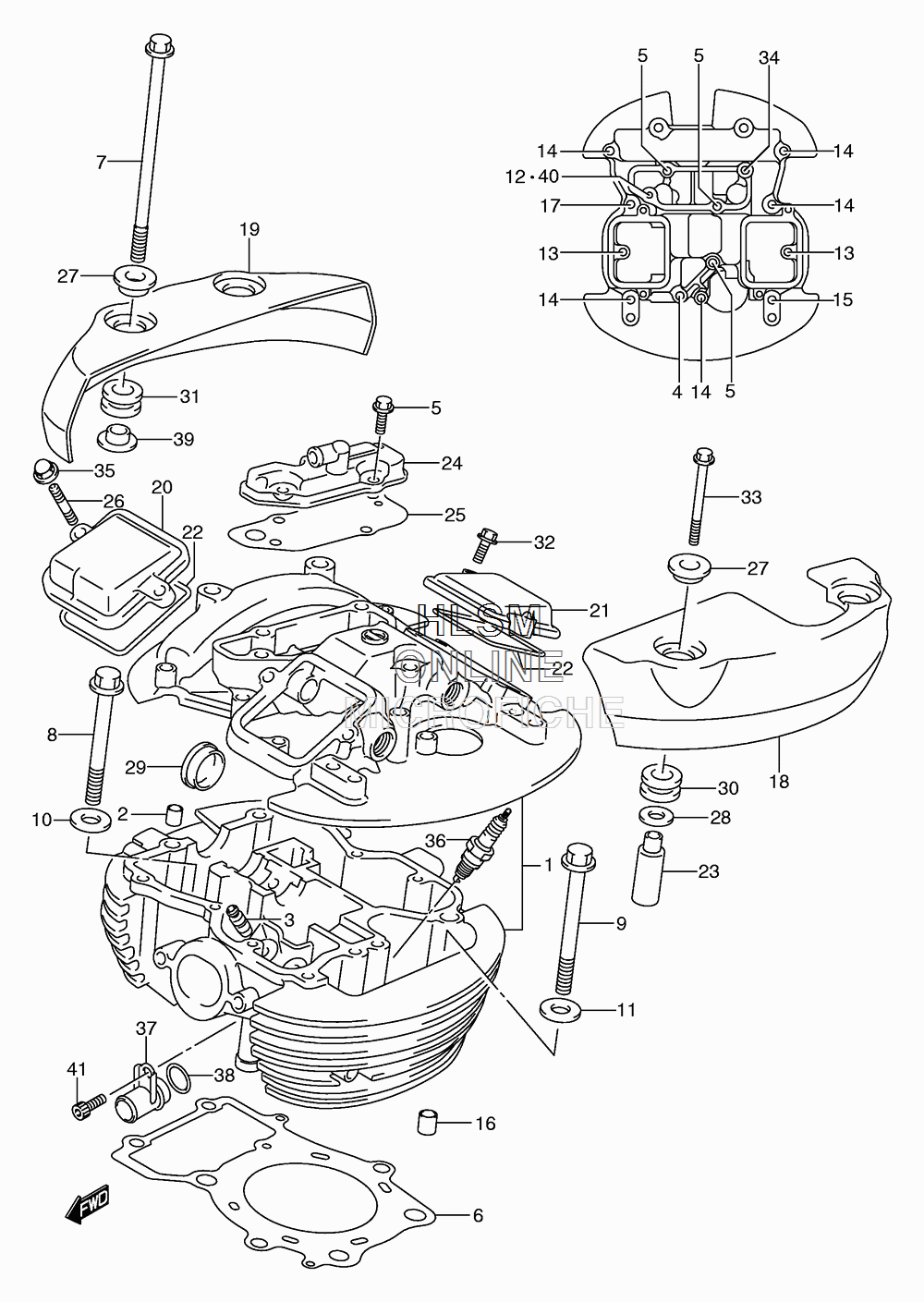

CYLINDER HEAD (REAR) для Suzuki VL800C K9 - 2009 года выпуска

№

Артикул

Название
1

11103-39G10 HEAD ASSY, CYLINDER REAR (EXCEPT CALIF.)

HEAD ASSY, CYLINDER REAR (EXCEPT CALIF.)
1

11103-39G00 HEAD ASSY, CYLINDER REAR (CALIF ONLY)

HEAD ASSY, CYLINDER REAR (CALIF ONLY)
2

09206-11004 ...PIN (11X14)

...PIN (11X14)
3

11115-41F70 GUIDE, VALVE (OS 0.3) (OPTIONAL)

GUIDE, VALVE (OS 0.3) (OPTIONAL)
4

09103-06304 BOLT (6X50)

BOLT (6X50)
5

09103-06305 BOLT (6X55)

BOLT (6X55)
6

11142-41F00 GASKET, CYLINDER HEAD REAR

GASKET, CYLINDER HEAD REAR
7

09103-08370 BOLT (L:250)

BOLT (L:250)
8

09103-10133 BOLT (10X155)

BOLT (10X155)
9

09103-10134 BOLT (10X165)

BOLT (10X165)
10

09160-08130 WASHER (8.5X24X1.6)

WASHER (8.5X24X1.6)
11

09160-10039 WASHER (10.5X22X2.3)

WASHER (10.5X22X2.3)
12

01547-0655A BOLT (L:55)

BOLT (L:55)
13

01550-0625A BOLT (L:25)

BOLT (L:25)
14

01550-0630A BOLT (L:30)

BOLT (L:30)
15

01550-0640A BOLT (L:40)

BOLT (L:40)
16

04211-13189 KNOCK PIN

KNOCK PIN
17

07120-0630B BOLT (L:30)

BOLT (L:30)
18

11173-41FA0 CAP, CYLINDER HEAD COVER RR

CAP, CYLINDER HEAD COVER RR
19

11174-41F00 CAP, CYLINDER HEAD COVER RR

CAP, CYLINDER HEAD COVER RR
20

11175-38A11 CAP, INSPECTION INTAKE

CAP, INSPECTION INTAKE
21

11176-38A11 CAP, INSPECTION EXHAUST

CAP, INSPECTION EXHAUST
22

11177-38A00 GASKET, INSPECTION CAP

GASKET, INSPECTION CAP
23

11179-10F10 SPACER, HEAD COVER CAP

SPACER, HEAD COVER CAP
24

11186-41FB0 COVER, BREATHER

COVER, BREATHER
25

11187-41F20 GASKET, BREATHER COVER

GASKET, BREATHER COVER
26

09108-06102 BOLT, INSPECTION CAP STUD

BOLT, INSPECTION CAP STUD
27

09160-06084 WASHER, HEAD COVER CAP UPPER

WASHER, HEAD COVER CAP UPPER
28

09160-09016 WASHER, HEAD COVER CAP LOWER

WASHER, HEAD COVER CAP LOWER
29

09241-30004 PLUG, CYLINDER HEAD

PLUG, CYLINDER HEAD
30

09320-09016 CUSHION, HEAD COVER CAP

CUSHION, HEAD COVER CAP
31

09320-13015 CUSHION, HEAD COVER BOLT

CUSHION, HEAD COVER BOLT
32

01547-0620A BOLT, INSPECTION CAP

BOLT, INSPECTION CAP
33

01547-06557 BOLT, HEAD COVER CAP

BOLT, HEAD COVER CAP
34

01550-0620A BOLT, BREATHER COVER

BOLT, BREATHER COVER
35

09159-06093 NUT, INSPECTION CAP

NUT, INSPECTION CAP
36

09482-00354 SPARK PLUG, DPR7EA-9 (NGK) (EXCEPT CALIF)

SPARK PLUG, DPR7EA-9 (NGK) (EXCEPT CALIF)
36

09482-00398 SPARK PLUG, DR7EA (NGK) (CALIF ONLY)

SPARK PLUG, DR7EA (NGK) (CALIF ONLY)
36

09482-00222 SPARK PLUG, X22ESR-U (ND) (CALIF ONLY)

SPARK PLUG, X22ESR-U (ND) (CALIF ONLY)
36

09482-00330 SPARK PLUG, DPR9EA-9 (NGK) (OPTIONAL) (EXCEPT CALIF)

SPARK PLUG, DPR9EA-9 (NGK) (OPTIONAL) (EXCEPT CALIF)
36

09482-00331 SPARK PLUG, X27EPR-U9 (ND (OPTIONAL) (EXCEPT CALIF)

SPARK PLUG, X27EPR-U9 (ND (OPTIONAL) (EXCEPT CALIF)
36

09482-00334 SPARK PLUG, DPR8EA-9 (NGK) (OPTIONAL) (EXCEPT CALIF)

SPARK PLUG, DPR8EA-9 (NGK) (OPTIONAL) (EXCEPT CALIF)
36

09482-00335 SPARK PLUG, X24EPR-U9 (ND) (OPTIONAL) (EXCEPT CALIF)

SPARK PLUG, X24EPR-U9 (ND) (OPTIONAL) (EXCEPT CALIF)
36

09482-00223 SPARK PLUG, X24ESR-U (ND) (OPTIONAL) (CALIF ONLY)

SPARK PLUG, X24ESR-U (ND) (OPTIONAL) (CALIF ONLY)
36

09482-00224 SPARK PLUG, X27ESR-U (ND) (OPTIONAL) (CALIF ONLY)

SPARK PLUG, X27ESR-U (ND) (OPTIONAL) (CALIF ONLY)
36

09482-00399 SPARK PLUG, DR8EA (NGK) (OPTIONAL) (CALIF ONLY)

SPARK PLUG, DR8EA (NGK) (OPTIONAL) (CALIF ONLY)
36

09482-00400 SPARK PLUG, DR9EA (NGK) (OPTIONAL) (CALIF ONLY)

SPARK PLUG, DR9EA (NGK) (OPTIONAL) (CALIF ONLY)
37

17891-41F10 UNION, CYLINDER HEAD JOINT

UNION, CYLINDER HEAD JOINT
38

09280-16005 O RING

O RING
39

09301-08007 BUSH, HEAD COVER BOLT

BUSH, HEAD COVER BOLT
40

09168-06023 GASKET, 5.8X13X1.2

GASKET, 5.8X13X1.2
41

07130-0612B BOLT, JOINT UNION

BOLT, JOINT UNION
