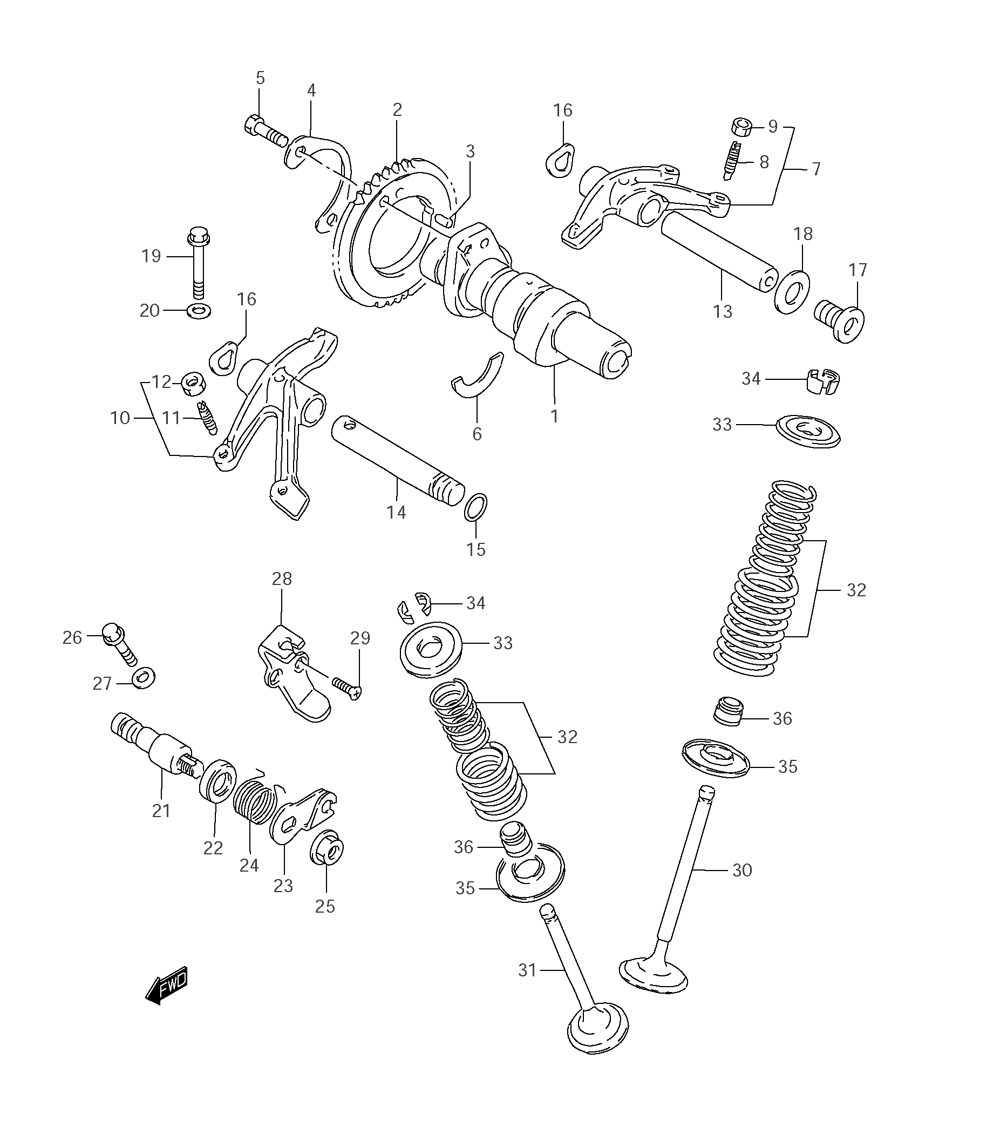

CAMSHAFT W/ VALVES для Suzuki LS650 K9 - 2009 года выпуска
-
№АртикулНазвание
-
112711-24B11 CAM SHAFTCAM SHAFT
-
212741-24B00 SPROCKET (NO. OF TEETH: 38)SPROCKET (NO. OF TEETH: 38)
-
309261-05009 PINPIN
-
412747-44001 WASHERWASHER
-
509111-06053 BOLT (6X16)BOLT (6X16)
-
609390-25003 C RINGC RING
-
712840-24B10 ARM, VALVE ROCKER INTAKEARM, VALVE ROCKER INTAKE
-
812842-32411 ...SCREW...SCREW
-
912843-32400 ...NUT...NUT
-
1012850-24B10 ARM, VALVE ROCKER EXHAUSTARM, VALVE ROCKER EXHAUST
-
1112842-32411 ...SCREW...SCREW
-
1212843-32400 ...NUT...NUT
-
1312861-12D00 SHAFT, ROCKER ARM INTAKE LENGTH: 73SHAFT, ROCKER ARM INTAKE LENGTH: 73
-
1412871-14A00 SHAFT, ROCKER ARM EXHAUST LENGTH: 78.5SHAFT, ROCKER ARM EXHAUST LENGTH: 78.5
-
1509280-09005 O RING (DIAMETER: 1.9, INSIDE DIAMETER: 8.6)O RING (DIAMETER: 1.9, INSIDE DIAMETER: 8.6)
-
1609164-12018 WASHERWASHER
-
1709248-14005 PLUG, ROCKER ARM SHAFTPLUG, ROCKER ARM SHAFT
-
1809168-14002 GASKETGASKET
-
1902162-0630B BOLT, SHAFT EXHAUSTBOLT, SHAFT EXHAUST
-
2009168-06023 GASKETGASKET
-
2112941-24B01 SHAFT, DECOMPSHAFT, DECOMP
-
2209282-10012 OIL SEAL (10X20X6)OIL SEAL (10X20X6)
-
2312942-24B00 LEVER, DECOMP SHAFTLEVER, DECOMP SHAFT
-
2409448-17020 SPRINGSPRING
-
2508316-1008B NUT (GREEN)NUT (GREEN)
-
2609103-06090 BOLT (6X16)BOLT (6X16)
-
2709168-06023 GASKETGASKET
-
2812944-24B00 HOLDER, DECOMP CABLEHOLDER, DECOMP CABLE
-
2902122-0510B SCREWSCREW
-
3012911-24B01 VALVE, INTAKEVALVE, INTAKE
-
3112912-24B01 VALVE, EXHAUSTVALVE, EXHAUST
-
3212920-37402 SPRING SET, VALVESPRING SET, VALVE
-
3312931-45001 RETAINER, SPRINGRETAINER, SPRING
-
3412932-82000 COTTER, VALVECOTTER, VALVE
-
3512933-37400 SEAT, SPRINGSEAT, SPRING
-
3609289-07002 OIL SEAL (7X14.4X9)OIL SEAL (7X14.4X9)
