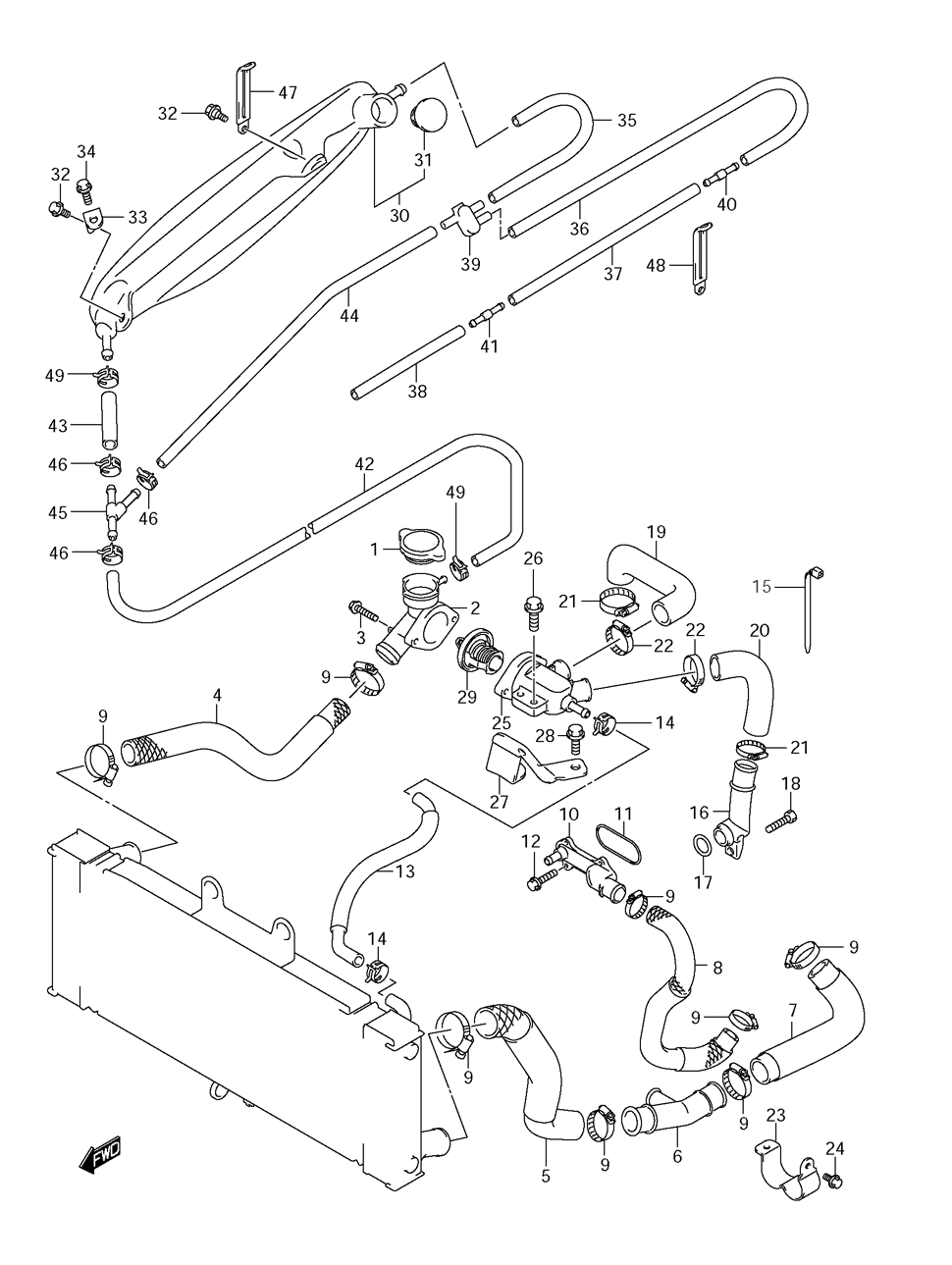

RADIATOR HOSE W/ RESERVOIR для Suzuki GSF1250S K9 BANDIT - 2009 года выпуска`
-
№АртикулНазвание
-
117730-14G00 CAP, RADIATORCAP, RADIATOR
-
217791-18H00 CONDUCTIONCONDUCTION
-
301550-0620A BOLTBOLT
-
417851-18H00 HOSE, RADIATOR INLETHOSE, RADIATOR INLET
-
517852-18H00 HOSE, RADIATOR OUTLETHOSE, RADIATOR OUTLET
-
617890-18H00 PIPE, RADIATOR OUTLETPIPE, RADIATOR OUTLET
-
717853-18H00 HOSE, WATER PUMP INLETHOSE, WATER PUMP INLET
-
817854-18H00 HOSE, WATER PUMP OUTLETHOSE, WATER PUMP OUTLET
-
909402-38512 CLAMPCLAMP
-
1017861-18H00 CONNECTOR, CYLINDER INLETCONNECTOR, CYLINDER INLET
-
1117863-18H00 O RINGO RING
-
1201547-0620A BOLTBOLT
-
1317856-18H00 HOSE, WATER BYPASSHOSE, WATER BYPASS
-
1409401-12409 CLIPCLIP
-
1509407-18402 CLAMPCLAMP
-
1617880-18H00 PIPE, CYLINDER OUTLETPIPE, CYLINDER OUTLET
-
1709280-18009 O RINGO RING
-
1807130-0612A BOLTBOLT
-
1917857-18H00 HOSE, CYLINDER OUTLET RIGHT HANDHOSE, CYLINDER OUTLET RIGHT HAND
-
2017858-18H00 HOSE, CYLINDER OUTLET LEFT HANDHOSE, CYLINDER OUTLET LEFT HAND
-
2109402-28513 CLAMPCLAMP
-
2209402-32512 CLAMPCLAMP
-
2317859-18H00 PLATE, WATER HOSE CLAMPPLATE, WATER HOSE CLAMP
-
2401547-0612A BOLTBOLT
-
2517662-18H00 CONNECTORCONNECTOR
-
2601550-0620A BOLTBOLT
-
2717669-18H00 BRACKETBRACKET
-
2801550-0612B BOLTBOLT
-
2917670-76G00 THERMOSTAT, WATERTHERMOSTAT, WATER
-
3017910-18H00 TANK ASSEMBLY, RESERVOIRTANK ASSEMBLY, RESERVOIR
-
3117931-02FA0 ...CAP...CAP
-
3209111-06085 BOLTBOLT
-
3317920-18H00 BRACKET, RESERVER TANKBRACKET, RESERVER TANK
-
3401550-0620A BOLTBOLT
-
3517982-18H00 HOSE, OVERFLOWHOSE, OVERFLOW
-
3617983-18H00 HOSE, OVERFLOW NO.2HOSE, OVERFLOW NO.2
-
3717984-18H00 HOSE, OVERFLOW NO.3HOSE, OVERFLOW NO.3
-
3809359-50901-980 HOSE, OVERFLOW NO.4HOSE, OVERFLOW NO.4
-
3913471-18H00 JOINT, OVERFLOW HOSEJOINT, OVERFLOW HOSE
-
4009367-04011 JOINT, OVERFLOW HOSE NO.2JOINT, OVERFLOW HOSE NO.2
-
4109367-06009 JOINT, OVERFLOW HOSE NO.3JOINT, OVERFLOW HOSE NO.3
-
4209352-50901-00B HOSE, TANK INLETHOSE, TANK INLET
-
4309352-50901-600 HOSE, TANK INLET NO.2HOSE, TANK INLET NO.2
-
4409359-35751-600 HOSE, TANK INLET NO.3HOSE, TANK INLET NO.3
-
4509367-06007 JOINTJOINT
-
4609401-08410 CLIPCLIP
-
4709404-08205 CLAMPCLAMP
-
4809404-06429 CLAMPCLAMP
-
4909401-08411 CLIPCLIP
