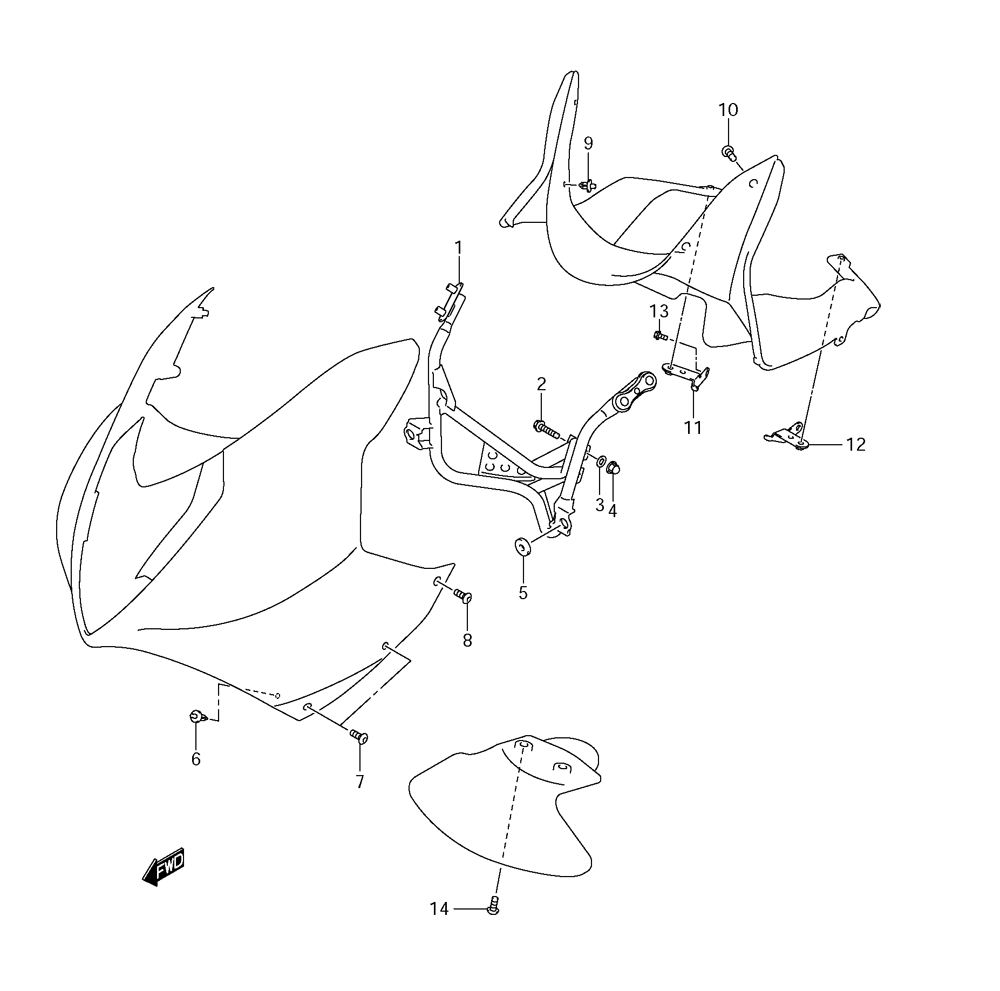

BODY COWLING INSTALLATION PARTS (WITH COWLING) для Suzuki GS500F K9 - 2009 года выпуска
-
№АртикулНазвание
-
194510-01D00-ENM BRACE, COWLINGBRACE, COWLING
-
201550-0835B BOLTBOLT
-
3D8322-0108B WASHERWASHER
-
408313-2008B NUTNUT
-
509320-08028 CUSHIONCUSHION
-
609409-06314-5PK CLIP, FRONT (BLACK)CLIP, FRONT (BLACK)
-
709139-05064 SCREW, FRONT SIDESCREW, FRONT SIDE
-
809139-05077 SCREW, REARSCREW, REAR
-
909409-06314-5PK CLIP, FRONT PANEL (BLACK)CLIP, FRONT PANEL (BLACK)
-
1009132-05053 SCREW, FRONT PANELSCREW, FRONT PANEL
-
1194420-01D00-E0N BRACKET, UPPER RIGHT HANDBRACKET, UPPER RIGHT HAND
-
1294430-01D00-E0N BRACKET, UPPER LEFT HANDBRACKET, UPPER LEFT HAND
-
13D1557-0612B BOLTBOLT
-
1463161-43E00 BOLT, LOWER COVERBOLT, LOWER COVER
