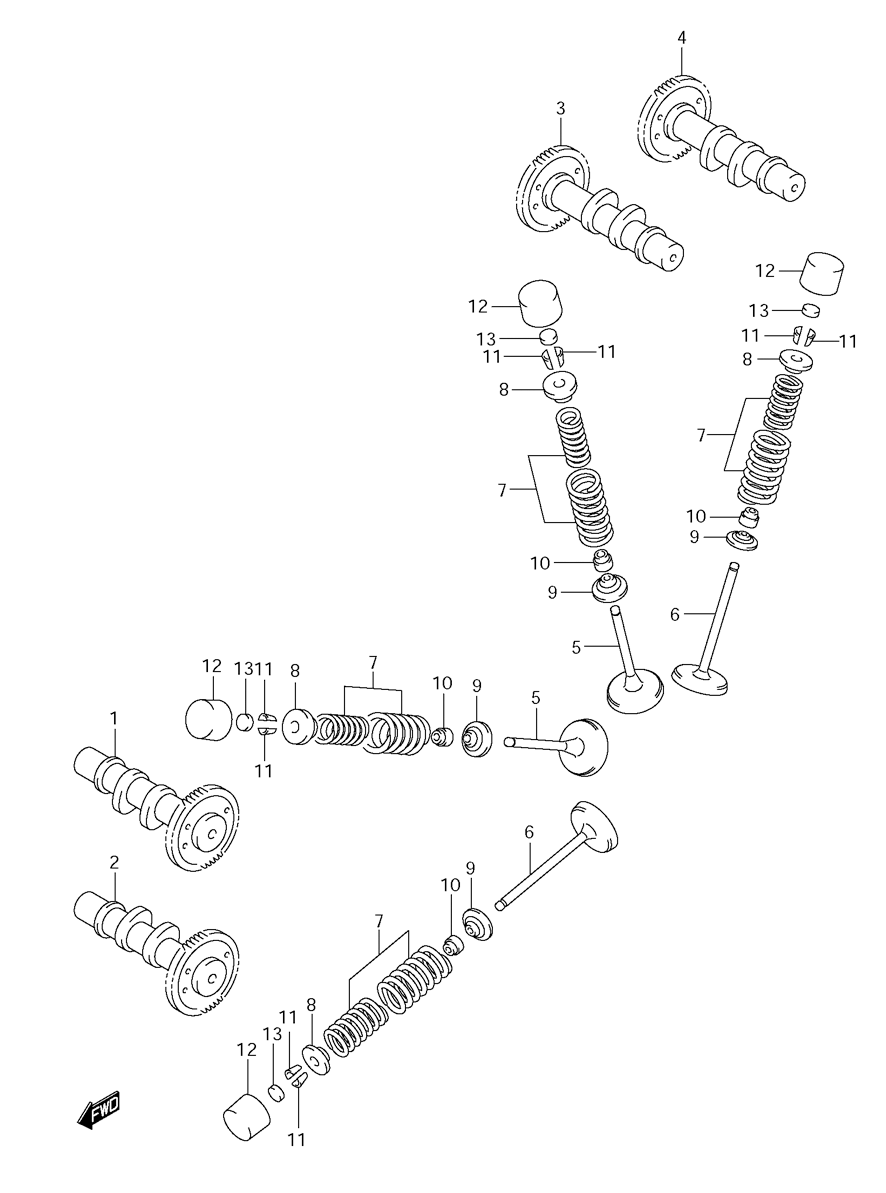

CAMSHAFT W/ VALVES для Suzuki DL650 ABS K9 - 2009 года выпуска

  • №
    Артикул
    Название
  • 1
    12710-27G00 CAMSHAFT, INTAKE FRONT
    CAMSHAFT, INTAKE FRONT
  • 2
    12720-20F00 CAMSHAFT, EXHAUST FRONT
    CAMSHAFT, EXHAUST FRONT
  • 3
    12730-27G00 CAMSHAFT, INTAKE REAR
    CAMSHAFT, INTAKE REAR
  • 4
    12740-20F00 CAMSHAFT, EXHAUST REAR
    CAMSHAFT, EXHAUST REAR
  • 5
    12911-46E00 VALVE, INTAKE
    VALVE, INTAKE
  • 6
    12912-20F00 VALVE, EXHAUST
    VALVE, EXHAUST
  • 7
    12920-33E10 SPRING SET, VALVE
    SPRING SET, VALVE
  • 8
    12931-33E10 RETAINER, VALVE SPRING
    RETAINER, VALVE SPRING
  • 9
    12933-39E00 SEAT, VALVE SPRING
    SEAT, VALVE SPRING
  • 10
    09289-04002 OIL SEAL (4.5X10X8)
    OIL SEAL (4.5X10X8)
  • 11
    12932-17E50 COTTER, VALVE
    COTTER, VALVE
  • 12
    12891-17E00 TAPPET
    TAPPET
  • 13
    12892-05C00-120 SHIM, TAPPET (THICKNESS: 1.20)
    SHIM, TAPPET (THICKNESS: 1.20)
  • 13
    12892-05C00-125 SHIM, TAPPET (THICKNESS: 1.25)
    SHIM, TAPPET (THICKNESS: 1.25)
  • 13
    12892-05C00-130 SHIM, TAPPET (THICKNESS: 1.30)
    SHIM, TAPPET (THICKNESS: 1.30)
  • 13
    12892-05C00-135 SHIM, TAPPET (THICKNESS: 1.35)
    SHIM, TAPPET (THICKNESS: 1.35)
  • 13
    12892-05C00-140 SHIM, TAPPET (THICKNESS: 1.40)
    SHIM, TAPPET (THICKNESS: 1.40)
  • 13
    12892-05C00-145 SHIM, TAPPET (THICKNESS: 1.45)
    SHIM, TAPPET (THICKNESS: 1.45)
  • 13
    12892-05C00-150 SHIM, TAPPET (THICKNESS: 1.50)
    SHIM, TAPPET (THICKNESS: 1.50)
  • 13
    12892-05C00-155 SHIM, TAPPET (THICKNESS: 1.55)
    SHIM, TAPPET (THICKNESS: 1.55)
  • 13
    12892-05C00-160 SHIM, TAPPET (THICKNESS: 1.60)
    SHIM, TAPPET (THICKNESS: 1.60)
  • 13
    12892-05C00-165 SHIM, TAPPET (THICKNESS: 1.65)
    SHIM, TAPPET (THICKNESS: 1.65)
  • 13
    12892-05C00-170 SHIM, TAPPET (THICKNESS: 1.70)
    SHIM, TAPPET (THICKNESS: 1.70)
  • 13
    12892-05C00-175 SHIM, TAPPET (THICKNESS: 1.75)
    SHIM, TAPPET (THICKNESS: 1.75)
  • 13
    12892-05C00-180 SHIM, TAPPET (THICKNESS: 1.80)
    SHIM, TAPPET (THICKNESS: 1.80)
  • 13
    12892-05C00-185 SHIM, TAPPET (THICKNESS: 1.85)
    SHIM, TAPPET (THICKNESS: 1.85)
  • 13
    12892-05C00-190 SHIM, TAPPET (THICKNESS: 1.90)
    SHIM, TAPPET (THICKNESS: 1.90)
  • 13
    12892-05C00-195 SHIM, TAPPET (THICKNESS: 1.95)
    SHIM, TAPPET (THICKNESS: 1.95)
  • 13
    12892-05C00-200 SHIM, TAPPET (THICKNESS: 2.00)
    SHIM, TAPPET (THICKNESS: 2.00)
  • 13
    12892-05C00-205 SHIM, TAPPET (THICKNESS: 2.05)
    SHIM, TAPPET (THICKNESS: 2.05)
  • 13
    12892-05C00-210 SHIM, TAPPET (THICKNESS: 2.10)
    SHIM, TAPPET (THICKNESS: 2.10)
  • 13
    12892-05C00-215 SHIM, TAPPET (THICKNESS: 2.15)
    SHIM, TAPPET (THICKNESS: 2.15)
  • 13
    12892-05C00-220 SHIM, TAPPET (THICKNESS: 2.20)
    SHIM, TAPPET (THICKNESS: 2.20)
  • 14
    12800-05830 SHIM SET, TAPPET (OPTIONAL) (NOT SHOWN)
    SHIM SET, TAPPET (OPTIONAL) (NOT SHOWN)
  • 15
    99000-69491 ...CASE, TAPPET SHIM (OPTIONAL) (NOT SHOWN)
    ...CASE, TAPPET SHIM (OPTIONAL) (NOT SHOWN)
