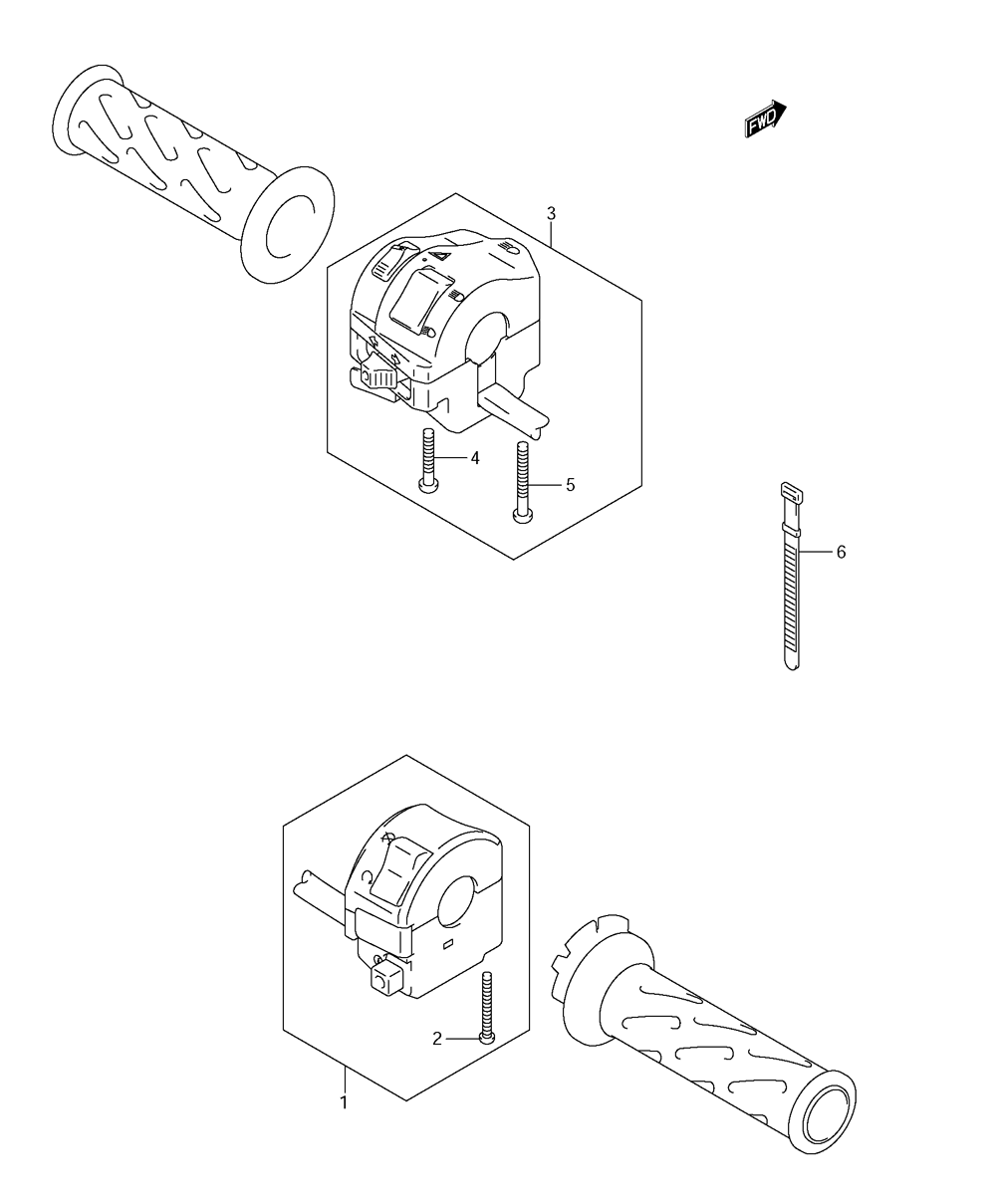

HANDLEBAR - LEVERS / SWITCHES для Suzuki DL1000 K9 - 2009 года выпуска`
-
№АртикулНазвание
-
137200-06G80 SWITCH ASSEMBLY, HANDLE RIGHT HANDSWITCH ASSEMBLY, HANDLE RIGHT HAND
-
202112-0545B ...SCREW...SCREW
-
337400-06G10 SWITCH ASSEMBLY, HANDLE LEFT HANDSWITCH ASSEMBLY, HANDLE LEFT HAND
-
402112-0530B ...SCREW...SCREW
-
502112-0540B ...SCREW...SCREW
-
609407-12402 CLAMP (LENGTH: 120)CLAMP (LENGTH: 120)
