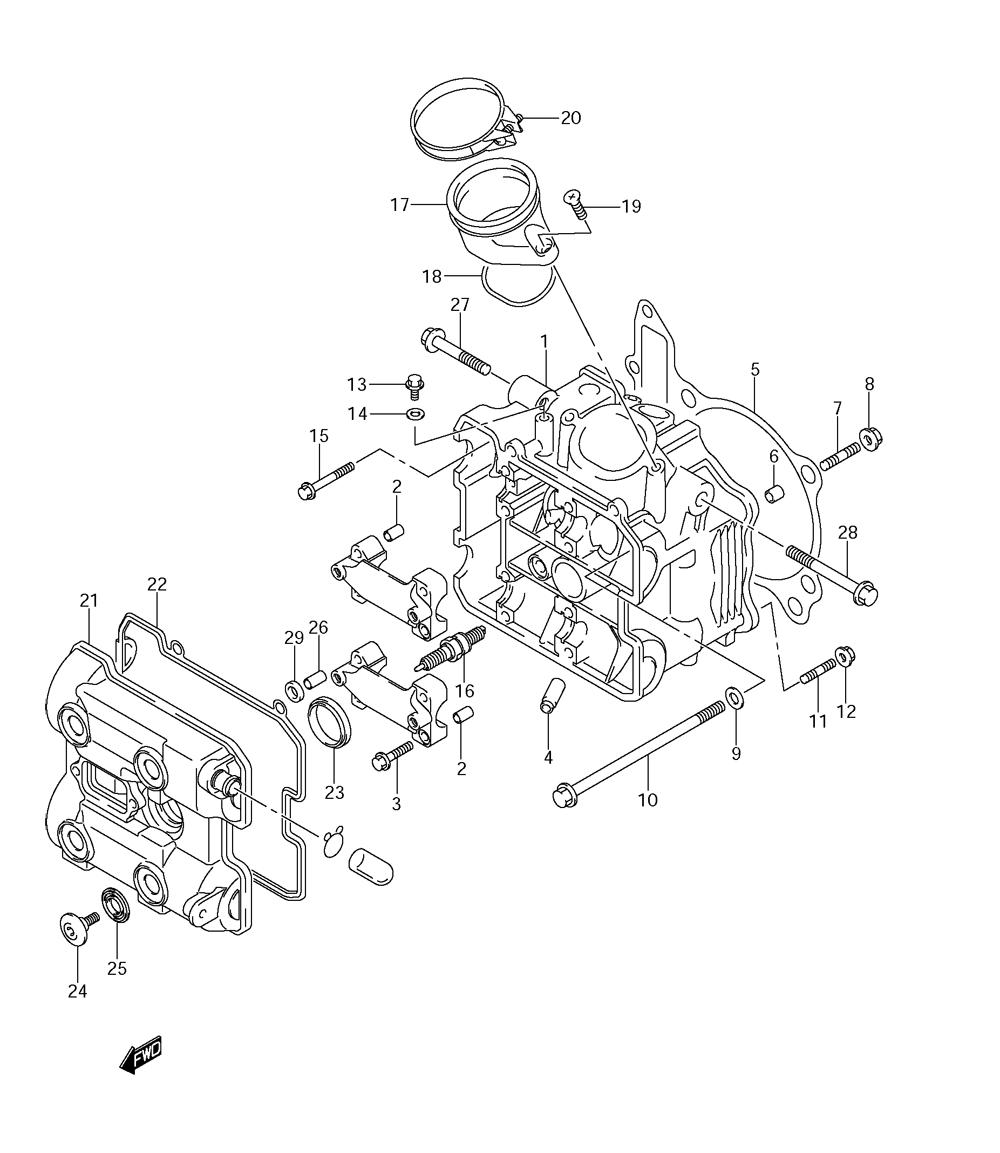

CYLINDER HEAD (FRONT) для Suzuki DL1000 K9 - 2009 года выпуска`
-
№АртикулНазвание
-
111100-06G00 HEAD ASSEMBLY, CYLINDER FRONTHEAD ASSEMBLY, CYLINDER FRONT
-
209206-08001 ...PIN...PIN
-
309103-06026 ...BOLT (6X39)...BOLT (6X39)
-
411115-32E70 GUIDE, VALVE (OVER SIZE: 0.3) (OPTIONAL)GUIDE, VALVE (OVER SIZE: 0.3) (OPTIONAL)
-
511141-02F01 GASKETGASKET
-
604211-13189 PINPIN
-
709108-08143 STUD BOLT (8X35)STUD BOLT (8X35)
-
808316-1008B NUTNUT
-
909160-10082 WASHERWASHER
-
1009103-10276 BOLT (10X175)BOLT (10X175)
-
1109108-06096 STUD BOLT (6X30)STUD BOLT (6X30)
-
1208316-1006B NUTNUT
-
1307120-0612B PLUGPLUG
-
1409168-06023 GASKETGASKET
-
1509103-06103 BOLT (6X70)BOLT (6X70)
-
1609482-00412 SPARK PLUG (NGK,CR8EK)SPARK PLUG (NGK,CR8EK)
-
1609482-00413 SPARK PLUG (DENSO,U24ETR)SPARK PLUG (DENSO,U24ETR)
-
1609482-00410 SPARK PLUG (NGK,CR9EK) (OPTIONAL)SPARK PLUG (NGK,CR9EK) (OPTIONAL)
-
1609482-00411 SPARK PLUG (DENSO,U27ETR) (OPTIONAL)SPARK PLUG (DENSO,U27ETR) (OPTIONAL)
-
1609482-00462 SPARK PLUG (NGK,CR10EK) (OPTIONAL)SPARK PLUG (NGK,CR10EK) (OPTIONAL)
-
1609482-00463 SPARK PLUG (DENSO,U31ETR) (OPTIONAL)SPARK PLUG (DENSO,U31ETR) (OPTIONAL)
-
1713101-06G00 PIPE, INTAKE FRONTPIPE, INTAKE FRONT
-
1809280-55005 ...O RING...O RING
-
1902122-0616B SCREWSCREW
-
2009402-70902 CLAMPCLAMP
-
2111171-06G01 COVER, CYLINDERCOVER, CYLINDER
-
2211173-02F00 GASKETGASKET
-
2311178-17E00 GASKETGASKET
-
2409106-07009 BOLT (7X17.5)BOLT (7X17.5)
-
2511191-27E00 WASHERWASHER
-
2609206-08007 PINPIN
-
2709103-10381 BOLT (10X65) RIGHT HANDBOLT (10X65) RIGHT HAND
-
2809103-10382 BOLT (10X85) LEFT HANDBOLT (10X85) LEFT HAND
-
2911182-35F00 GASKET, 2ND AIR PASSAGEGASKET, 2ND AIR PASSAGE
