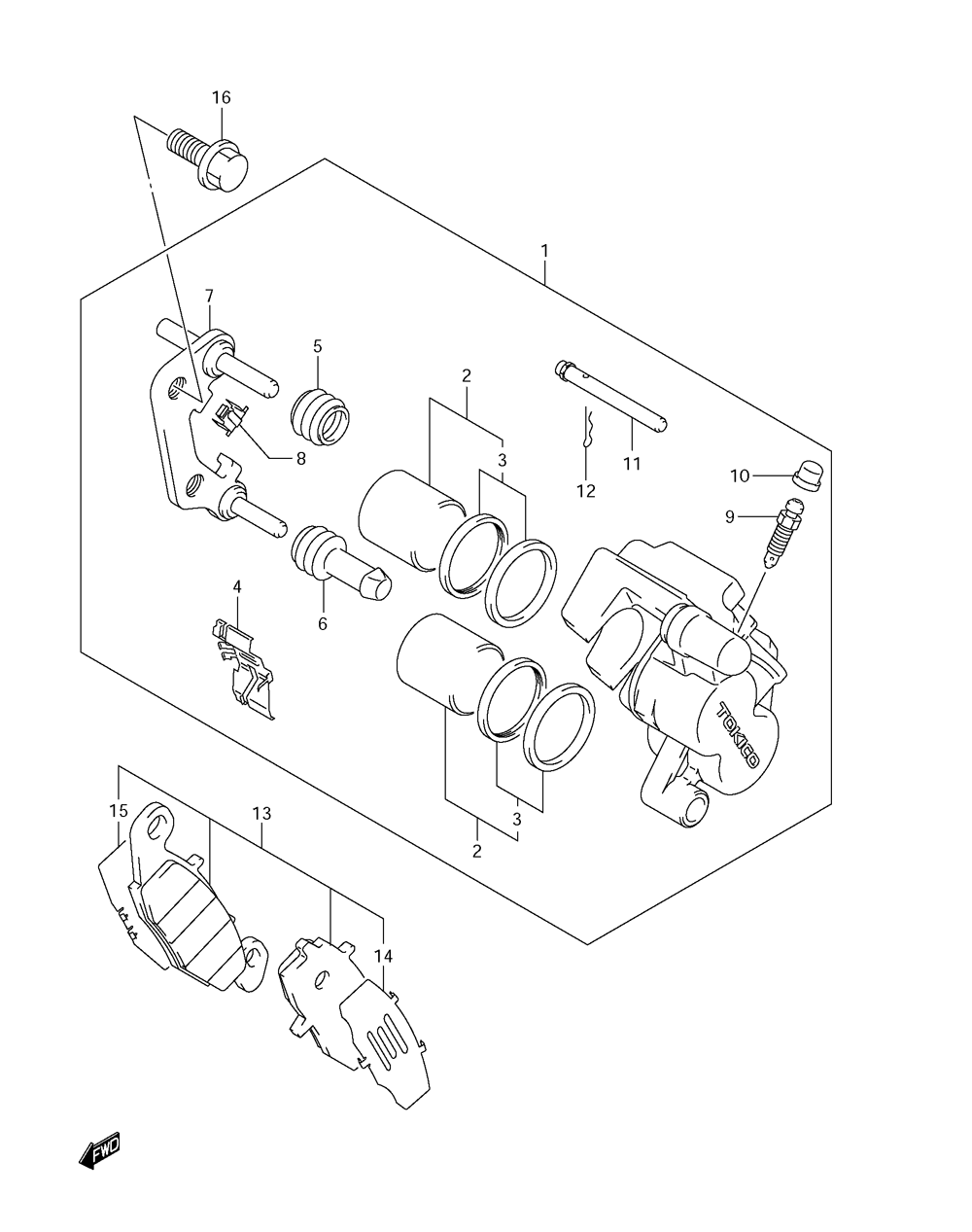

BRAKE - FRONT CALIPER для Suzuki DL1000 K9 - 2009 года выпуска`
-
№АртикулНазвание
-
159100-33D90-999 CALIPER ASSEMBLY, FRONT RIGHT HANDCALIPER ASSEMBLY, FRONT RIGHT HAND
-
159300-33D90-999 CALIPER ASSEMBLY, FRONT LEFT HANDCALIPER ASSEMBLY, FRONT LEFT HAND
-
259300-33831 ...PISTON SET...PISTON SET
-
359300-33841 ......SEAL SET, PISTON......SEAL SET, PISTON
-
459115-33D00 ...SPRING RIGHT HAND...SPRING RIGHT HAND
-
459315-33D00 ...SPRING LEFT HAND...SPRING LEFT HAND
-
559112-44B00 ...BOOT...BOOT
-
659313-36500 ...INSULATOR...INSULATOR
-
759150-33D01 ...CARRIER, CALIPER, RIGHT...CARRIER, CALIPER, RIGHT
-
759350-33D01 ...CARRIER, CALIPER, LEFT...CARRIER, CALIPER, LEFT
-
859116-33D00 ...GUIDE...GUIDE
-
959121-18410 ...BLEEDER...BLEEDER
-
1055156-66310 ...CAP...CAP
-
1159141-44B01 ...PIN...PIN
-
1269142-45000 ...CLIP...CLIP
-
1359102-33870 PAD & SHIM SET RIGHT HANDPAD & SHIM SET RIGHT HAND
-
1359302-33850 PAD & SHIM SET LEFT HANDPAD & SHIM SET LEFT HAND
-
1459171-33D00 ...SHIM...SHIM
-
1559172-33D00 ...SHIM, NO.2...SHIM, NO.2
-
1601550-1025A BOLTBOLT
