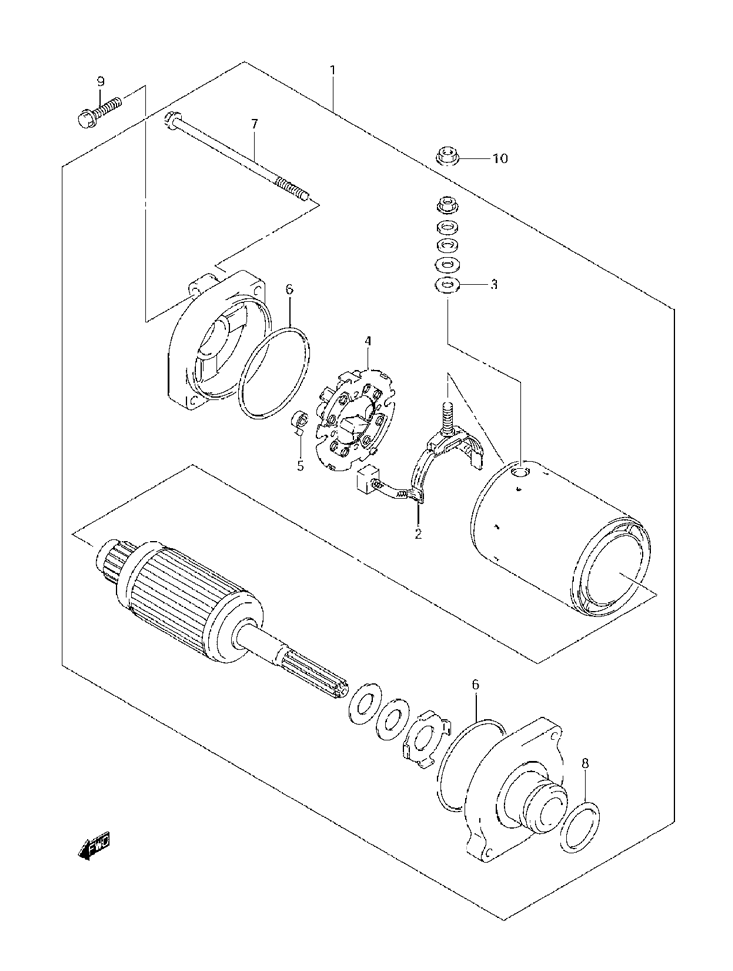

STARTING MOTOR для Suzuki VZR1800Z K8 M109RZ LTD - 2008 года выпуска`
-
№АртикулНазвание
-
131100-48G00 MOTOR ASSY, STARTING (INCL. 2-8)MOTOR ASSY, STARTING (INCL. 2-8)
-
231130-38B00 TERMINAL SET, BRUSHTERMINAL SET, BRUSH
-
331143-49040 O RINGO RING
-
431132-38B00 HOLDER SET, BRUSHHOLDER SET, BRUSH
-
531135-38B00 SPRING, BRUSHSPRING, BRUSH
-
631264-31300 O RINGO RING
-
731281-24B10 BOLTBOLT
-
809280-24003 O RING (DD:3,ID:24.5)O RING (DD:3,ID:24.5)
-
909103-06212 BOLT, STARTING MOTOR (6X25)BOLT, STARTING MOTOR (6X25)
-
1008361-3506A NUT, STARTING MOTORNUT, STARTING MOTOR
