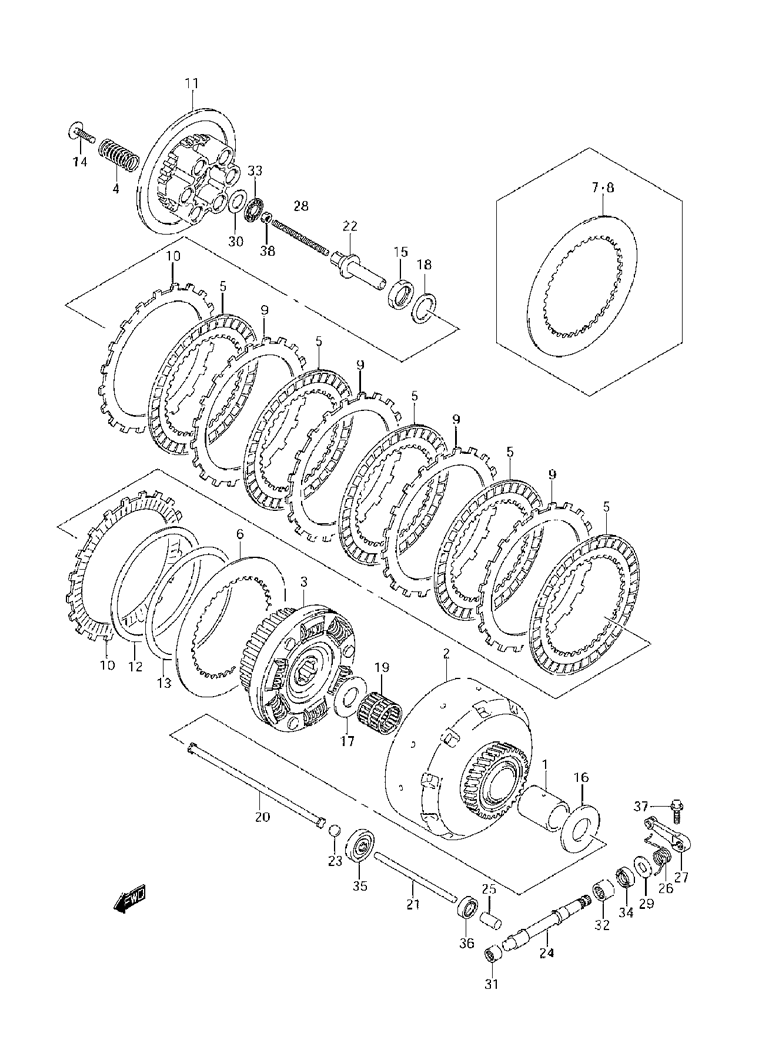

CLUTCH для Suzuki VZR1800 K8 M109R - 2008 года выпуска
-
№АртикулНазвание
-
121151-48G00 SPACER, PRIMARY DRIVE GEARSPACER, PRIMARY DRIVE GEAR
-
221100-48G00 GEAR ASSY, PRIMARY DRIVEGEAR ASSY, PRIMARY DRIVE
-
221100-48G01 GEAR ASSY, PRIMARY DRIVEGEAR ASSY, PRIMARY DRIVE
-
321410-48G00 HUB, CLUTCHHUB, CLUTCH
-
421413-48G00 SPRING, CLUTCHSPRING, CLUTCH
-
521441-48G00 PLATE, CLUTCH DRIVE NO.1PLATE, CLUTCH DRIVE NO.1
-
621441-48G10 PLATE, CLUTCH DRIVE NO.2PLATE, CLUTCH DRIVE NO.2
-
721441-48G20 PLATE, CLUTCH DRIVE NO.3PLATE, CLUTCH DRIVE NO.3
-
821441-48G30 PLATE, CLUTCH DRIVE NO.4PLATE, CLUTCH DRIVE NO.4
-
921451-48G00 PLATE, CLUTCH DRIVEN NO.1PLATE, CLUTCH DRIVEN NO.1
-
1021451-48G10 PLATE, CLUTCH DRIVEN NO.2PLATE, CLUTCH DRIVEN NO.2
-
1121462-48G00 DISC, CLUTCH PRESSUREDISC, CLUTCH PRESSURE
-
1221471-48G00 SEAT, WAVE WASHERSEAT, WAVE WASHER
-
1321472-48G00 WASHER, CLUTCH PLATEWASHER, CLUTCH PLATE
-
1421482-41G00 BOLT, CLUTCH SPRINGBOLT, CLUTCH SPRING
-
1509159-24010 NUT, CLUTCH SLEEVE HUBNUT, CLUTCH SLEEVE HUB
-
1609160-25056 WASHER, CLUTCH SLEEVE HUB THRWASHER, CLUTCH SLEEVE HUB THR
-
1709160-25056 WASHER, PRIMARY DRIVEWASHER, PRIMARY DRIVE
-
1809164-24006 WASHER, CLUTCH SLEEVE HUB WAVEWASHER, CLUTCH SLEEVE HUB WAVE
-
1809164-20008 WASHER, CLUTCH SLEEVE HUB WAVEWASHER, CLUTCH SLEEVE HUB WAVE
-
1909263-32020 BEARING, PRIMARY DRIVEBEARING, PRIMARY DRIVE
-
2023110-24F00 ROD, CLUTCHROD, CLUTCH
-
2123111-48G00 ROD, CLUTCH PUSH, LROD, CLUTCH PUSH, L
-
2223121-41G00 PIECE, CLUTCH PUSHPIECE, CLUTCH PUSH
-
2323122-02FR0 BALL, CLUTCH PUSHBALL, CLUTCH PUSH
-
2423122-48G00-A05 CAMSHAFT, CLUTCH RELEASECAMSHAFT, CLUTCH RELEASE
-
2523123-41G00-A05 CAP, CLUTCH PUSH RODCAP, CLUTCH PUSH ROD
-
2623125-48G00-A05 SPRING, CLUTCH RELEASE RETURNSPRING, CLUTCH RELEASE RETURN
-
2723271-48G00-A05 ARM, CLUTCH RELEASEARM, CLUTCH RELEASE
-
2809134-06015-A05 SCREW, CLUTCH PUSH RODSCREW, CLUTCH PUSH ROD
-
2909160-10020-A05 WASHER, CLUTCH RELEASEWASHER, CLUTCH RELEASE
-
3009160-15045 WASHER, CLUTCH PUSH PIECEWASHER, CLUTCH PUSH PIECE
-
3109263-10014 BEARING, CL RLSE CAM LOWERBEARING, CL RLSE CAM LOWER
-
3209263-12027 BEARING, CL RLSE CAM UPPERBEARING, CL RLSE CAM UPPER
-
3309263-15003 BEARING, CLUTCH PUSH PIECEBEARING, CLUTCH PUSH PIECE
-
3409282-10012 SEAL, CL RLSE CAMSHAFT OILSEAL, CL RLSE CAMSHAFT OIL
-
3509283-06010 SEAL, CLUTCH PUSH ROD OILSEAL, CLUTCH PUSH ROD OIL
-
3609285-10004 SEAL, CLUTCH PUSH ROD CAPSEAL, CLUTCH PUSH ROD CAP
-
3701550-0620A BOLT, CL RELEASE ARMBOLT, CL RELEASE ARM
-
3808310-0006A NUT, CLUTCH RELEASE ADJNUT, CLUTCH RELEASE ADJ
