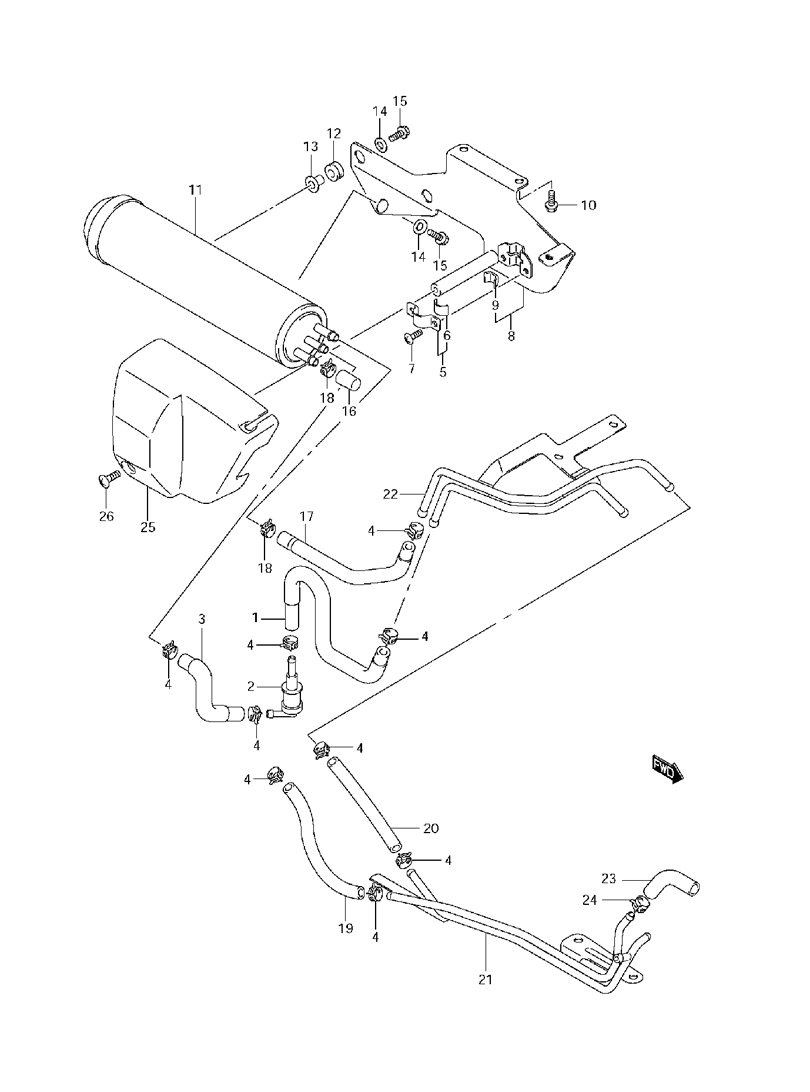

EVAP SYSTEM (CALIF ONLY) для Suzuki VS800 K8 - 2008 года выпуска
-
№АртикулНазвание
-
144434-38AA0 HOSE, TANK AND VALVEHOSE, TANK AND VALVE
-
244240-17C00 VALVE, BREATHERVALVE, BREATHER
-
344435-38AA0 HOSE, VALVE AND CANISTERHOSE, VALVE AND CANISTER
-
409401-11413 CLIPCLIP
-
544892-24A00 PLATE, VALVE (INCLUDES ITEM(S) 6)PLATE, VALVE (INCLUDES ITEM(S) 6)
-
644894-24A00 CUSHIONCUSHION
-
702142-0408B SCREWSCREW
-
844880-38A20 BRACKET, CANISTER (INCLUDES ITEM(S) 9)BRACKET, CANISTER (INCLUDES ITEM(S) 9)
-
944894-24A00 CUSHIONCUSHION
-
1001550-0616B BOLT, BRACKETBOLT, BRACKET
-
1117200-38A10 CANISTERCANISTER
-
1209320-08001 CUSHIONCUSHION
-
1309169-06070 SPACERSPACER
-
1409160-06037 WASHERWASHER
-
1501550-0620B BOLTBOLT
-
1609251-07003 CAPCAP
-
1744436-38AA0 HOSE, CANISTER PURGEHOSE, CANISTER PURGE
-
1809401-12404 CLIPCLIP
-
1944432-38AA0 HOSE, PURGEHOSE, PURGE
-
2044433-38AA0 HOSE, PURGEHOSE, PURGE
-
2144940-38A00 PIPE, CANISTER JOINT FRONTPIPE, CANISTER JOINT FRONT
-
2244950-38A20 PIPE, CANISTER JOINT REARPIPE, CANISTER JOINT REAR
-
2344437-38AA0 HOSE, CHARGEHOSE, CHARGE
-
2409401-08411 CLIPCLIP
-
2544991-38A20 COVER, BREATHER VALVECOVER, BREATHER VALVE
-
2609139-05064 SCREW, 5X13SCREW, 5X13
