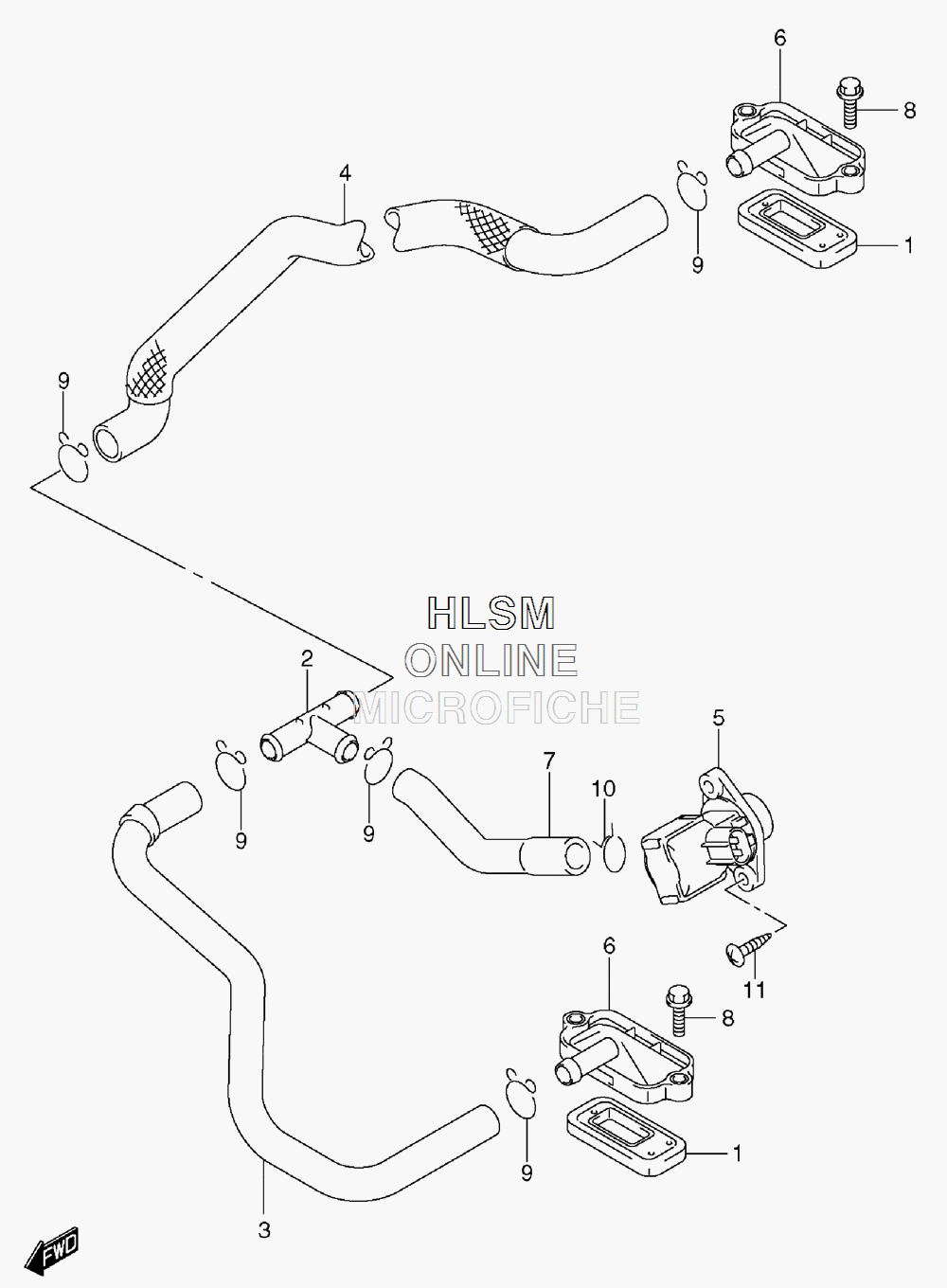

SECOND AIR (USA/CANADA) для Suzuki VLR1800 K8 - 2008 года выпуска`
-
№АртикулНазвание
-
118450-06G00 VALVE ASSY, 2ND AIR REEDVALVE ASSY, 2ND AIR REED
-
213855-18A03 UNION, 2ND AIR HOSEUNION, 2ND AIR HOSE
-
318461-22H00 HOSE, FRONTHOSE, FRONT
-
418471-22H00 HOSE, REARHOSE, REAR
-
518510-27G00 VALVE ASSY, AIR CUTVALVE ASSY, AIR CUT
-
618531-06G01 COVERCOVER
-
718711-22H00 HOSE, 2ND AIR VALVEHOSE, 2ND AIR VALVE
-
809103-06201 BOLT (6X20)BOLT (6X20)
-
909401-15101 CLIPCLIP
-
1009401-18304 CLAMPCLAMP
-
1103541-0520A SCREWSCREW
