GASKET SET для Suzuki VL1500 K8 - 2008 года выпуска

  • №
    Артикул
    Название
  • 1

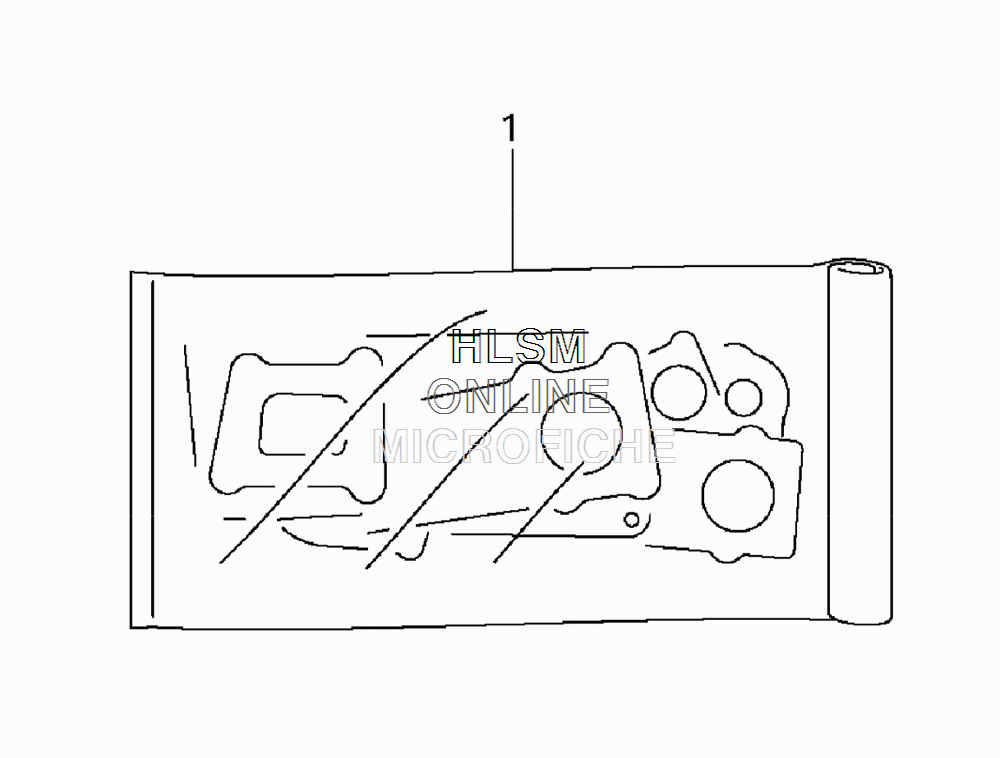

    11400-10853 GASKET SET (INCL. 2-19)
    GASKET SET (INCL. 2-19)
  • 2
    11141-10F00 GASKET, CYLINDER HEAD FRONT (NOT SHOWN)
    GASKET, CYLINDER HEAD FRONT (NOT SHOWN)
  • 3
    11142-10F00 GASKET, CYLINDER HEAD REAR (NOT SHOWN)
    GASKET, CYLINDER HEAD REAR (NOT SHOWN)
  • 4
    11177-38B01-H17 GASKET, BREATHER COVER (NOT SHOWN)
    GASKET, BREATHER COVER (NOT SHOWN)
  • 5
    11241-10F00 GASKET, CYLINDER FRONT (NOT SHOWN)
    GASKET, CYLINDER FRONT (NOT SHOWN)
  • 6
    11242-10F00 GASKET, CYLINDER REAR (NOT SHOWN)
    GASKET, CYLINDER REAR (NOT SHOWN)
  • 7
    11482-38B20 GASKET, CLUTCH COVER (NOT SHOWN)
    GASKET, CLUTCH COVER (NOT SHOWN)
  • 8
    11483-10F10 GASKET, GENERATOR COVER (NOT SHOWN)
    GASKET, GENERATOR COVER (NOT SHOWN)
  • 9
    11485-10F10 GASKET, GEAR SHIFT COVER (NOT SHOWN)
    GASKET, GEAR SHIFT COVER (NOT SHOWN)
  • 10
    14181-10F00 GASKET, EXHAUST PIPE (NOT SHOWN)
    GASKET, EXHAUST PIPE (NOT SHOWN)
  • 11
    09168-06023 GASKET (5.8X13X1.2) (NOT SHOWN)
    GASKET (5.8X13X1.2) (NOT SHOWN)
  • 12
    09168-16002 GASKET (16X22X2) (NOT SHOWN)
    GASKET (16X22X2) (NOT SHOWN)
  • 13
    09168-16003 GASKET (16X22X2) (NOT SHOWN)
    GASKET (16X22X2) (NOT SHOWN)
  • 14
    09168-18003 GASKET (18X24.2X2) (NOT SHOWN)
    GASKET (18X24.2X2) (NOT SHOWN)
  • 15
    09280-04004 O RING (D:1.2,ID:4.0) (NOT SHOWN)
    O RING (D:1.2,ID:4.0) (NOT SHOWN)
  • 16
    09280-12009 O RING (D:1.9,ID:12.6) (NOT SHOWN)
    O RING (D:1.9,ID:12.6) (NOT SHOWN)
  • 17
    09280-17003 O RING (D:3.1,ID:16.8) (NOT SHOWN)
    O RING (D:3.1,ID:16.8) (NOT SHOWN)
  • 18
    09280-22008 O RING (D:3.1,ID:22.7) (NOT SHOWN)
    O RING (D:3.1,ID:22.7) (NOT SHOWN)
  • 19
    09280-41007 O RING (D:1.9,ID:40.7) (NOT SHOWN)
    O RING (D:1.9,ID:40.7) (NOT SHOWN)
