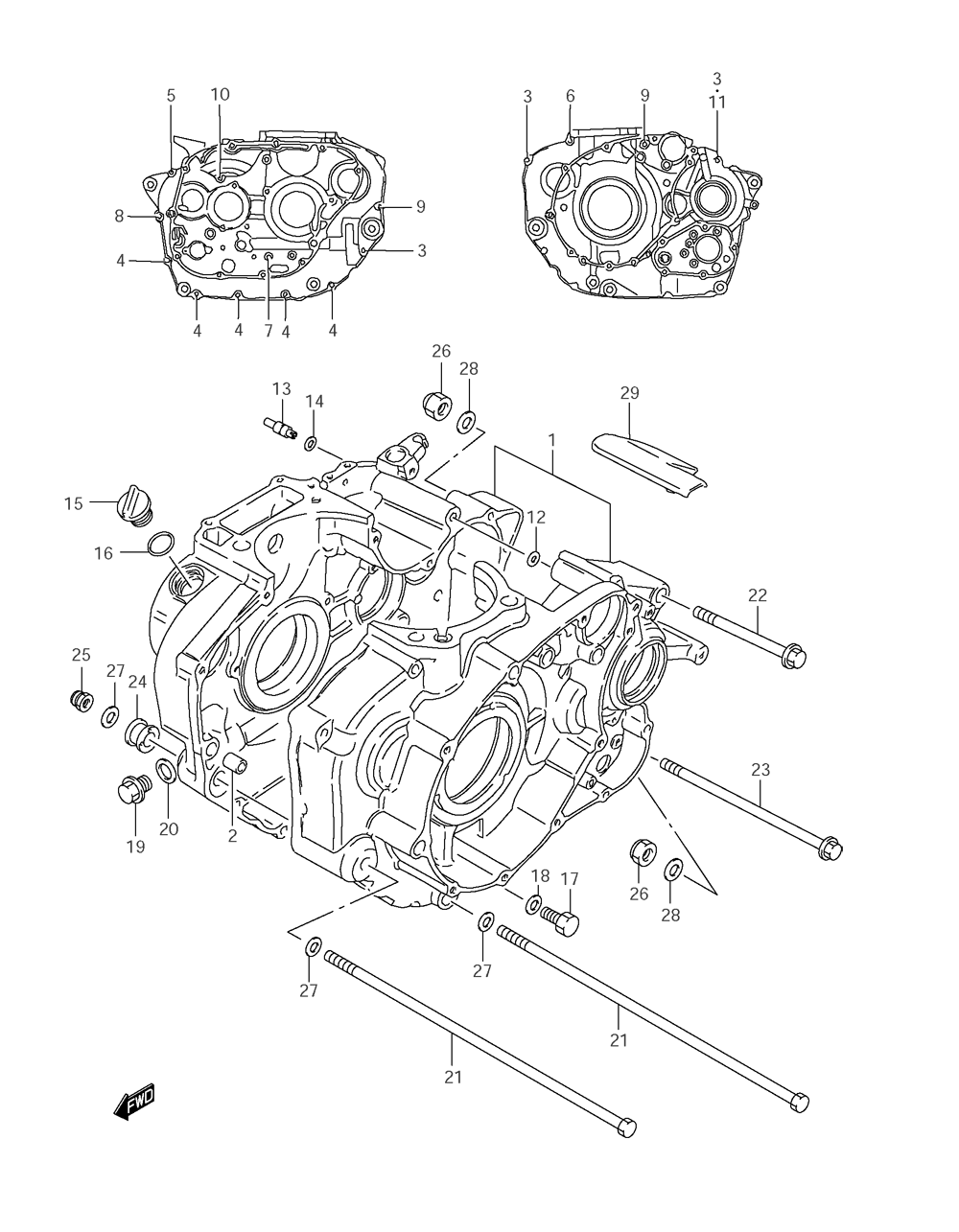

CRANKCASE для Suzuki LS650 K8 - 2008 года выпуска

№

Артикул

Название
1

11302-24852 CRANKCASE SET

CRANKCASE SET
2

09206-11007 ...PIN

...PIN
3

01547-0640B ...BOLT

...BOLT
4

01547-0645B ...BOLT

...BOLT
5

09103-06216 ...BOLT

...BOLT
6

01547-0660B ...BOLT

...BOLT
7

01547-0665B ...BOLT

...BOLT
8

01547-06657 ...BOLT

...BOLT
9

01547-0670B ...BOLT

...BOLT
10

01547-0675B ...BOLT

...BOLT
11

09168-06023 ...GASKET (5.8X13X1.2)

...GASKET (5.8X13X1.2)
12

09280-10013 ...O RING (DIAMETER: 2.4, INSIDE DIAMETER: 9.6)

...O RING (DIAMETER: 2.4, INSIDE DIAMETER: 9.6)
13

09493-36004 ...JET, OIL GALLERY

...JET, OIL GALLERY
14

09280-04004 ...O RING (DIAMETER: 1.2, INSIDE DIAMETER: 4.0)

...O RING (DIAMETER: 1.2, INSIDE DIAMETER: 4.0)
15

11971-25D00 PLUG, OIL FILLER

PLUG, OIL FILLER
16

09280-17003 O RING (DIAMETER: 3.1, INSIDE DIAMETER: 16.8)

O RING (DIAMETER: 3.1, INSIDE DIAMETER: 16.8)
17

09247-12011 PLUG, OIL DRAIN

PLUG, OIL DRAIN
18

09168-12002 GASKET

GASKET
19

09247-14012 PLUG, OIL GALLERY

PLUG, OIL GALLERY
20

09168-14002 GASKET

GASKET
21

09104-10034 BOLT (10X323)

BOLT (10X323)
22

09103-10087 BOLT (10X105)

BOLT (10X105)
23

09103-10053 BOLT (10X180)

BOLT (10X180)
24

11610-38400 SPACER

SPACER
25

09159-10064 NUT

NUT
26

09159-10047 NUT

NUT
27

08322-01107 WASHER

WASHER
28

08322-0110B WASHER

WASHER
29

11384-24B01 COVER, CRANKCASE

COVER, CRANKCASE
