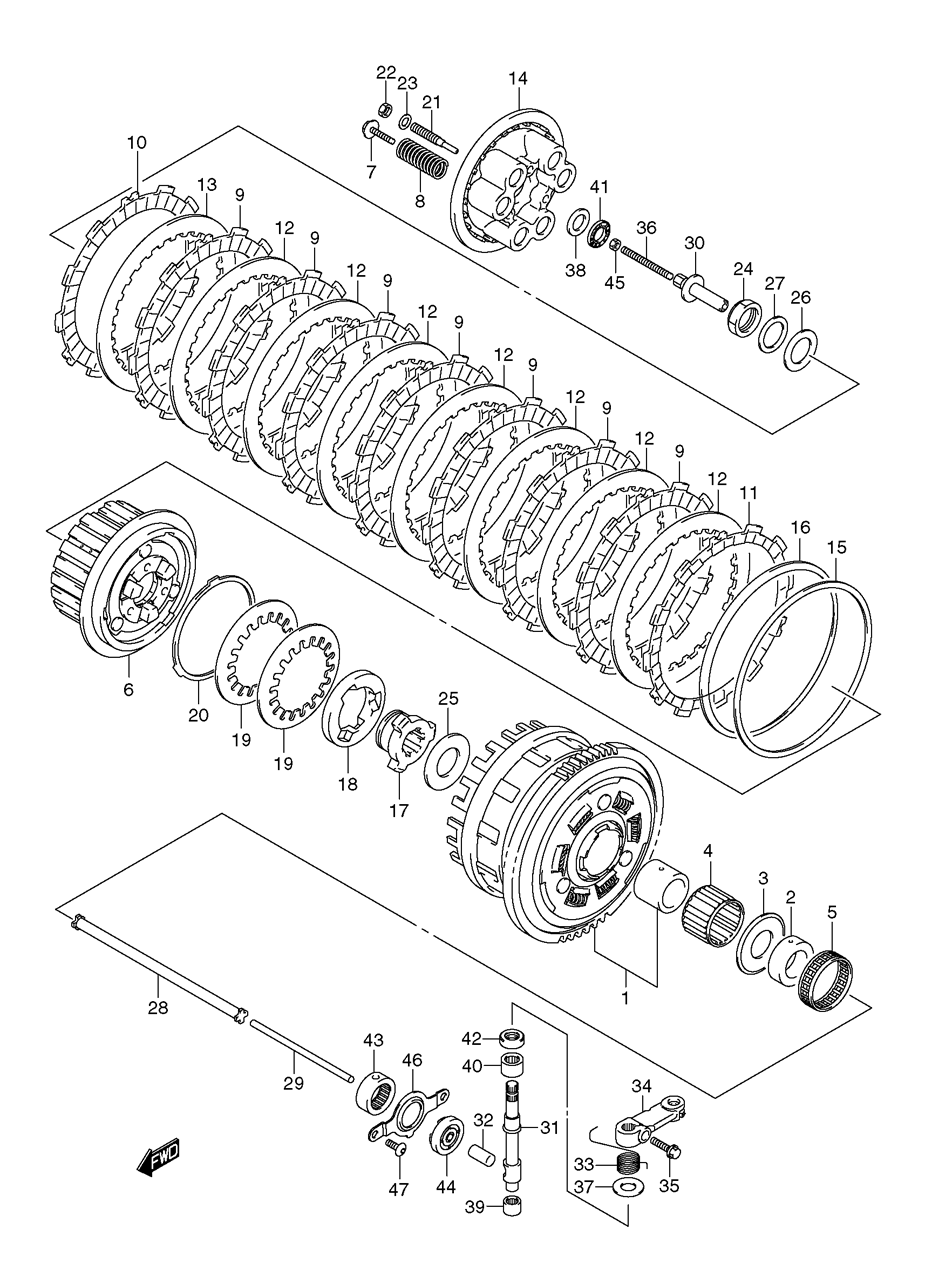

CLUTCH для Suzuki GSX-R750 K8 - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    21200-02840 GEAR ASSEMBLY, PRIMARY DRIVEN (74 TEETH)
    GEAR ASSEMBLY, PRIMARY DRIVEN (74 TEETH)
  • 2
    21253-01H10 SPACER, OIL PUMP DRIVE
    SPACER, OIL PUMP DRIVE
  • 3
    09160-25073 WASHER (25X54X2.4)
    WASHER (25X54X2.4)
  • 4
    09263-35015 BEARING (35X40X26.8)
    BEARING (35X40X26.8)
  • 5
    09263-35045 BEARING (35X40X12.8)
    BEARING (35X40X12.8)
  • 6
    21410-41G30 HUB, CLUTCH SLEEVE
    HUB, CLUTCH SLEEVE
  • 7
    21482-41G00 BOLT, CLUTCH SPRING
    BOLT, CLUTCH SPRING
  • 8
    21413-01H00 SPRING, CLUTCH
    SPRING, CLUTCH
  • 9
    21441-36F30 PLATE, CLUTCH DRIVE NO.1
    PLATE, CLUTCH DRIVE NO.1
  • 10
    21441-36F10 PLATE, CLUTCH DRIVE NO.2
    PLATE, CLUTCH DRIVE NO.2
  • 11
    21442-41G00 PLATE, CLUTCH DRIVE NO.3
    PLATE, CLUTCH DRIVE NO.3
  • 12
    21451-41G10 PLATE, CLUTCH DRIVEN NO.1
    PLATE, CLUTCH DRIVEN NO.1
  • 13
    21451-41G30 PLATE, CLUTCH DRIVEN NO.2
    PLATE, CLUTCH DRIVEN NO.2
  • 14
    21462-41G00 DISC, CLUTCH PRESSURE
    DISC, CLUTCH PRESSURE
  • 15
    21471-41G00 SEAT, WAVE WASHER
    SEAT, WAVE WASHER
  • 16
    21472-41G10 WASHER, CLUTCH PLATE WAVE
    WASHER, CLUTCH PLATE WAVE
  • 17
    21611-41G30 CAM, CLUTCH DRIVE
    CAM, CLUTCH DRIVE
  • 18
    21612-41G10 CAM, CLUTCH DRIVEN
    CAM, CLUTCH DRIVEN
  • 19
    21621-41G00 WASHER, CAM REACTION WAVE
    WASHER, CAM REACTION WAVE
  • 20
    21624-41G00 WASHER, CAM REACTION SEAT
    WASHER, CAM REACTION SEAT
  • 21
    21622-41G00 LIFTER, CLUTCH PRESSURE DISC
    LIFTER, CLUTCH PRESSURE DISC
  • 22
    21623-41G00 NUT, CL PRESS DISC
    NUT, CL PRESS DISC
  • 23
    09181-08139 WASHER (8X14X1.0)
    WASHER (8X14X1.0)
  • 24
    09159-24010 NUT, CLUTCH SLEEVE HUB
    NUT, CLUTCH SLEEVE HUB
  • 25
    09160-25056 WASHER, CLUTCH SLEEVE THR
    WASHER, CLUTCH SLEEVE THR
  • 26
    09164-24006 WASHER, CLUTCH WAVE
    WASHER, CLUTCH WAVE
  • 27
    09160-25077 WASHER, SLEEVE HUB NUT
    WASHER, SLEEVE HUB NUT
  • 28
    23110-38B00 ROD, CLUTCH PUSH RIGHT HAND
    ROD, CLUTCH PUSH RIGHT HAND
  • 29
    23111-35F00 ROD, CLUTCH PUSH LEFT HAND
    ROD, CLUTCH PUSH LEFT HAND
  • 30
    23121-41G00 PIECE, CLUTCH PUSH
    PIECE, CLUTCH PUSH
  • 31
    23122-41G00 CAMSHAFT, CLUTCH RELEASE
    CAMSHAFT, CLUTCH RELEASE
  • 32
    23123-41G00 CAP, CLUTCH PUSH ROD
    CAP, CLUTCH PUSH ROD
  • 33
    23125-41G00 SPRING, CLUTCH RELEASE
    SPRING, CLUTCH RELEASE
  • 34
    23271-41G20 ARM, CLUTCH RELEASE
    ARM, CLUTCH RELEASE
  • 35
    09103-06223 BOLT, CL RELEASE
    BOLT, CL RELEASE
  • 36
    09134-06015 SCREW, CLUTCH PUSH
    SCREW, CLUTCH PUSH
  • 37
    09160-10020 WASHER, CLUTCH PUSH
    WASHER, CLUTCH PUSH
  • 38
    09160-15045 WASHER, CLUTCH PUSH
    WASHER, CLUTCH PUSH
  • 39
    09263-10014 BEARING, CL CAM SHAFT
    BEARING, CL CAM SHAFT
  • 40
    09263-12027 BEARING, CL RLSE CAM
    BEARING, CL RLSE CAM
  • 41
    09263-15003 BEARING, CL PUSH PIECE
    BEARING, CL PUSH PIECE
  • 42
    09282-10012 SEAL, CL RLSE CAM SHAFT
    SEAL, CL RLSE CAM SHAFT
  • 43
    09285-06011 SEAL, CLUTCH PUSH ROD
    SEAL, CLUTCH PUSH ROD
  • 44
    09285-10004 SEAL, CLUTCH PUSH ROD
    SEAL, CLUTCH PUSH ROD
  • 45
    08310-0006A NUT, CLUTCH RELEASE
    NUT, CLUTCH RELEASE
  • 46
    24741-01H00 RETAINER, CL PUSH ROD
    RETAINER, CL PUSH ROD
  • 47
    09139-06153 SCREW, PUSH ROD
    SCREW, PUSH ROD
