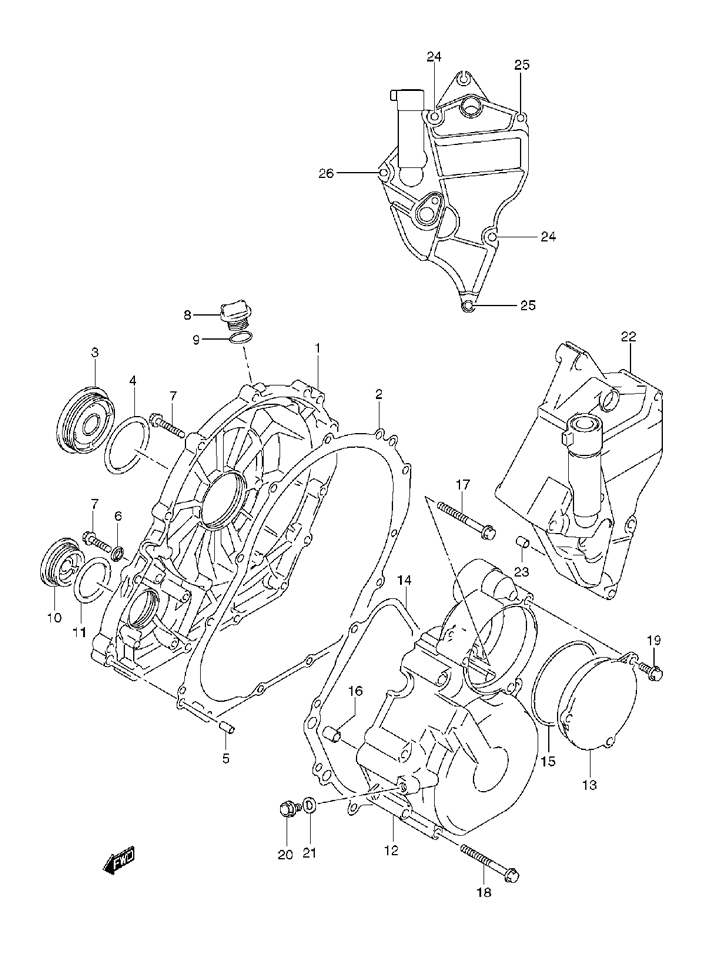

CRANKCASE COVER для Suzuki GSX-R600 K8 - 2008 года выпуска`
-
№АртикулНазвание
-
111341-37H00 COVER, CLUTCHCOVER, CLUTCH
-
211482-01H00 GASKET, CLUTCH COVERGASKET, CLUTCH COVER
-
311342-41G10 CAP, CLUTCH RELEASE ADJUSTCAP, CLUTCH RELEASE ADJUST
-
409280-54001 O RING (D:2.4,ID:52.6)O RING (D:2.4,ID:52.6)
-
504211-09189 PINPIN
-
609168-06023 GASKET (5.8X13X1.2)GASKET (5.8X13X1.2)
-
709103-06213 BOLTBOLT
-
811971-25D00 PLUG, ENGINE OIL FILTERPLUG, ENGINE OIL FILTER
-
909280-17003 O RING (D:3.1,ID:16.8)O RING (D:3.1,ID:16.8)
-
1009259-36021 PLUG, SHAFT HOLEPLUG, SHAFT HOLE
-
1109280-33004 O RING (D:3.1,ID:32.7)O RING (D:3.1,ID:32.7)
-
1211351-01H02 COVER, GENERATORCOVER, GENERATOR
-
1311352-01H00 CAP, STARTER IDLE GEARCAP, STARTER IDLE GEAR
-
1411483-01H00 GASKETGASKET
-
1509280-71008 O RINGO RING
-
1604211-09149 PINPIN
-
1709103-06212 BOLTBOLT
-
1809103-06238 BOLTBOLT
-
1909103-06274 BOLTBOLT
-
2009103-06222 PLUG, OIL GALLERYPLUG, OIL GALLERY
-
2109168-06018 GASKETGASKET
-
2211361-01H00 COVER, ENGINE SPROCKETCOVER, ENGINE SPROCKET
-
2304211-09129 PINPIN
-
2409103-06224 BOLT (6X45)BOLT (6X45)
-
2509103-06239 BOLT (6X65)BOLT (6X65)
-
2609103-06257 BOLT (6X75)BOLT (6X75)
