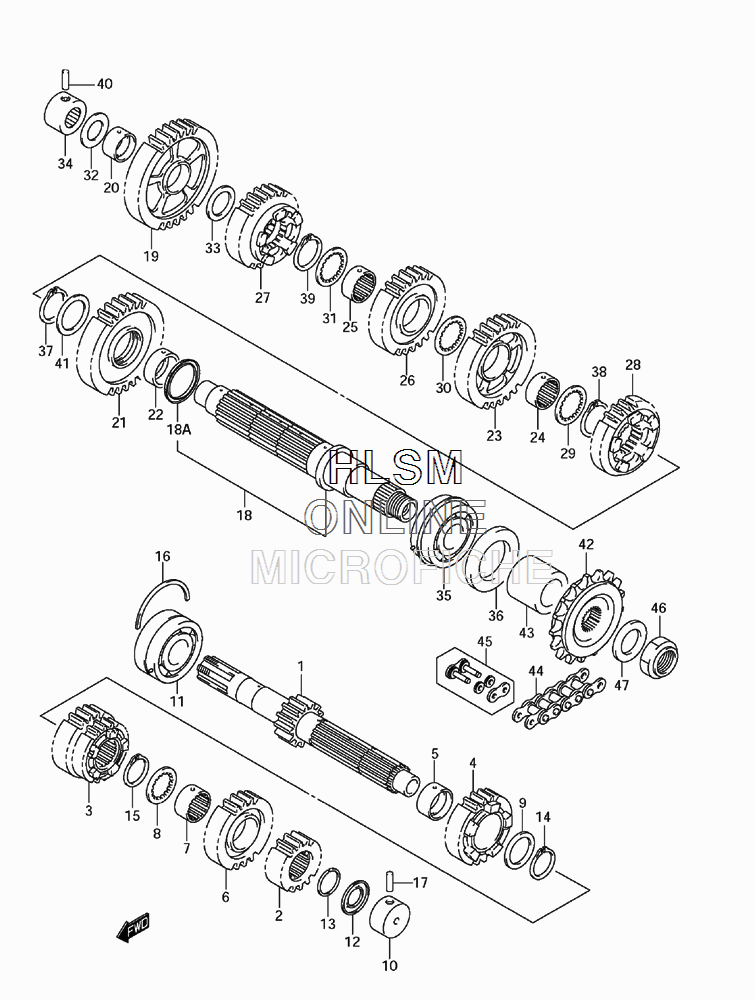

TRANSMISSION для Suzuki GSX-1300BK K8 B-KING W/ ABS - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    24120-24F00 SHAFT, CNTR (NT:13)
    SHAFT, CNTR (NT:13)
  • 2
    24221-15H00 GEAR, 2ND DRIVE (NT:16)
    GEAR, 2ND DRIVE (NT:16)
  • 3
    24231-15H00 GEAR, 3RD AND 4TH DRIVE NT:19/21
    GEAR, 3RD AND 4TH DRIVE NT:19/21
  • 4
    24251-15H00 GEAR, 5TH DRIVE (NT:22)
    GEAR, 5TH DRIVE (NT:22)
  • 5
    24252-24F10 BUSH, 5TH DRIVE GEAR
    BUSH, 5TH DRIVE GEAR
  • 6
    24261-15H00 GEAR, 6TH DRIVE (NT:23)
    GEAR, 6TH DRIVE (NT:23)
  • 7
    24262-24F10 BUSH, 6TH DRIVE GEAR
    BUSH, 6TH DRIVE GEAR
  • 8
    09167-27003 WASHER, 6TH DRIVE GEAR
    WASHER, 6TH DRIVE GEAR
  • 9
    09181-27014 WASHER, 5TH DRIVE GEAR 27X36X2.5
    WASHER, 5TH DRIVE GEAR 27X36X2.5
  • 10
    09263-20085 BEARING, CNTR SHAFT, L 20X34X17.5
    BEARING, CNTR SHAFT, L 20X34X17.5
  • 11
    09267-25012 BEARING, CNTR SHAFT, R 25X62X25.4
    BEARING, CNTR SHAFT, R 25X62X25.4
  • 12
    09285-20006 SEAL, OIL 20X31.2X2.7
    SEAL, OIL 20X31.2X2.7
  • 13
    09380-27004 CIRCLIP, 2ND DRIVE GEAR
    CIRCLIP, 2ND DRIVE GEAR
  • 14
    09380-27006 CIRCLIP, 5TH DRIVE GEAR
    CIRCLIP, 5TH DRIVE GEAR
  • 15
    09380-27006 CIRCLIP, 6TH DRIVE GEAR
    CIRCLIP, 6TH DRIVE GEAR
  • 16
    09390-62012 C RING, CNTR SHAFT BRG, R
    C RING, CNTR SHAFT BRG, R
  • 17
    04221-07209 PIN, CNTR SHAFT BRG, L
    PIN, CNTR SHAFT BRG, L
  • 18
    24130-15H00 SHAFT, DRIVE (INCL. 18A)
    SHAFT, DRIVE (INCL. 18A)
  • 18A
    24136-48G01 RING, DRIVE SHAFT FRICTION
    RING, DRIVE SHAFT FRICTION
  • 19
    24311-15H00 GEAR, 1ST DRIVEN (NT:34)
    GEAR, 1ST DRIVEN (NT:34)
  • 20
    24312-24F10 BUSH, 1ST DRIVEN GEAR
    BUSH, 1ST DRIVEN GEAR
  • 21
    24321-15H00 GEAR, 2ND DRIVEN (NT:31)
    GEAR, 2ND DRIVEN (NT:31)
  • 22
    24322-48G00 BUSH, 2ND DRIVEN GEAR
    BUSH, 2ND DRIVEN GEAR
  • 23
    24331-15H00 GEAR, 3RD DRIVEN (NT:29)
    GEAR, 3RD DRIVEN (NT:29)
  • 24
    24332-24F10 BUSH, 3RD DRIVEN GEAR
    BUSH, 3RD DRIVEN GEAR
  • 25
    24332-24F10 BUSH, 4TH DRIVEN GEAR
    BUSH, 4TH DRIVEN GEAR
  • 26
    24341-15H00 GEAR, 4TH DRIVEN (NT:27)
    GEAR, 4TH DRIVEN (NT:27)
  • 27
    24351-15H00 GEAR, 5TH DRIVEN (NT:25)
    GEAR, 5TH DRIVEN (NT:25)
  • 28
    24361-15H00 GEAR, 6TH DRIVEN (NT:24)
    GEAR, 6TH DRIVEN (NT:24)
  • 29
    09167-30008 WASHER, 3RD DRIVEN GEAR, L
    WASHER, 3RD DRIVEN GEAR, L
  • 30
    09167-30008 WASHER, 3RD AND 4TH DRIVE
    WASHER, 3RD AND 4TH DRIVE
  • 31
    09167-30008 WASHER, 4TH DRIVEN GEAR, R
    WASHER, 4TH DRIVEN GEAR, R
  • 32
    09181-20251 WASHER, 1ST DRIVEN GEAR, R
    WASHER, 1ST DRIVEN GEAR, R
  • 33
    09181-24005 WASHER, 1ST DRIVEN GEAR, L 24X34X1.0
    WASHER, 1ST DRIVEN GEAR, L 24X34X1.0
  • 34
    09263-20040 BEARING, DRIVE SHAFT, R 20X34X20
    BEARING, DRIVE SHAFT, R 20X34X20
  • 35
    09267-30011 BEARING, DRIVE SHAFT, L 30X62X23.8
    BEARING, DRIVE SHAFT, L 30X62X23.8
  • 36
    09283-42018 SEAL, DRIVE AHAFT OIL 42X62X7
    SEAL, DRIVE AHAFT OIL 42X62X7
  • 37
    09380-30009 CIRCLIP, 2ND DRIVEN GEAR
    CIRCLIP, 2ND DRIVEN GEAR
  • 38
    09380-30009 CIRCLIP, 3RD DRIVEN GEAR
    CIRCLIP, 3RD DRIVEN GEAR
  • 39
    09380-30009 CIRCLIP, 4TH DRIVEN GEAR
    CIRCLIP, 4TH DRIVEN GEAR
  • 40
    04221-07209 PIN, DRIVE SHAFT BRG, R
    PIN, DRIVE SHAFT BRG, R
  • 41
    08211-30405 WASHER, 2ND DRIVEN GEAR, R
    WASHER, 2ND DRIVEN GEAR, R
  • 42
    27510-15H00 SPROCKET, ENGINE (NT:18)
    SPROCKET, ENGINE (NT:18)
  • 43
    27531-23H00 SPACER, ENGINE SPROCKET 27X42X35.7
    SPACER, ENGINE SPROCKET 27X42X35.7
  • 44
    27600-24F60-118 CHAIN ASSY, DRIVE GB50GSVZ4, 118L
    CHAIN ASSY, DRIVE GB50GSVZ4, 118L
  • 45
    27620-24F60 JOINT SET, DRIVEN (OPT)
    JOINT SET, DRIVEN (OPT)
  • 46
    09159-22008 NUT, ENGINE SPROCKET
    NUT, ENGINE SPROCKET
  • 47
    09181-27016 WASHER, ENGINE SPROCKET 27X42X1.5
    WASHER, ENGINE SPROCKET 27X42X1.5
