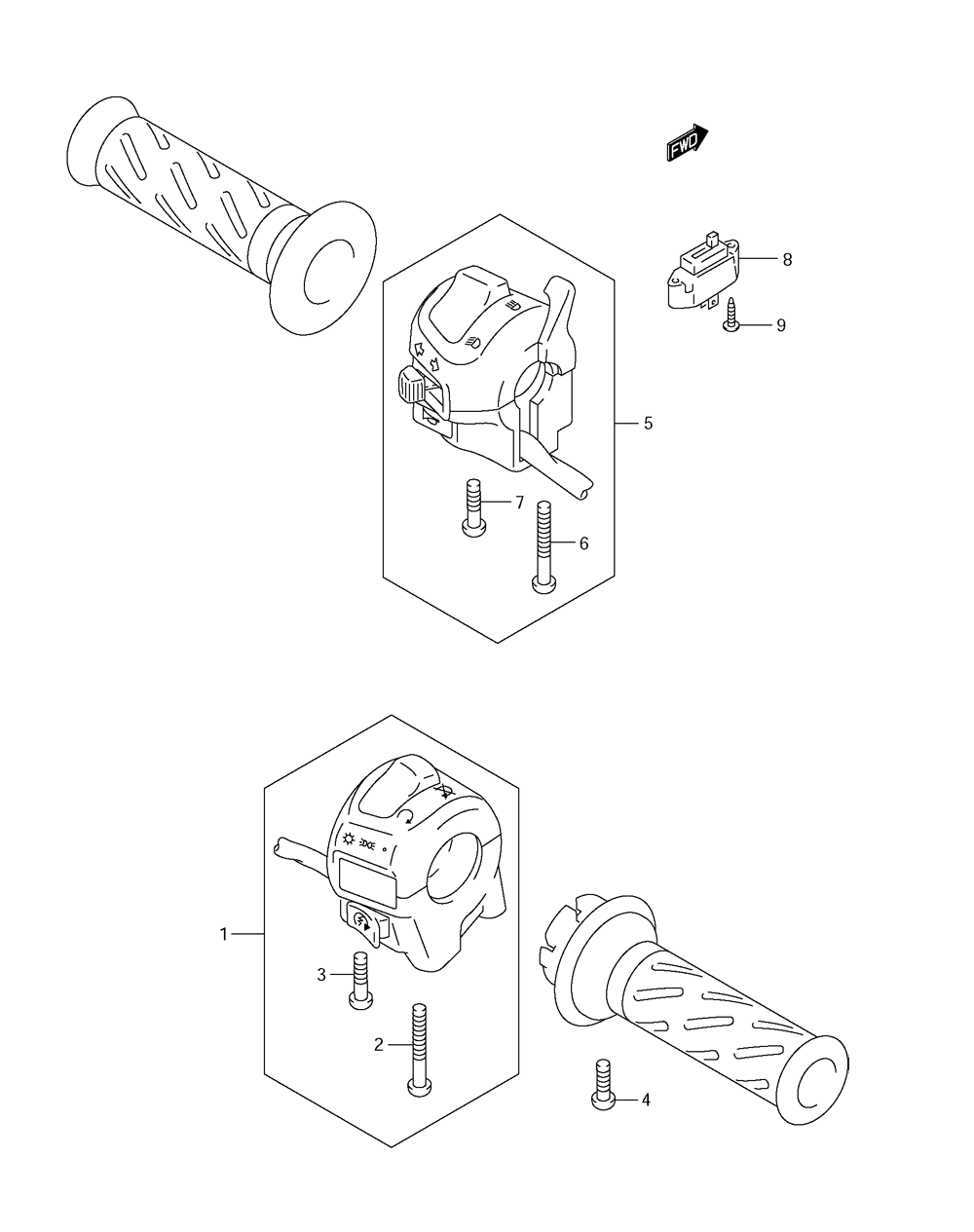

HANDLEBAR - LEVERS / SWITCHES для Suzuki GS500F K8 - 2008 года выпуска
-
№АртикулНазвание
-
137200-25DA0 SWITCH ASSEMBLY, HANDLE RIGHT HANDSWITCH ASSEMBLY, HANDLE RIGHT HAND
-
202112-0550B ...SCREW...SCREW
-
302112-0530B ...SCREW...SCREW
-
4D2116-0510B SCREW, THROTTLE CABLESCREW, THROTTLE CABLE
-
537400-23E30 SWITCH ASSEMBLY, HANDLE LEFT HANDSWITCH ASSEMBLY, HANDLE LEFT HAND
-
602112-0545B ...SCREW...SCREW
-
709125-05066 ...SCREW (5X25)...SCREW (5X25)
-
837560-31F00 SWITCH ASSEMBLY, CLUTCHSWITCH ASSEMBLY, CLUTCH
-
909132-03017 SCREW, CLUTCH SWITCH (3X4)SCREW, CLUTCH SWITCH (3X4)
-
10D8323-4103A WASHERWASHER
