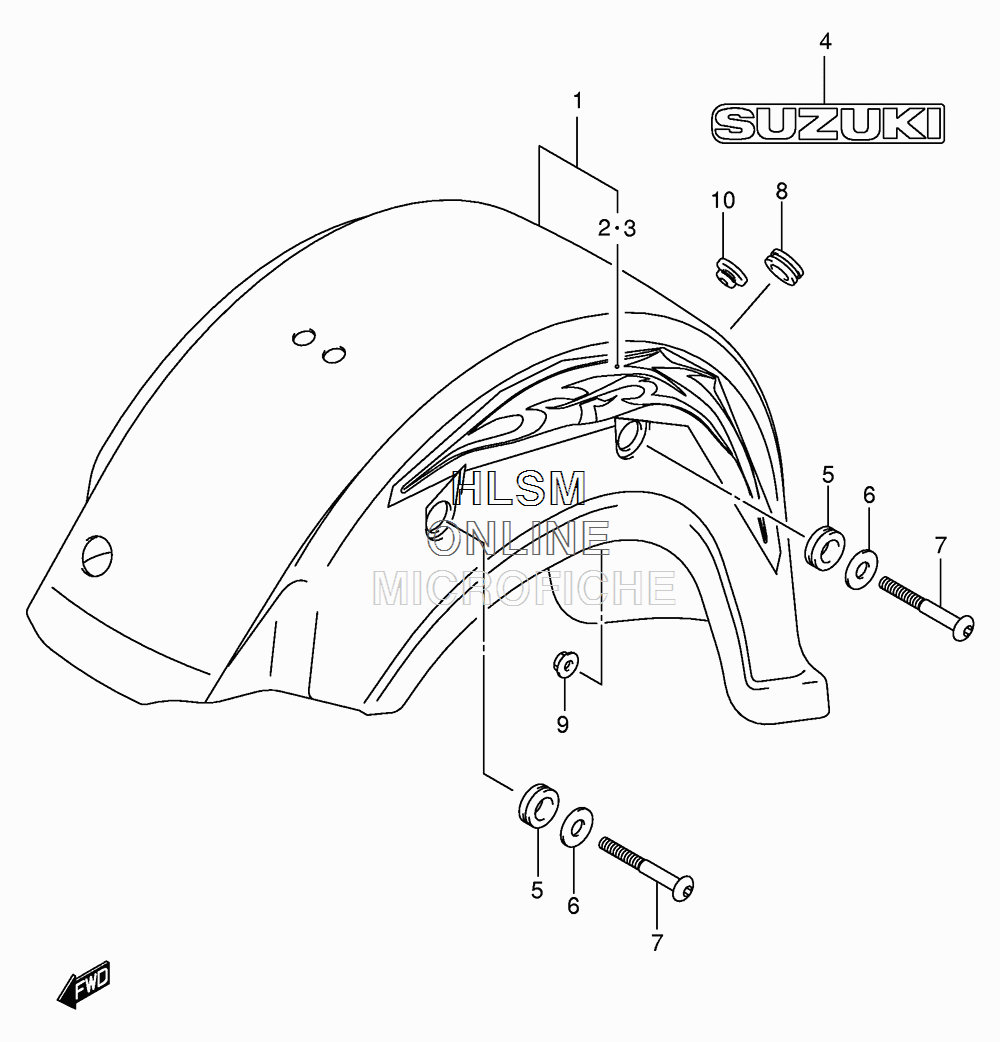

FENDER - REAR для Suzuki VL800C K7 - 2007 года выпуска
-
№АртикулНазвание
-
163110-41FG0-YHG FENDER, REAR (YHG - GRAY) (INC 2-4)FENDER, REAR (YHG - GRAY) (INC 2-4)
-
268175-41F20-EAY ...TAPE, RH (EAY - GRAY/GRAY)...TAPE, RH (EAY - GRAY/GRAY)
-
368176-41F20-EAY ...TAPE, LH (EAY - GRAY/GRAY)...TAPE, LH (EAY - GRAY/GRAY)
-
468271-34A00-YES ...EMBLEM (YES - SILVER)...EMBLEM (YES - SILVER)
-
547191-24F00 CUSHIONCUSHION
-
609160-15002 WASHERWASHER
-
763161-41F00 BOLTBOLT
-
809320-15008 CUSHION, PILLION SEATCUSHION, PILLION SEAT
-
908316-10083 NUTNUT
-
1009321-10007 CUSHION, BRACECUSHION, BRACE
