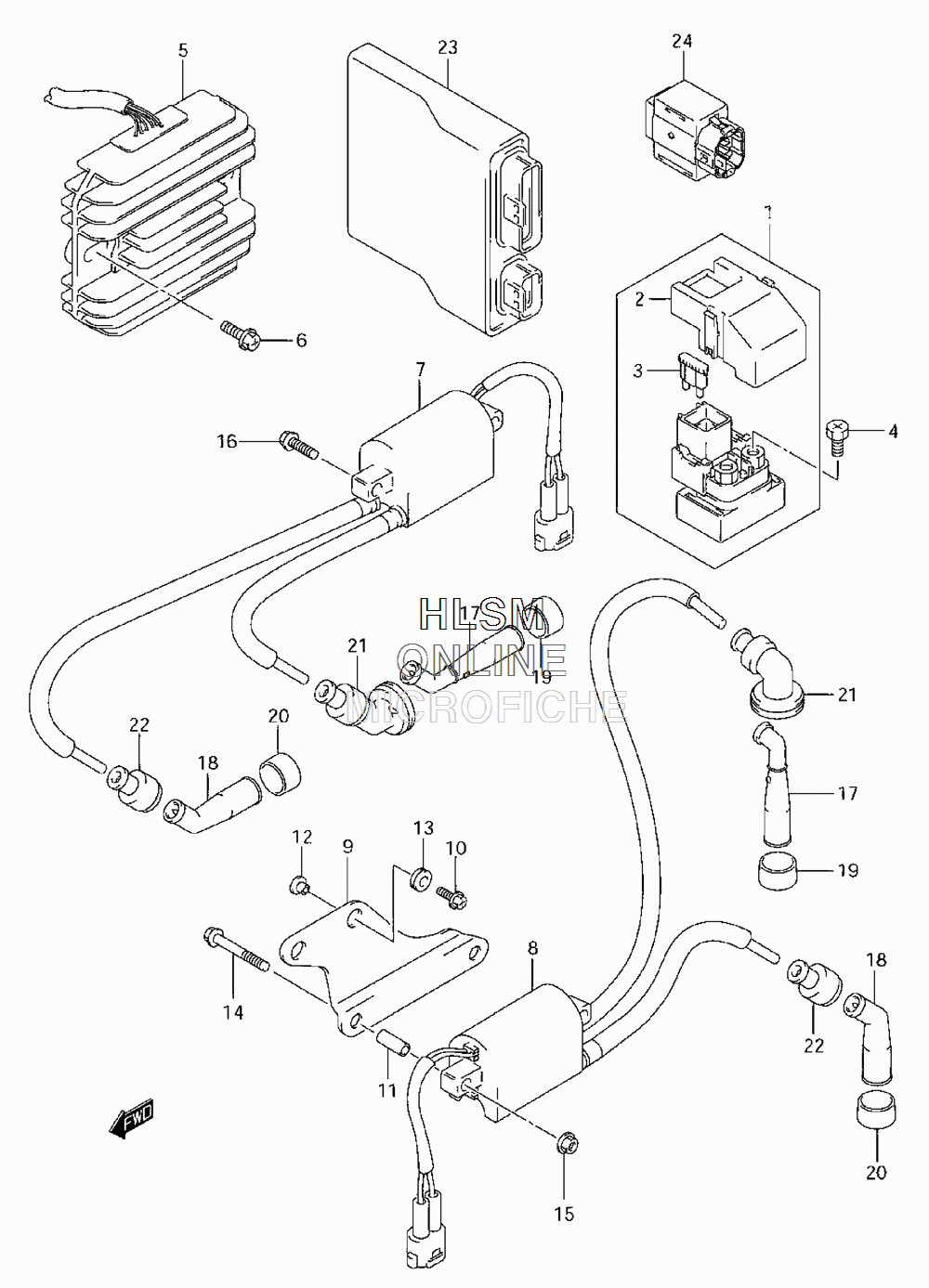

ELECTRICAL - IGNITION AND CONTROL UNITS для Suzuki SV650S K7 - 2007 года выпуска

  • №
    Артикул
    Название
  • 1
    31800-06G00 RELAY ASSY, STARTING MOTOR (INC. 2 - 3)
    RELAY ASSY, STARTING MOTOR (INC. 2 - 3)
  • 2
    31861-47E00 COVER, RELAY ASSY
    COVER, RELAY ASSY
  • 3
    09481-30101 FUSE (30A)
    FUSE (30A)
  • 4
    09128-06013 SCREW (6X8)
    SCREW (6X8)
  • 5
    32800-16G00 RECTIFIER ASSY
    RECTIFIER ASSY
  • 6
    02162-0620A BOLT
    BOLT
  • 7
    33410-17GA0 COIL ASSY, IGNITION (L:380) FOR FRONT
    COIL ASSY, IGNITION (L:380) FOR FRONT
  • 8
    33420-17GA0 COIL ASSY, IGNITION (L:350) FOR REAR
    COIL ASSY, IGNITION (L:350) FOR REAR
  • 9
    33424-17GA0 BRACKET, IGN COIL REAR
    BRACKET, IGN COIL REAR
  • 10
    09116-06130 BOLT, BRKT REAR (6X16)
    BOLT, BRKT REAR (6X16)
  • 11
    09180-06195 SPACER, IGN COIL REAR
    SPACER, IGN COIL REAR
  • 12
    09180-06325 SPACER, IGN COIL BRKT
    SPACER, IGN COIL BRKT
  • 13
    09320-06017 CUSHION, IGN COIL BRKT
    CUSHION, IGN COIL BRKT
  • 14
    01547-0640A BOLT, IGN REAR
    BOLT, IGN REAR
  • 15
    08316-1006A NUT, IGN REAR
    NUT, IGN REAR
  • 16
    01547-06203 BOLT, IGN FRONT
    BOLT, IGN FRONT
  • 17
    33510-17G00 CAP ASSY, SPARK PLUG (CENTER)
    CAP ASSY, SPARK PLUG (CENTER)
  • 18
    33510-20E00 CAP ASSY, SPARK (SIDE)
    CAP ASSY, SPARK (SIDE)
  • 19
    33541-23E01 SEAL, SPARK PLUG CAP (CENTER)
    SEAL, SPARK PLUG CAP (CENTER)
  • 20
    33541-47D00 SEAL, SPARK PLUG CAP (SIDE)
    SEAL, SPARK PLUG CAP (SIDE)
  • 21
    33542-17G00 SEAL, HIGH TENSION (CENTER)
    SEAL, HIGH TENSION (CENTER)
  • 22
    33542-38B00 SEAL, HIGH TENSION (SIDE)
    SEAL, HIGH TENSION (SIDE)
  • 23
    32920-17GC0 CONTROL UNIT, FI (ALL EXCEPT CALIF.)
    CONTROL UNIT, FI (ALL EXCEPT CALIF.)
  • 23
    32920-17GD0 CONTROL UNIT, FI (CALIF. ONLY)
    CONTROL UNIT, FI (CALIF. ONLY)
  • 24
    33960-06G10 SENSOR ASSY, FUEL CUT
    SENSOR ASSY, FUEL CUT
