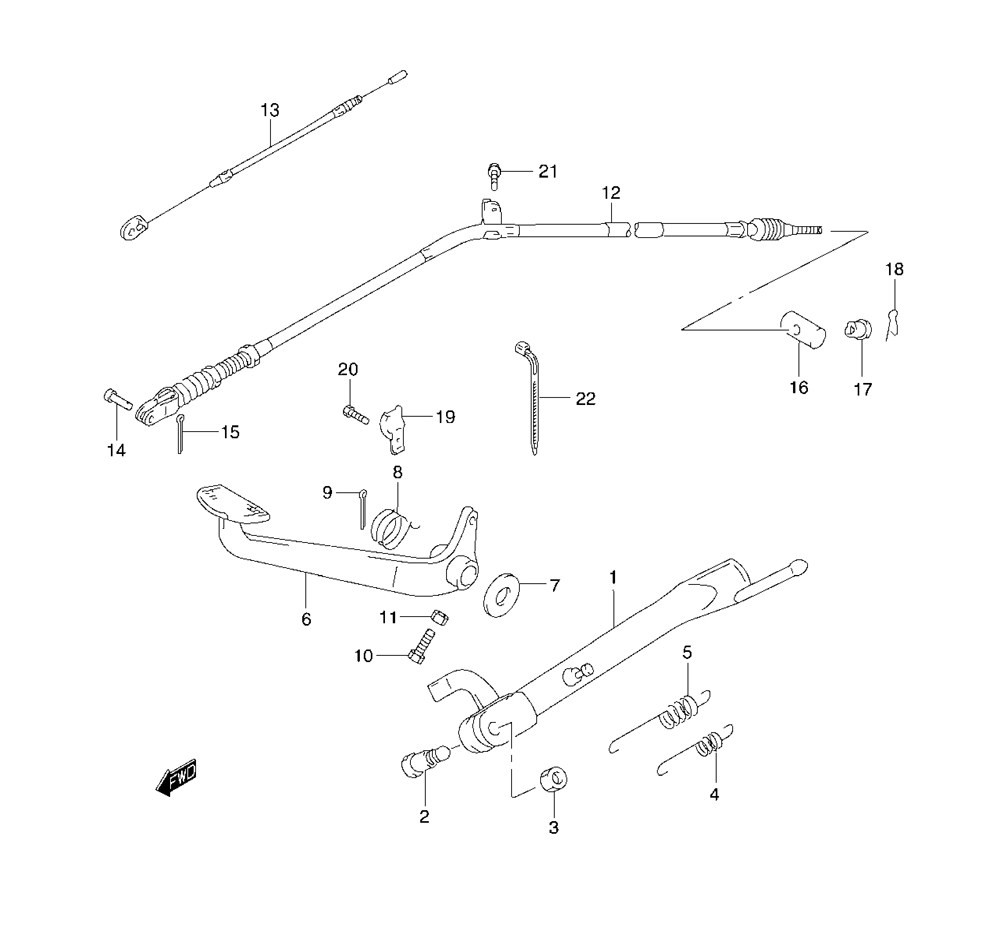

BRAKE PEDAL W/ STAND для Suzuki GZ250 K7 - 2007 года выпуска`
-
№АртикулНазвание
-
142310-13F10 STAND, PROPSTAND, PROP
-
209111-10027 BOLTBOLT
-
309159-10097 NUTNUT
-
409443-14066 SPRINGSPRING
-
509443-19012 SPRINGSPRING
-
643110-13FA0 PEDAL, BRAKEPEDAL, BRAKE
-
709160-16043 WASHER (16.5X22X1.0)WASHER (16.5X22X1.0)
-
809448-31034 SPRINGSPRING
-
904111-30258 COTTER PINCOTTER PIN
-
1001500-06207 BOLTBOLT
-
1108310-00067 NUTNUT
-
1258510-13F00 CABLE, REAR BRAKECABLE, REAR BRAKE
-
1358830-13F00 CABLE, STOP LAMP SWITCHCABLE, STOP LAMP SWITCH
-
1409200-05001 PIN, REAR BRAKE CABLEPIN, REAR BRAKE CABLE
-
1504111-20158 COTTER PINCOTTER PIN
-
1609209-13001 PIN, REAR BRAKE ADJ. CABLEPIN, REAR BRAKE ADJ. CABLE
-
1709150-06001 NUTNUT
-
1809385-06012 SNAP PINSNAP PIN
-
1958621-12F00 GUIDE, REAR BRAKE CABLEGUIDE, REAR BRAKE CABLE
-
2001550-06123 BOLTBOLT
-
2101550-06123 BOLTBOLT
-
2209407-14407 CLAMP (L:145)CLAMP (L:145)
