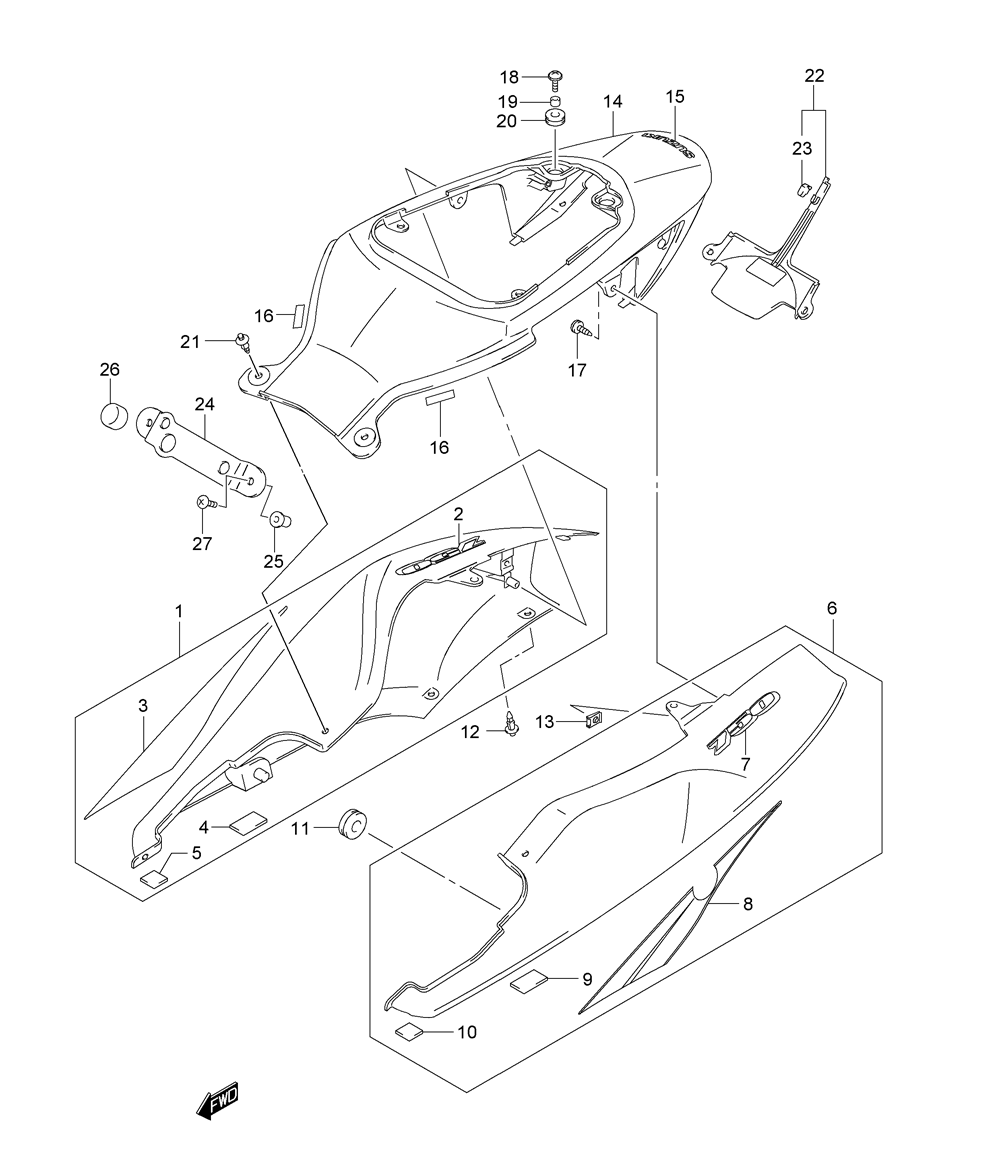

SEAT TAIL COVER для Suzuki GSX-R750 K7 - 2007 года выпуска

№

Артикул

Название
1

45501-02H10-YHG COVER, SEAT TAIL, RIGHT (GRAY, YHG FOR CRT)

COVER, SEAT TAIL, RIGHT (GRAY, YHG FOR CRT)
1

45501-02H10-YKV COVER, SEAT TAIL, RIGHT (BLACK, YKV FOR CRU)

COVER, SEAT TAIL, RIGHT (BLACK, YKV FOR CRU)
1

45501-02H10-019 COVER, SEAT TAIL, RIGHT (BLACK, 019 FOR BMV)

COVER, SEAT TAIL, RIGHT (BLACK, 019 FOR BMV)
1

45501-02H20-YBD COVER, SEAT TAIL, RIGHT (WHITE, YBD FOR CWH)

COVER, SEAT TAIL, RIGHT (WHITE, YBD FOR CWH)
2

68161-02H00-LV8 EMBLEM, 750, RIGHT (FOR YBD)

EMBLEM, 750, RIGHT (FOR YBD)
2

68161-02H00-CVZ EMBLEM, 750, RIGHT (FOR YHG)

EMBLEM, 750, RIGHT (FOR YHG)
2

68161-02H00-CVY EMBLEM, 750, RIGHT (FOR 019)

EMBLEM, 750, RIGHT (FOR 019)
3

68165-02H10-DZE TAPE, SEAT TAIL COVER, RIGHT (FOR YBD)

TAPE, SEAT TAIL COVER, RIGHT (FOR YBD)
4

45516-01H00 CUSHION, REAR

CUSHION, REAR
5

45517-01H00 CUSHION, FRONT

CUSHION, FRONT
6

45502-02H10-YHG COVER, SEAT TAIL, LEFT (GRAY, YHG FOR CRT)

COVER, SEAT TAIL, LEFT (GRAY, YHG FOR CRT)
6

45502-02H10-YKV COVER, SEAT TAIL, LEFT (SILVER, YKV FOR CRU)

COVER, SEAT TAIL, LEFT (SILVER, YKV FOR CRU)
6

45502-02H10-019 COVER, SEAT TAIL, LEFT (BLACK, 019 FOR BMV)

COVER, SEAT TAIL, LEFT (BLACK, 019 FOR BMV)
6

45502-02H20-YBD COVER, SEAT TAIL, LEFT (WHITE, YBD FOR CWH)

COVER, SEAT TAIL, LEFT (WHITE, YBD FOR CWH)
7

68171-02H00-LV8 EMBLEM, 750, LEFT (FOR YBD)

EMBLEM, 750, LEFT (FOR YBD)
7

68171-02H00-CVZ EMBLEM, 750, LEFT (FOR YHG)

EMBLEM, 750, LEFT (FOR YHG)
7

68171-02H00-CVY EMBLEM, 750, LEFT (FOR 019)

EMBLEM, 750, LEFT (FOR 019)
8

68175-02H10-DZE TAPE, SEAT TAIL COVER, LEFT (FOR YBD)

TAPE, SEAT TAIL COVER, LEFT (FOR YBD)
9

45516-01H00 CUSHION, RR

CUSHION, RR
10

45517-01H00 CUSHION, FR

CUSHION, FR
11

09320-08028 CUSHION, SEAT TAIL COVER FRONT

CUSHION, SEAT TAIL COVER FRONT
12

09409-06314-5PK CLIP, SEAT TAIL COVER

CLIP, SEAT TAIL COVER
13

09148-05038 NUT, SEAT TAIL COVER CENTER

NUT, SEAT TAIL COVER CENTER
14

45503-01H01-YKY COVER, SEAT TAIL CENTER (BLUE, YKY FOR CWH)

COVER, SEAT TAIL CENTER (BLUE, YKY FOR CWH)
14

45503-01H01-YBA COVER, SEAT TAIL CENTER (BLUE, YBA FOR BMV)

COVER, SEAT TAIL CENTER (BLUE, YBA FOR BMV)
14

45503-01H01-019 COVER, SEAT TAIL CENTER (BLACK, 019 FOR CRU)

COVER, SEAT TAIL CENTER (BLACK, 019 FOR CRU)
14

45503-01H01-YHF COVER, SEAT TAIL CENTER (GRAY, YHF FOR CRT)

COVER, SEAT TAIL CENTER (GRAY, YHF FOR CRT)
15

68281-01H00-YD8 EMBLEM, SUZUKI (SILVER) (FOR YKY)

EMBLEM, SUZUKI (SILVER) (FOR YKY)
15

68281-01H00-YU8 EMBLEM, SUZUKI (GRAY) (FOR YBA/019YHF)

EMBLEM, SUZUKI (GRAY) (FOR YBA/019YHF)
16

94443-06G00 TAPE, SEAT TAIL COVER CENTER

TAPE, SEAT TAIL COVER CENTER
17

03241-1516A SCREW, SEAT TAIL COVER

SCREW, SEAT TAIL COVER
18

09116-06011-A05 SCREW, SEAT TAIL COVER

SCREW, SEAT TAIL COVER
19

09180-06283-A05 SPACER, SEAT TAIL COVER

SPACER, SEAT TAIL COVER
20

09320-10059 CUSHION, SEAT TAIL COVER

CUSHION, SEAT TAIL COVER
21

09409-06314-5PK CLIP, SEAT TAIL COVER UPPER

CLIP, SEAT TAIL COVER UPPER
22

45504-01H00-YKY COVER, SEAT TAIL RIGHT (BLUE, YKY FOR CWH)

COVER, SEAT TAIL RIGHT (BLUE, YKY FOR CWH)
22

45504-01H00-YBA COVER, SEAT TAIL RIGHT (BLUE, YBA FOR BMV)

COVER, SEAT TAIL RIGHT (BLUE, YBA FOR BMV)
22

45504-01H00-019 COVER, SEAT TAIL RIGHT (BLACK, 019 FOR BMV)

COVER, SEAT TAIL RIGHT (BLACK, 019 FOR BMV)
22

45504-01H00-YHF COVER, SEAT TAIL RIGHT (GRAY, YHF FOR CRT)

COVER, SEAT TAIL RIGHT (GRAY, YHF FOR CRT)
23

45515-01H00 CUSHION, SEAT TAIL COVER

CUSHION, SEAT TAIL COVER
24

45250-01H00 BRACKET, SEAT TAIL COVER

BRACKET, SEAT TAIL COVER
25

09159-05019 NUT, SEAT TAIL COVER BRACKET

NUT, SEAT TAIL COVER BRACKET
26

09321-10011 CUSHION, SEAT TAIL COVER BRACKET

CUSHION, SEAT TAIL COVER BRACKET
27

02142-0520A SCREW, SEAT TAIL COVER BRACKET

SCREW, SEAT TAIL COVER BRACKET
