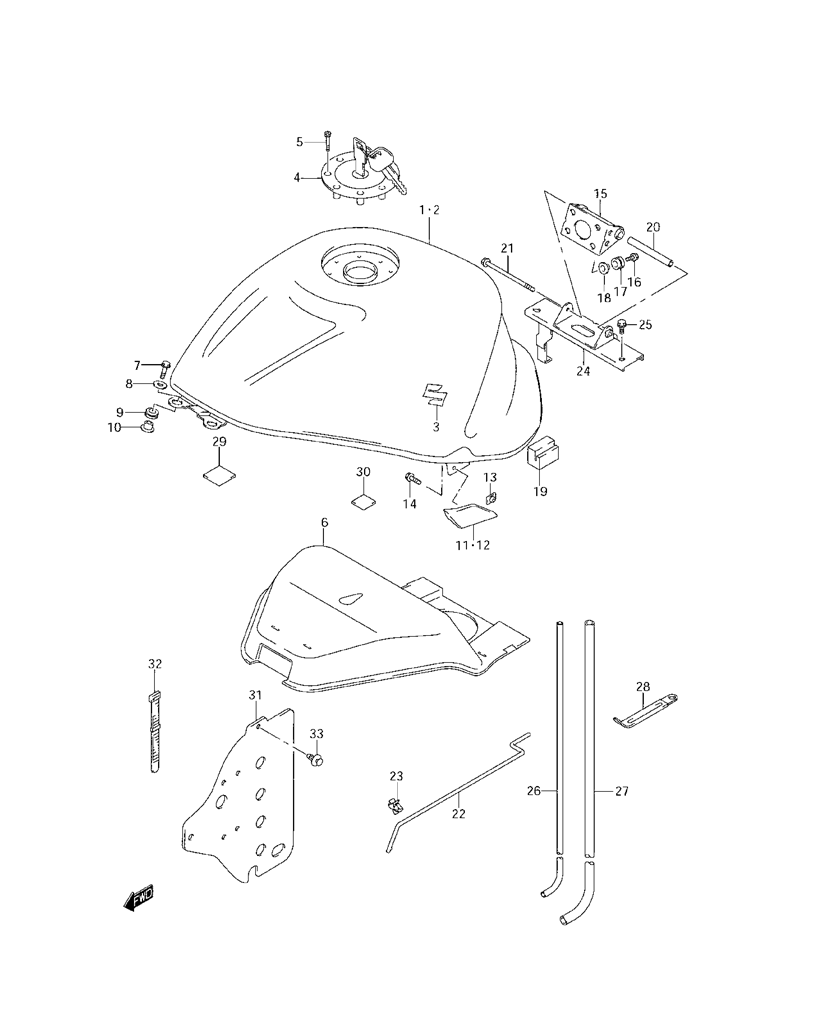

FUEL TANK для Suzuki GSX-1300R LTD K7 - 2007 года выпуска
-
№АртикулНазвание
-
144100-24FK0-YAY TANK ASSY, FUEL (BLACK, YAY) (EXCEPT CALIF.)TANK ASSY, FUEL (BLACK, YAY) (EXCEPT CALIF.)
-
144100-24FK0-YHL TANK ASSY, FUEL (RED, YHL) (EXCEPT CALIF.)TANK ASSY, FUEL (RED, YHL) (EXCEPT CALIF.)
-
144100-24FK0-YKY TANK ASSY, FUEL (BLUE, YKY) (EXCEPT CALIF.)TANK ASSY, FUEL (BLUE, YKY) (EXCEPT CALIF.)
-
244100-24FL0-YAY TANK ASSY, FUEL (BLACK, YAY) (CALIF. ONLY)TANK ASSY, FUEL (BLACK, YAY) (CALIF. ONLY)
-
244100-24FL0-YHL TANK ASSY, FUEL (RED, YHL) (CALIF. ONLY)TANK ASSY, FUEL (RED, YHL) (CALIF. ONLY)
-
244100-24FL0-YKY TANK ASSY, FUEL (BLUE, YKY) (CALIF. ONLY)TANK ASSY, FUEL (BLUE, YKY) (CALIF. ONLY)
-
368111-18G20 EMBLEM,"S"EMBLEM,"S"
-
444201-33810 CAP SET, FUEL TANK (EXCEPT CALIF.)CAP SET, FUEL TANK (EXCEPT CALIF.)
-
444200-33890 CAP SET, FUEL TANK (CALIF. ONLY)CAP SET, FUEL TANK (CALIF. ONLY)
-
509106-05017 BOLTBOLT
-
644191-24F10 SHIELD, HEATSHIELD, HEAT
-
709139-06029 BOLT, FRONTBOLT, FRONT
-
809160-06036 WASHERWASHER
-
909320-09009 CUSHIONCUSHION
-
1009169-06062 SPACERSPACER
-
1144533-24F00 COVER, SIDE RIGHT HANDCOVER, SIDE RIGHT HAND
-
1244543-24F00 COVER, SIDE LEFT HANDCOVER, SIDE LEFT HAND
-
1344540-24F10 PLATE, SIDEPLATE, SIDE
-
1402142-0610B SCREWSCREW
-
1544560-24F01 BRACKET, TANKBRACKET, TANK
-
1609116-06152 BOLTBOLT
-
1709320-08001 CUSHIONCUSHION
-
1809169-06062 SPACERSPACER
-
1944541-24F00 CUSHION, JOINTCUSHION, JOINT
-
2044561-33E10 SPACERSPACER
-
2101550-0895B BOLTBOLT
-
2244574-33E01 STAYSTAY
-
2309403-05310 CLIPCLIP
-
2444550-24F00 BRACKET, REARBRACKET, REAR
-
2501550-0812B BOLT, LOWERBOLT, LOWER
-
2644423-24F00 HOSE, BREATHERHOSE, BREATHER
-
2709352-70113-600 HOSE, DRAINHOSE, DRAIN
-
2809404-06431 CLAMP, DRAIN HOSECLAMP, DRAIN HOSE
-
2944534-24F00 CUSHION, FRONTCUSHION, FRONT
-
3044535-24F00 CUSHION, REARCUSHION, REAR
-
3144271-24F00 SHEET, HEAT SHIELD RUBBERSHEET, HEAT SHIELD RUBBER
-
3209407-18402 CLAMPCLAMP
-
3309409-06322-5PK CLIP (BLACK)CLIP (BLACK)
