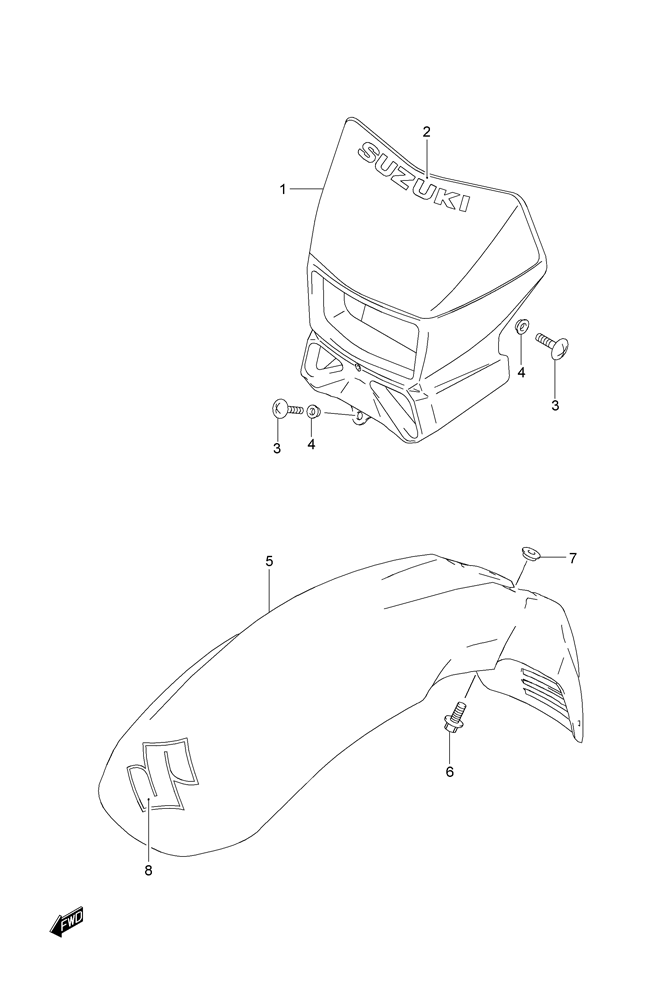

HEADLAMP HOUSING для Suzuki DR650SE K7 - 2007 года выпуска
-
№АртикулНазвание
-
151811-29F50-YLW COVER, HEAD LAMP (BLUE, YLW FOR N9J)COVER, HEAD LAMP (BLUE, YLW FOR N9J)
-
151811-29F50-019 COVER, HEAD LAMP (BLACK, 019 FOR 019)COVER, HEAD LAMP (BLACK, 019 FOR 019)
-
268725-29F30-8YM TAPETAPE
-
302142-06123 SCREW, COVER SIDESCREW, COVER SIDE
-
409169-06033 WASHER, COVER SIDEWASHER, COVER SIDE
-
553111-13E00-YJ4 FENDER, FRONT (BLUE FOR N9J)FENDER, FRONT (BLUE FOR N9J)
-
609116-06170 BOLTBOLT
-
709169-06073 WASHERWASHER
-
868151-07G10-YCF EMBLEM, ''S''EMBLEM, ''S''
