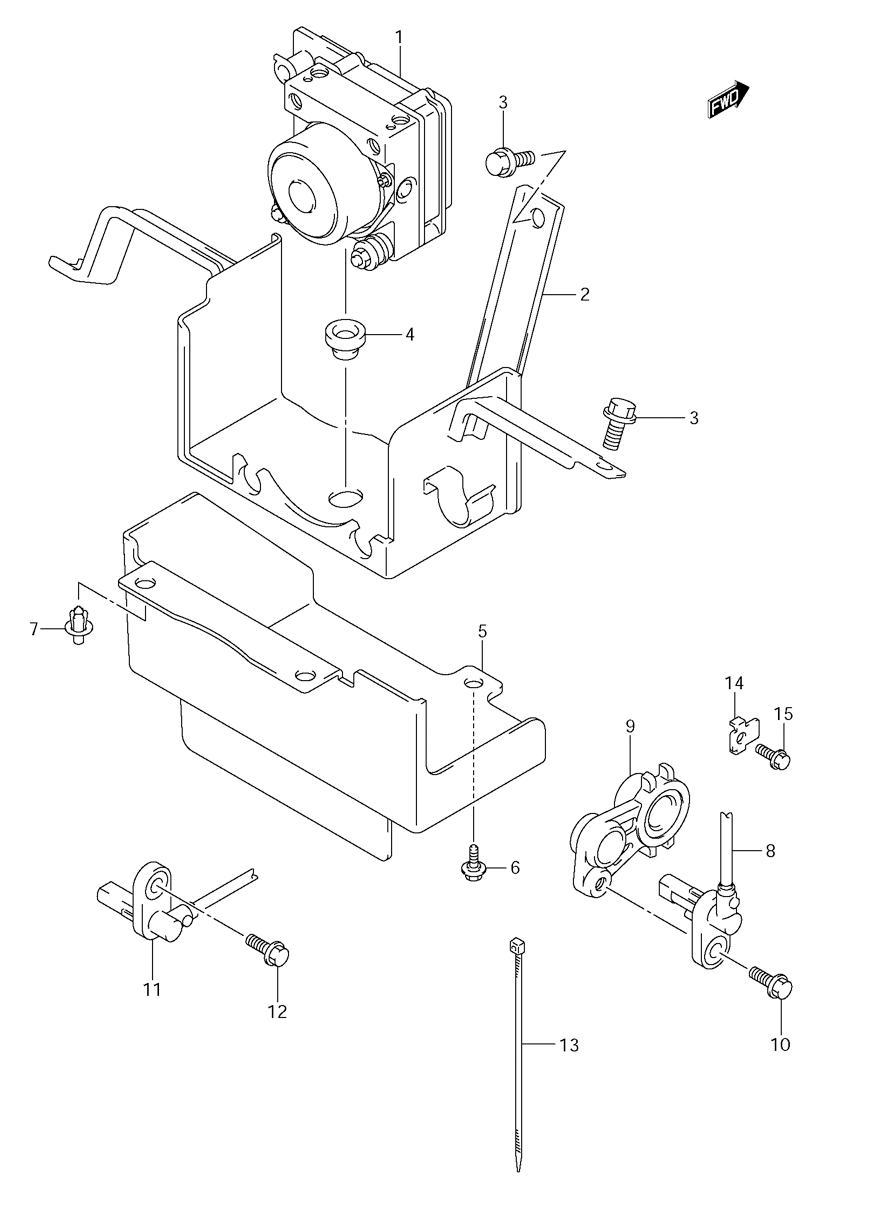

HYDRAULIC UNIT для Suzuki DL650 ABS K7 - 2007 года выпуска
-
№АртикулНазвание
-
155610-27G01 UNIT ASSEMBLY, HYDRAULIC ABSUNIT ASSEMBLY, HYDRAULIC ABS
-
255660-27G00 HOLDER, HYDRAULIC UNIT ABSHOLDER, HYDRAULIC UNIT ABS
-
301550-0616A BOLT, HOLDERBOLT, HOLDER
-
456121-58J00 RUBBER, UNIT MOUNTINGRUBBER, UNIT MOUNTING
-
555667-27G10 COVER, HYDRAULIC UNITCOVER, HYDRAULIC UNIT
-
609111-06065 BOLTBOLT
-
709409-08308-5ES CLIPCLIP
-
855710-27G00 SENSOR, FR WHEEL ABSSENSOR, FR WHEEL ABS
-
955720-27G00 BRACKET, SENSOR FRBRACKET, SENSOR FR
-
1001550-0816A BOLTBOLT
-
1165710-27G00 SENSOR, RR WHEEL ABSSENSOR, RR WHEEL ABS
-
1201550-0816A BOLTBOLT
-
1309407-14407 CLAMP, SENSORCLAMP, SENSOR
-
1434938-14F00 GUIDE, SENSOR LEADGUIDE, SENSOR LEAD
-
1501547-0612B BOLTBOLT
