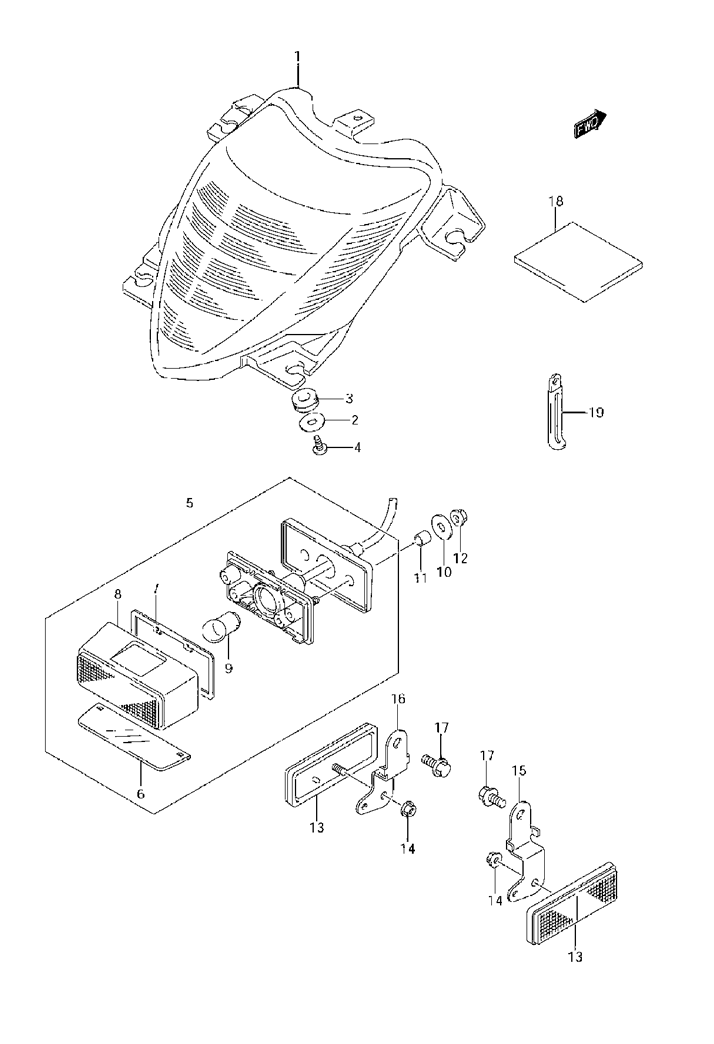

TAILLIGHT ASSY. - REAR для Suzuki VZR1800 - 2006 года выпуска`
-
№АртикулНазвание
-
135710-48G30 LAMP ASSY, REAR COMBLAMP ASSY, REAR COMB
-
209160-05501 WASHER, REAR COMBWASHER, REAR COMB
-
309320-10054 CUSHION, REAR COMBCUSHION, REAR COMB
-
403541-0512A SCREW, REAR COMBSCREW, REAR COMB
-
535910-41G00 LAMP ASSY, LICENSE (INCL. 6-9)LAMP ASSY, LICENSE (INCL. 6-9)
-
635912-41G00 LENS, LICENSELENS, LICENSE
-
735913-41G00 GASKETGASKET
-
835917-41G00 COVER, LICENSE LAMPCOVER, LICENSE LAMP
-
909471-12140 BULB (12V5W,BF150-40160A)BULB (12V5W,BF150-40160A)
-
1009160-06077 WASHER, LICENSE LAMPWASHER, LICENSE LAMP
-
1109180-06261 SPACER, LICENSE LAMPSPACER, LICENSE LAMP
-
1208316-1006A NUT, LICENSE LAMPNUT, LICENSE LAMP
-
1335970-07F00 REFLECTOR ASSY, REAR SIDEREFLECTOR ASSY, REAR SIDE
-
1408316-1005A NUT, REAR SIDE RRNUT, REAR SIDE RR
-
1535975-48G00 BRACKET, REAR SIDE RR, RBRACKET, REAR SIDE RR, R
-
1635976-48G00 BRACKET, REAR SIDE RR, LBRACKET, REAR SIDE RR, L
-
1702162-0612A SCREW, REAR SIDE RR BRKTSCREW, REAR SIDE RR BRKT
-
1892213-33G00 CUSHION, REAR COMBCUSHION, REAR COMB
-
1909404-06429 CLAMP (L:45)CLAMP (L:45)
-
1909404-10204 CLAMP (L:62)CLAMP (L:62)
