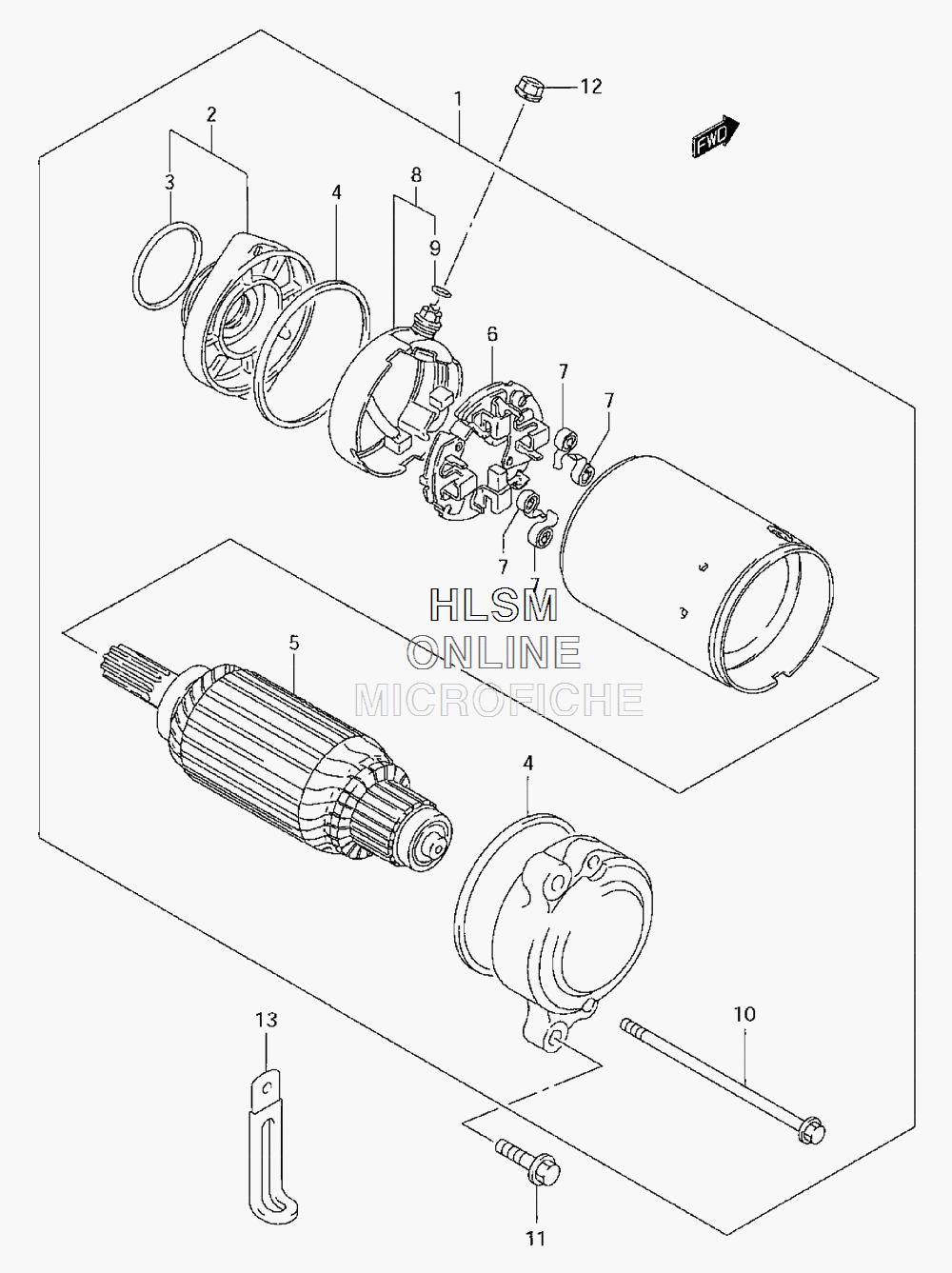

STARTING MOTOR для Suzuki VS1400 GLP K6 - 2006 года выпуска`
-
№АртикулНазвание
-
131100-38B02 MOTOR ASSY, STARTING (INC 2 - 10)MOTOR ASSY, STARTING (INC 2 - 10)
-
231150-38B00 BRACKET SET, FRONTBRACKET SET, FRONT
-
309280-35003 O RING (D:2,ID:35)O RING (D:2,ID:35)
-
431264-31300 O RINGO RING
-
531310-38B01 ARMATUREARMATURE
-
631132-38B00 HOLDER SET, BRUSHHOLDER SET, BRUSH
-
731135-38B00 SPRING, BRUSHSPRING, BRUSH
-
831130-38B00 TERMINAL SET, BRUSHTERMINAL SET, BRUSH
-
931143-49040 O RINGO RING
-
1031281-24B10 BOLTBOLT
-
1109103-06212 BOLT (6X25)BOLT (6X25)
-
1208361-3506A NUTNUT
-
1309404-06429 CLAMP (L:45)CLAMP (L:45)
