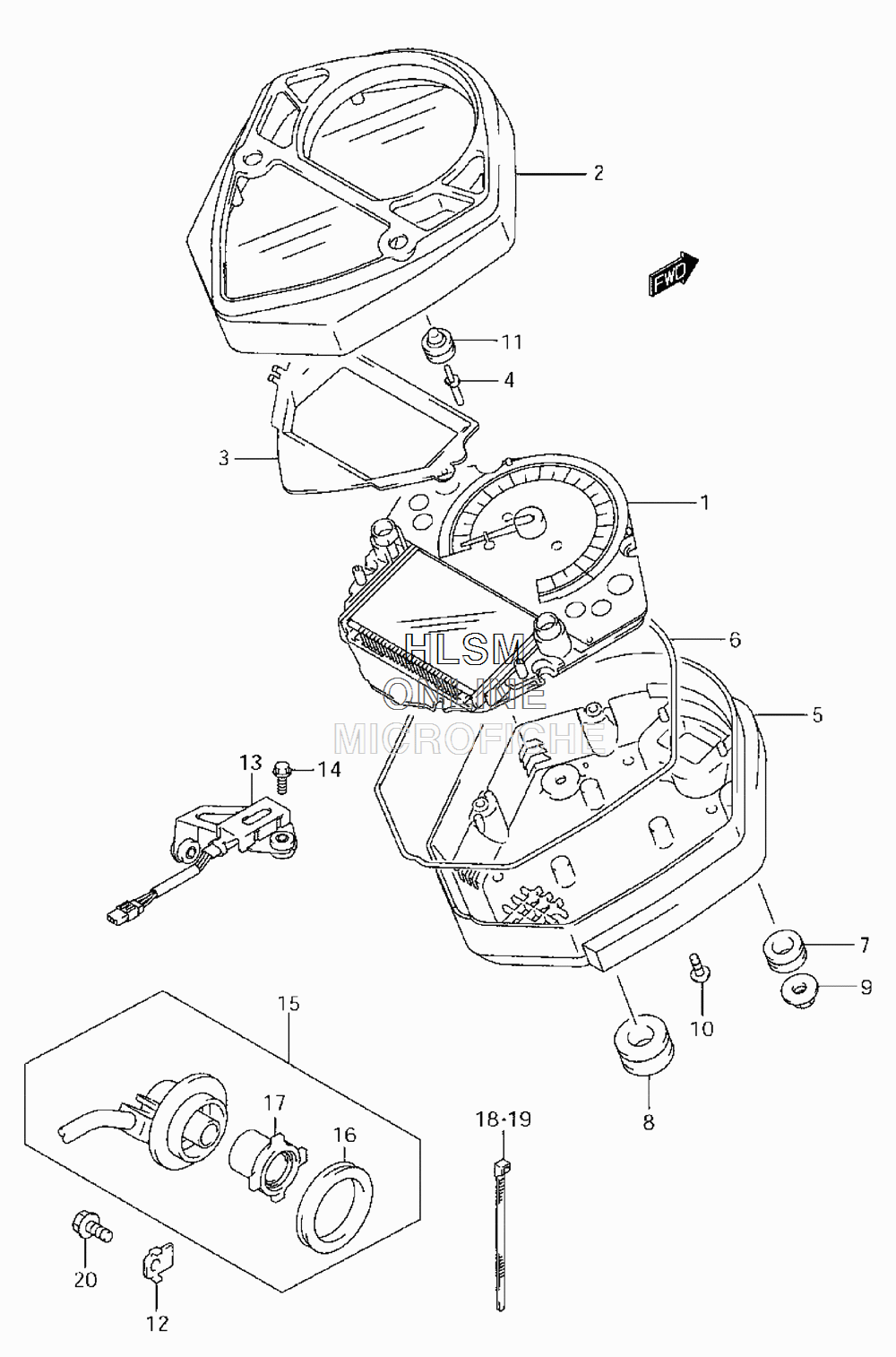

SPEEDOMETER для Suzuki SV650S K6 - 2006 года выпуска`
-
№АртикулНазвание
-
134120-17G80 SPEEDOMETER (MILE/KILO)SPEEDOMETER (MILE/KILO)
-
134120-17G60 SPEEDOMETER (KILO) (CAN.)SPEEDOMETER (KILO) (CAN.)
-
234150-16G00 CASE, SPEEDOMETER UPPERCASE, SPEEDOMETER UPPER
-
334125-16G00 PLATE, SPEEDOMETERPLATE, SPEEDOMETER
-
434124-16G00 KNOB, SPEEDOMETERKNOB, SPEEDOMETER
-
534152-16G00 CASE, SPEEDOMETER LOWERCASE, SPEEDOMETER LOWER
-
634153-16G00 GASKET, METER CASEGASKET, METER CASE
-
734189-32B00 CUSHION, SPEEDOMETERCUSHION, SPEEDOMETER
-
834955-13E00 CUSHION, SPEEDOMETERCUSHION, SPEEDOMETER
-
909159-05044 NUT, SPEEDOMETERNUT, SPEEDOMETER
-
1034183-16G30 SCREW, SPEEDOMETERSCREW, SPEEDOMETER
-
1134126-16G00 COVERCOVER
-
1234938-14F00 GUIDE, SENSOR LEADGUIDE, SENSOR LEAD
-
1336510-16G00 RESISTOR ASSYRESISTOR ASSY
-
1409116-06047 BOLT (6X25)BOLT (6X25)
-
1534990-17G30 SENSOR, SPEED (INC. 16 - 17)SENSOR, SPEED (INC. 16 - 17)
-
1609286-44001 SEAL, SENSOR OILSEAL, SENSOR OIL
-
1734983-27G00 MAGNETMAGNET
-
1809407-10404 CLAMP (L:100)CLAMP (L:100)
-
1909407-14403 CLAMP (L:125)CLAMP (L:125)
-
2001547-06123 BOLT 6X12 BLKBOLT 6X12 BLK
