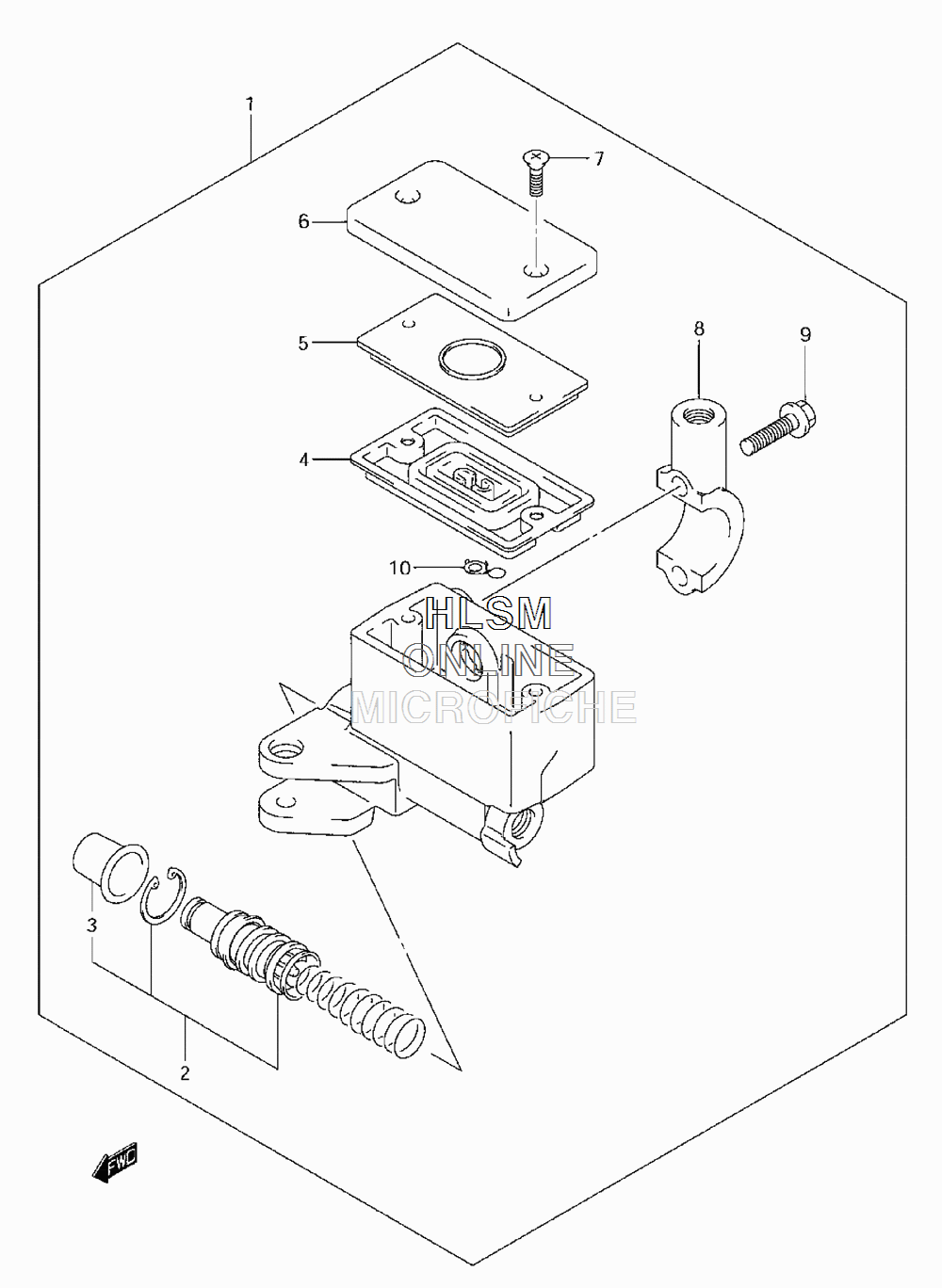

BRAKE - FRONT MASTER CYLINDER для Suzuki SV650A K6 - 2006 года выпуска
-
№АртикулНазвание
-
159600-42F00 CYLINDER ASSY, FRONT MASTER (INC. 2 - 10)CYLINDER ASSY, FRONT MASTER (INC. 2 - 10)
-
259600-45860 PISTON/CUP SETPISTON/CUP SET
-
359666-44300 BOOTBOOT
-
459667-49460 DIAPHRAGMDIAPHRAGM
-
559668-41C00 PLATE, DIAPHRAGMPLATE, DIAPHRAGM
-
659669-10G00 CAPCAP
-
769689-49300 SCREWSCREW
-
859671-32F00 HOLDERHOLDER
-
959675-02FA0 BOLT (6X22)BOLT (6X22)
-
1059664-32F00 PROTECTORPROTECTOR
