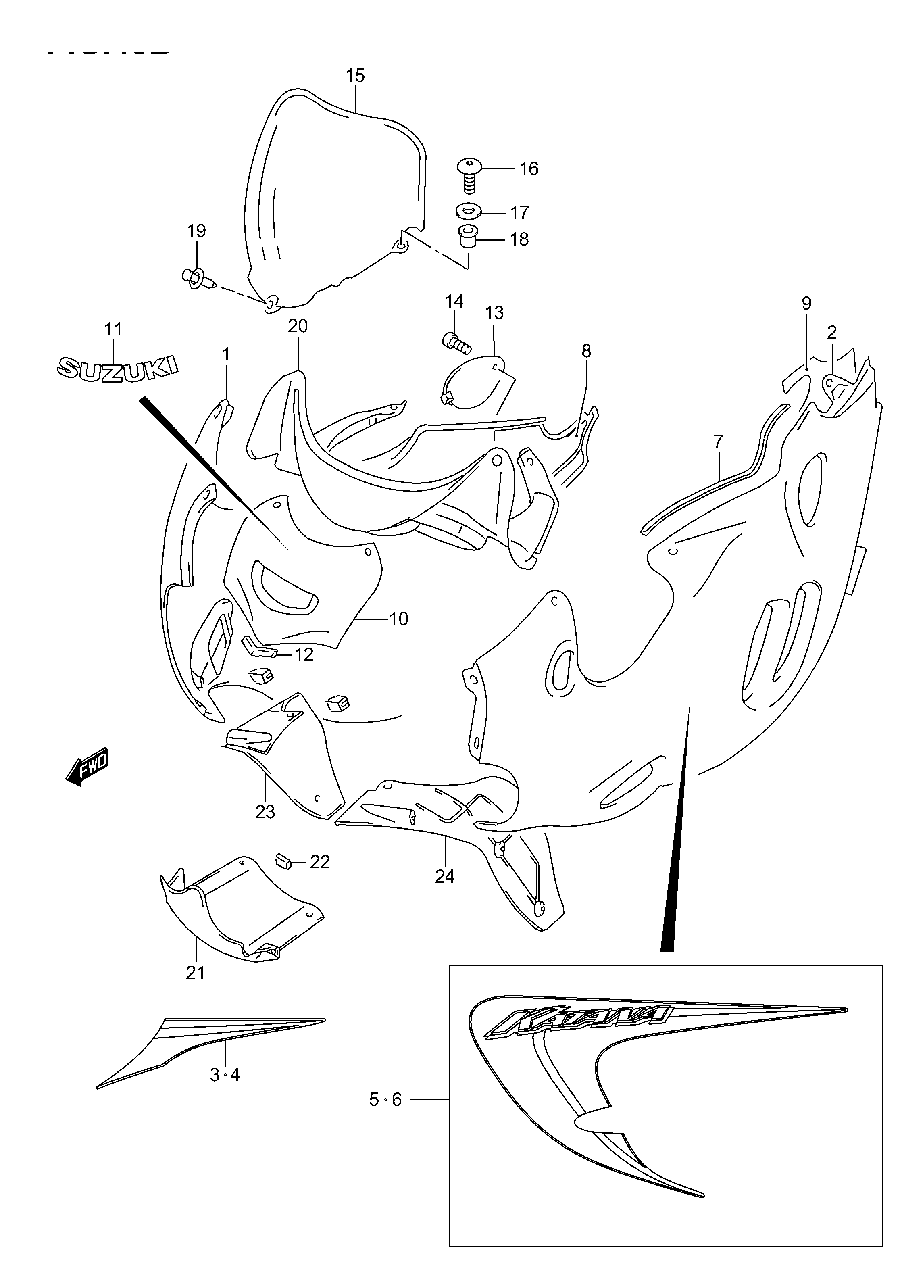

COWLING BODY для Suzuki GSX600F K6 - 2006 года выпуска

  • №
    Артикул
    Название
  • 1
    94503-08F60-019 COWL ASSY, SIDE RIGHT HAND (BLACK, 019 FOR 019)
    COWL ASSY, SIDE RIGHT HAND (BLACK, 019 FOR 019)
  • 1
    94503-08F60-YKY COWL ASSY, SIDE RIGHT HAND (BLUE, YKY FOR CWH)
    COWL ASSY, SIDE RIGHT HAND (BLUE, YKY FOR CWH)
  • 2
    94504-08F60-019 COWL ASSY, SIDE LEFT HAND (BLACK, 019 FOR 019) (EXCEPT CALIF.)
    COWL ASSY, SIDE LEFT HAND (BLACK, 019 FOR 019) (EXCEPT CALIF.)
  • 2
    94504-08F60-YKY COWL ASSY, SIDE LEFT HAND (BLUE, YKY FOR CWH) (EXCEPT CALIF.)
    COWL ASSY, SIDE LEFT HAND (BLUE, YKY FOR CWH) (EXCEPT CALIF.)
  • 2
    94504-08F70-019 COWL ASSY, SIDE LEFT HAND (BLACK, 019 FOR 019) (CALIF ONLY)
    COWL ASSY, SIDE LEFT HAND (BLACK, 019 FOR 019) (CALIF ONLY)
  • 2
    94504-08F70-YKY COWL ASSY, SIDE LEFT HAND (BLUE, YKY FOR CWH) (CALIF ONLY)
    COWL ASSY, SIDE LEFT HAND (BLUE, YKY FOR CWH) (CALIF ONLY)
  • 3
    68685-08F70-GY4 TAPE, UPPER RIGHT HAND (FOR 019)
    TAPE, UPPER RIGHT HAND (FOR 019)
  • 3
    68685-08F70-DBR TAPE, UPPER RIGHT HAND (FOR YKY)
    TAPE, UPPER RIGHT HAND (FOR YKY)
  • 4
    68695-08F70-GY4 TAPE, UPPER LEFT HAND (FOR 019)
    TAPE, UPPER LEFT HAND (FOR 019)
  • 4
    68695-08F70-DBR TAPE, UPPER LEFT HAND (FOR YKY)
    TAPE, UPPER LEFT HAND (FOR YKY)
  • 5
    68685-08F90-DBL TAPE, SIDE RIGHT HAND (FOR 019)
    TAPE, SIDE RIGHT HAND (FOR 019)
  • 5
    68685-08F90-DBM TAPE, SIDE RIGHT HAND (FOR YKY)
    TAPE, SIDE RIGHT HAND (FOR YKY)
  • 6
    68695-08F90-DBL TAPE, SIDE LEFT HAND (FOR 019)
    TAPE, SIDE LEFT HAND (FOR 019)
  • 6
    68695-08F90-DBM TAPE, SIDE LEFT HAND (FOR YKY)
    TAPE, SIDE LEFT HAND (FOR YKY)
  • 7
    94631-44110 MOLDING
    MOLDING
  • 8
    94439-08F00 SHIELD, HEAT RIGHT HAND
    SHIELD, HEAT RIGHT HAND
  • 9
    94449-08F00 SHIELD, HEAT LEFT HAND
    SHIELD, HEAT LEFT HAND
  • 10
    94410-08F00-019 PANEL, CENTER UPPER (BLACK, 019 FOR 019)
    PANEL, CENTER UPPER (BLACK, 019 FOR 019)
  • 10
    94410-08F00-YKY PANEL, CENTER UPPER (BLUE, YKY FOR CWH)
    PANEL, CENTER UPPER (BLUE, YKY FOR CWH)
  • 11
    68185-05C10-YD8 TAPE, UPPER PANEL (SILVER)
    TAPE, UPPER PANEL (SILVER)
  • 12
    94413-08F00 CUSHION
    CUSHION
  • 13
    94435-08F00-019 LID, OIL (BLACK, 019 FOR 019)
    LID, OIL (BLACK, 019 FOR 019)
  • 13
    94435-08F00-YKY LID, OIL (BLUE, YKY FOR CWH)
    LID, OIL (BLUE, YKY FOR CWH)
  • 14
    09139-06030 SCREW
    SCREW
  • 15
    94611-08F00 WIND SCREEN
    WIND SCREEN
  • 16
    09139-05025 SCREW
    SCREW
  • 17
    08322-01053 WASHER
    WASHER
  • 18
    09159-05019 NUT
    NUT
  • 19
    09409-08308-5ES CLIP (BLACK)
    CLIP (BLACK)
  • 20
    94421-08F00 PANEL, METER
    PANEL, METER
  • 21
    94412-08F00-019 PANEL, CENTER LOWER (BLACK, 019 FOR 019)
    PANEL, CENTER LOWER (BLACK, 019 FOR 019)
  • 21
    94412-08F00-YKY PANEL, CENTER LOWER (BLUE, YKY FOR CWH)
    PANEL, CENTER LOWER (BLUE, YKY FOR CWH)
  • 22
    94414-08F00 CUSHION
    CUSHION
  • 23
    94461-08F10 PANEL, INNER RIGHT HAND
    PANEL, INNER RIGHT HAND
  • 24
    94462-08F10 PANEL, INNER LEFT HAND
    PANEL, INNER LEFT HAND
