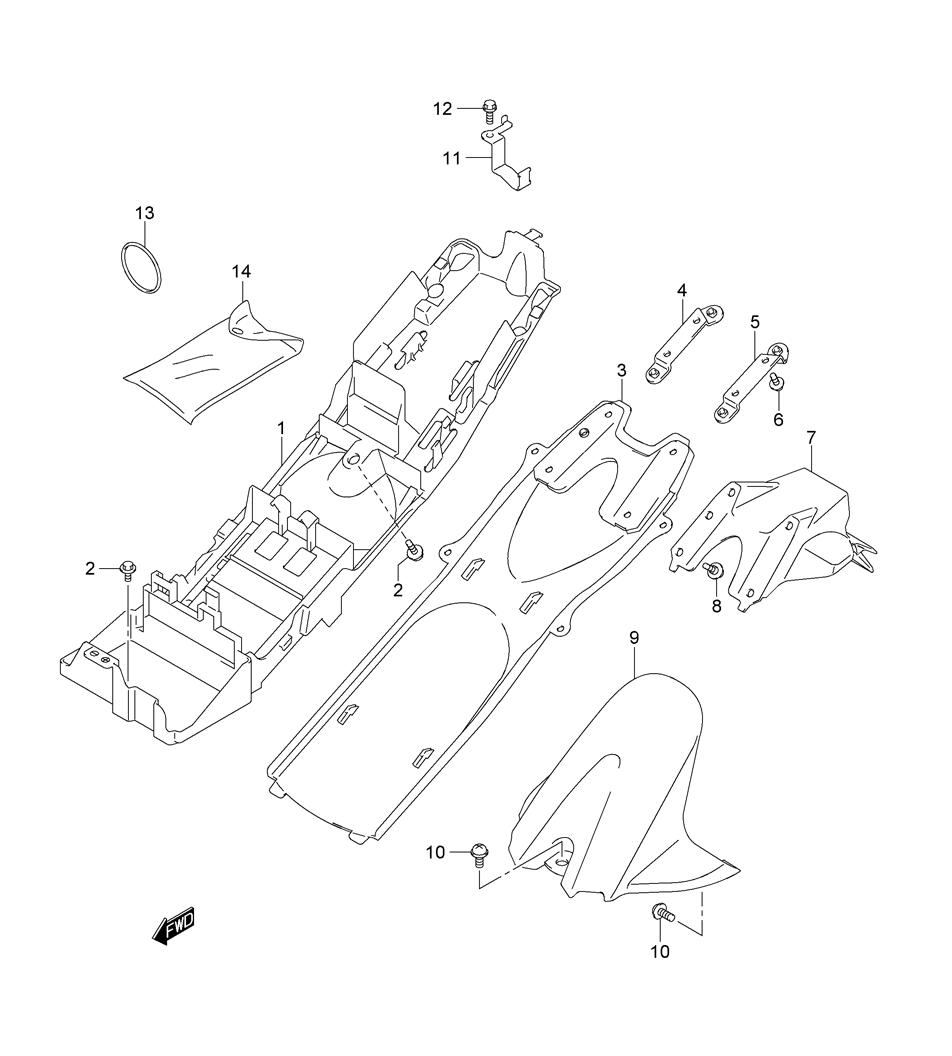

FENDER - REAR для Suzuki GSX-R750 K6 - 2006 года выпуска
-
№АртикулНазвание
-
163111-01H00 FENDER, REAR FRONT UPPERFENDER, REAR FRONT UPPER
-
263161-43E00-A05 BOLTBOLT
-
363112-01H00 FENDER, REAR FRONT LOWERFENDER, REAR FRONT LOWER
-
463120-01H00 BRACKET, RIGHT HANDBRACKET, RIGHT HAND
-
563220-01H00 BRACKET, LEFT HANDBRACKET, LEFT HAND
-
601550-0612A BOLTBOLT
-
763113-01H00 FENDER, REARFENDER, REAR
-
809111-06089-A05 BOLTBOLT
-
963114-01H00 FENDER, REAR LOWERFENDER, REAR LOWER
-
1009103-06289 BOLTBOLT
-
1147410-01H00 PLATE, FUSE BOXPLATE, FUSE BOX
-
1201550-0612A BOLTBOLT
-
1309280-61002 BAND, TOOLBAND, TOOL
-
1409800-21039 TOOL ASSYTOOL ASSY
