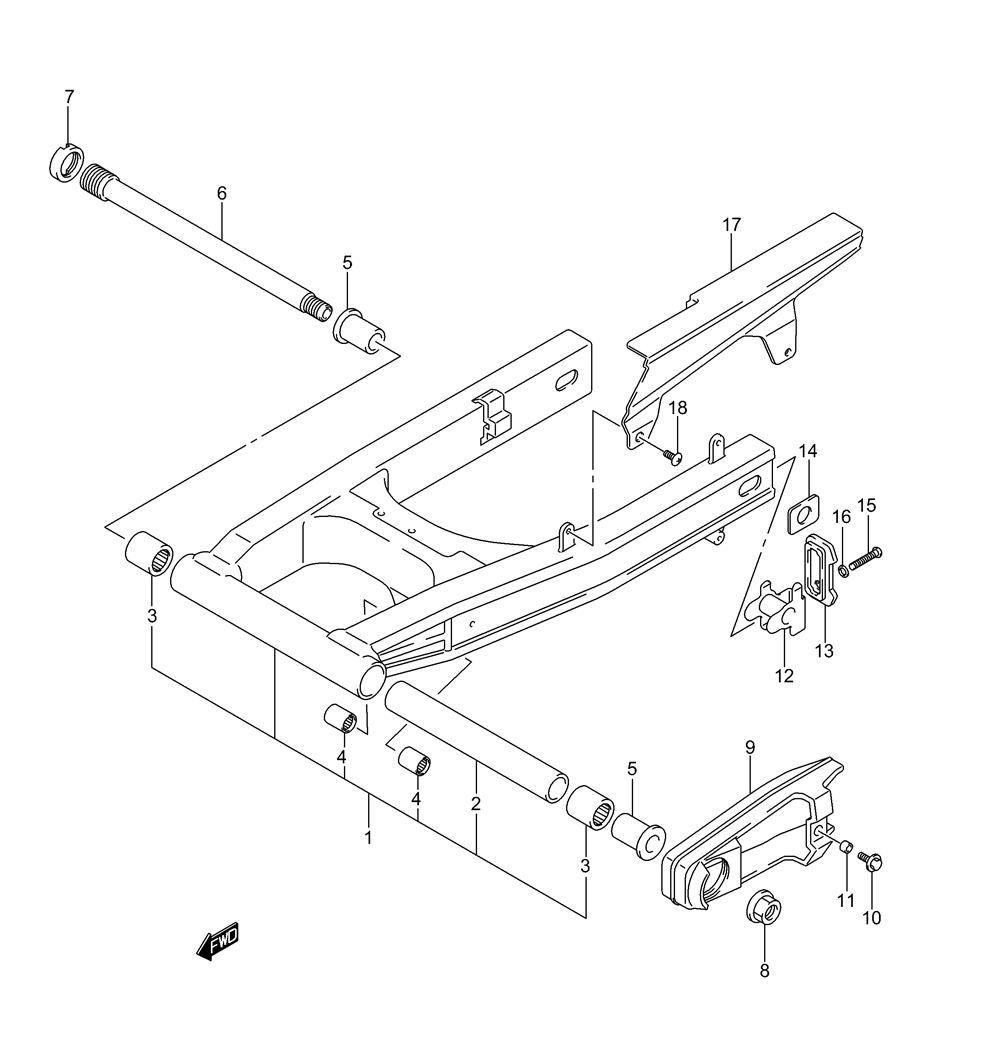

SUSPENSION - REAR SWING ARM W/ SHOCK для Suzuki DL650 K6 V-STORM - 2006 года выпуска`
-
№АртикулНазвание
-
161000-27G10-YAP SWINGING ARM ASSY, REARSWINGING ARM ASSY, REAR
-
209180-20118 SPACER, REAR SWINGING ARMSPACER, REAR SWINGING ARM
-
309263-25059 BEARING, PIVOTBEARING, PIVOT
-
409263-17037 BEARING, CUSHION RODBEARING, CUSHION ROD
-
561251-31E00 SPACER, SWINGING ARMSPACER, SWINGING ARM
-
661211-06G00 SHAFT, REAR SWINGING ARM PIVOTSHAFT, REAR SWINGING ARM PIVOT
-
761214-19F00 NUT, PIVOT SHAFTNUT, PIVOT SHAFT
-
808319-31188 NUTNUT
-
961273-27G00 BUFFER, CHAIN TOUCH DEFENSEBUFFER, CHAIN TOUCH DEFENSE
-
1009116-06152 BOLT (6X20)BOLT (6X20)
-
1109180-06283 SPACER (6.5X10X7)SPACER (6.5X10X7)
-
1261410-03F00 ADJUSTER, CHAINADJUSTER, CHAIN
-
1361421-33D01 PLATE, CHAIN ADJUSTER GUIDE, RIGHTPLATE, CHAIN ADJUSTER GUIDE, RIGHT
-
1361422-33D01 PLATE, CHAIN ADJUSTER GUIDE, LEFTPLATE, CHAIN ADJUSTER GUIDE, LEFT
-
1464712-03F00 WASHER, CHAIN ADJUSTER, RIGHTWASHER, CHAIN ADJUSTER, RIGHT
-
1464713-03F00 WASHER, CHAIN ADJUSTER, LEFTWASHER, CHAIN ADJUSTER, LEFT
-
1509106-08119 BOLTBOLT
-
1609164-08015 WASHERWASHER
-
1761310-16G00 CASE, CHAINCASE, CHAIN
-
1809139-06083 SCREWSCREW
