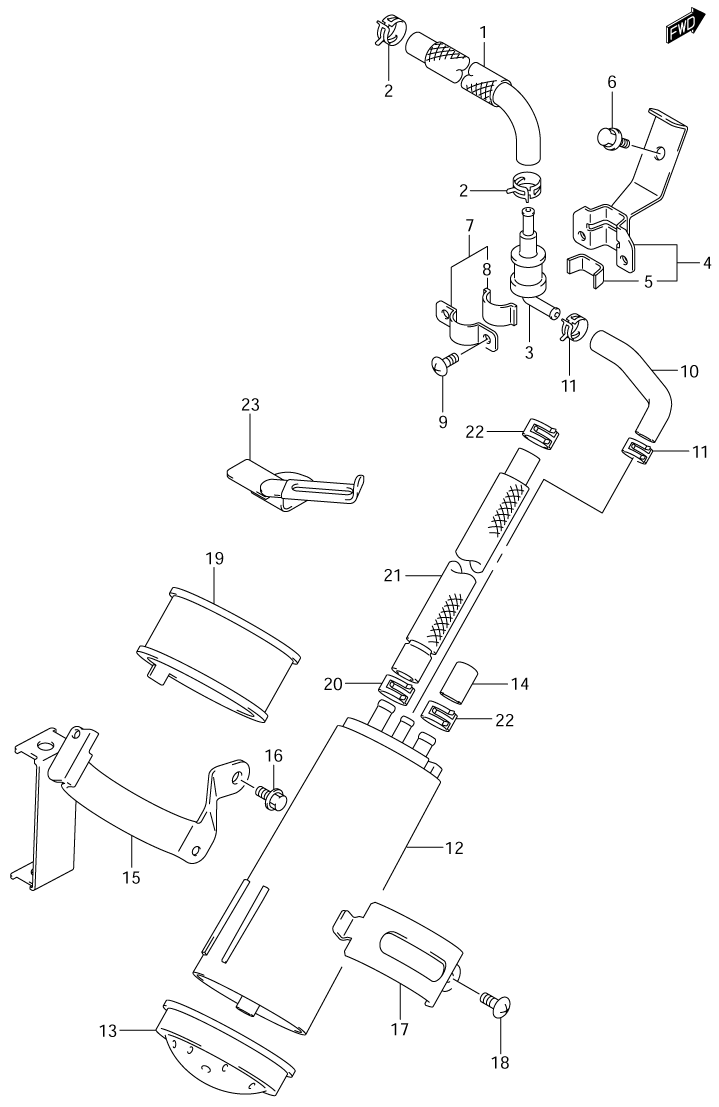

POLLUTION CONTROL (CALIF. ONLY) для Suzuki VL800 K5 - 2005 года выпуска`
-
№АртикулНазвание
-
144434-41F20 HOSE, TANK & VALVE UPPERHOSE, TANK & VALVE UPPER
-
209401-11413 CLIPCLIP
-
344240-17C00 VALVE, BREATHERVALVE, BREATHER
-
444890-41F00 BRACKET, BREATHER VALVEBRACKET, BREATHER VALVE
-
544894-24A00 ...CUSHION...CUSHION
-
601550-06123 BOLT, BRACKETBOLT, BRACKET
-
744892-24A00 PLATE, BREATHER VALVEPLATE, BREATHER VALVE
-
844894-24A00 ...CUSHION...CUSHION
-
902142-04083 SCREW, PLATESCREW, PLATE
-
1044435-41F10 HOSE, VALVE & CANISTERHOSE, VALVE & CANISTER
-
1109401-11413 CLIPCLIP
-
1217210-26E00 CANISTERCANISTER
-
1317211-48E00 CAP, CANISTERCAP, CANISTER
-
1409251-07003 CAP, PURGECAP, PURGE
-
1544880-41F10 BRACKET, CANISTERBRACKET, CANISTER
-
1609139-06108 BOLT, BRACKETBOLT, BRACKET
-
1744882-26E00 HOLDER, CANISTERHOLDER, CANISTER
-
1802142-06103 SCREW, HOLDERSCREW, HOLDER
-
1944883-26E00 CUSHION, CANISTERCUSHION, CANISTER
-
2009401-11407 CLIPCLIP
-
2144438-41F10 HOSE, THROTTLE BODYHOSE, THROTTLE BODY
-
2209401-11413 CLIPCLIP
-
2344480-41F00 CLAMP, EVAPO HOSECLAMP, EVAPO HOSE
