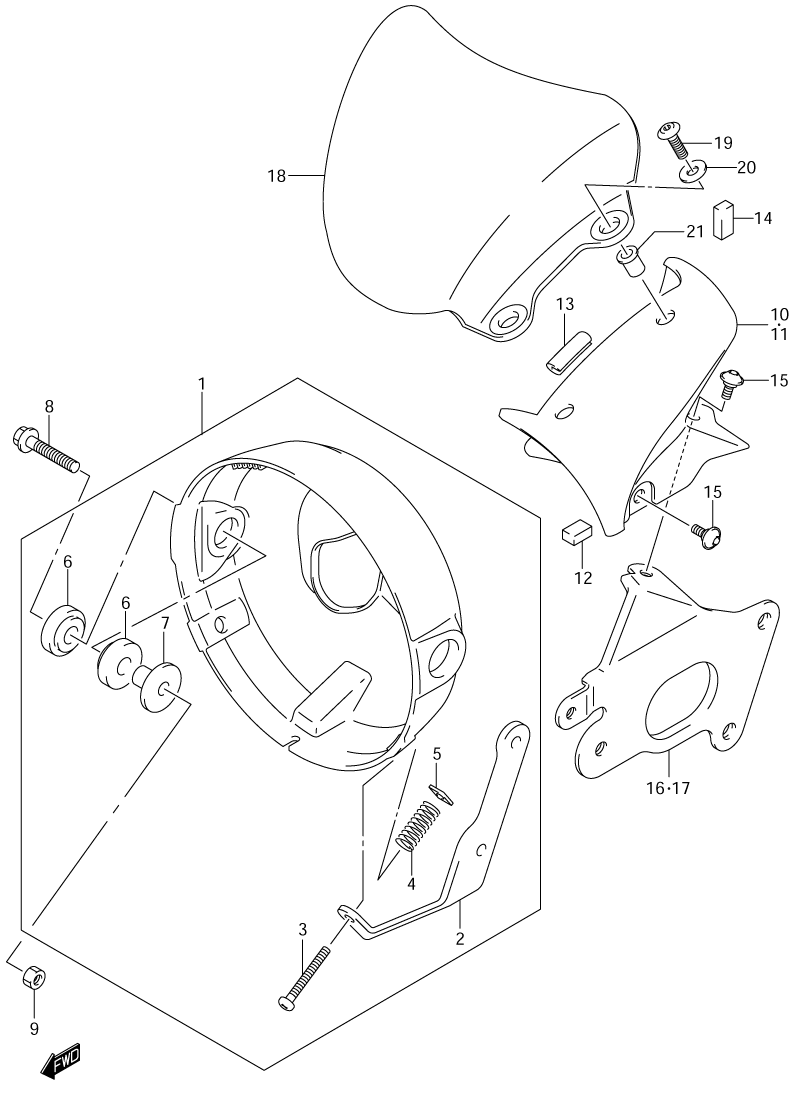

HEADLAMP HOUSING (CANADA ONLY) для Suzuki SV1000 K5 - 2005 года выпуска
-
№АртикулНазвание
-
151800-16GA0 HOUSING ASSY., HEADLAMPHOUSING ASSY., HEADLAMP
-
251814-16GA0 ...PLATE...PLATE
-
309125-05128 ...SCREW, ADJUSTER...SCREW, ADJUSTER
-
451837-25D00 ...SPRING, ADJUSTER...SPRING, ADJUSTER
-
551825-25D00 ...NUT, ADJUSTER...NUT, ADJUSTER
-
609320-12065 ...CUSHION...CUSHION
-
709180-08217 ...SPACER...SPACER
-
809103-08391 BOLTBOLT
-
908310-00083 NUTNUT
-
10-151814-16G00-YD8 COVER, HEADLAMP (RIGHT) (YD8 - SILVER)COVER, HEADLAMP (RIGHT) (YD8 - SILVER)
-
10-251814-16G00-YU7 COVER, HEADLAMP (RIGHT) (YU7 - RED)COVER, HEADLAMP (RIGHT) (YU7 - RED)
-
10-351814-16G00-YAY COVER, HEADLAMP (RIGHT) (YAY - BLACK)COVER, HEADLAMP (RIGHT) (YAY - BLACK)
-
11-151815-16G00-YD8 COVER, HEADLAMP (LEFT) (YD8 - SILVER)COVER, HEADLAMP (LEFT) (YD8 - SILVER)
-
11-251815-16G00-YU7 COVER, HEADLAMP (LEFT) (YU7 - RED)COVER, HEADLAMP (LEFT) (YU7 - RED)
-
11-351815-16G00-YAY COVER, HEADLAMP (LEFT) (YAY - BLACK)COVER, HEADLAMP (LEFT) (YAY - BLACK)
-
1292146-14G10 CUSHIONCUSHION
-
1394631-35F00 MOLDINGMOLDING
-
1494632-22D00 TAPETAPE
-
1509139-05064 SCREWSCREW
-
1651850-16GB0 PLATE, COVER (RIGHT)PLATE, COVER (RIGHT)
-
1751860-16GB0 PLATE, COVER (LEFT)PLATE, COVER (LEFT)
-
1851816-16G00 COVER, METERCOVER, METER
-
1909139-05032 SCREW, COVERSCREW, COVER
-
2008322-01053 WASHERWASHER
-
2109159-05019 NUTNUT
