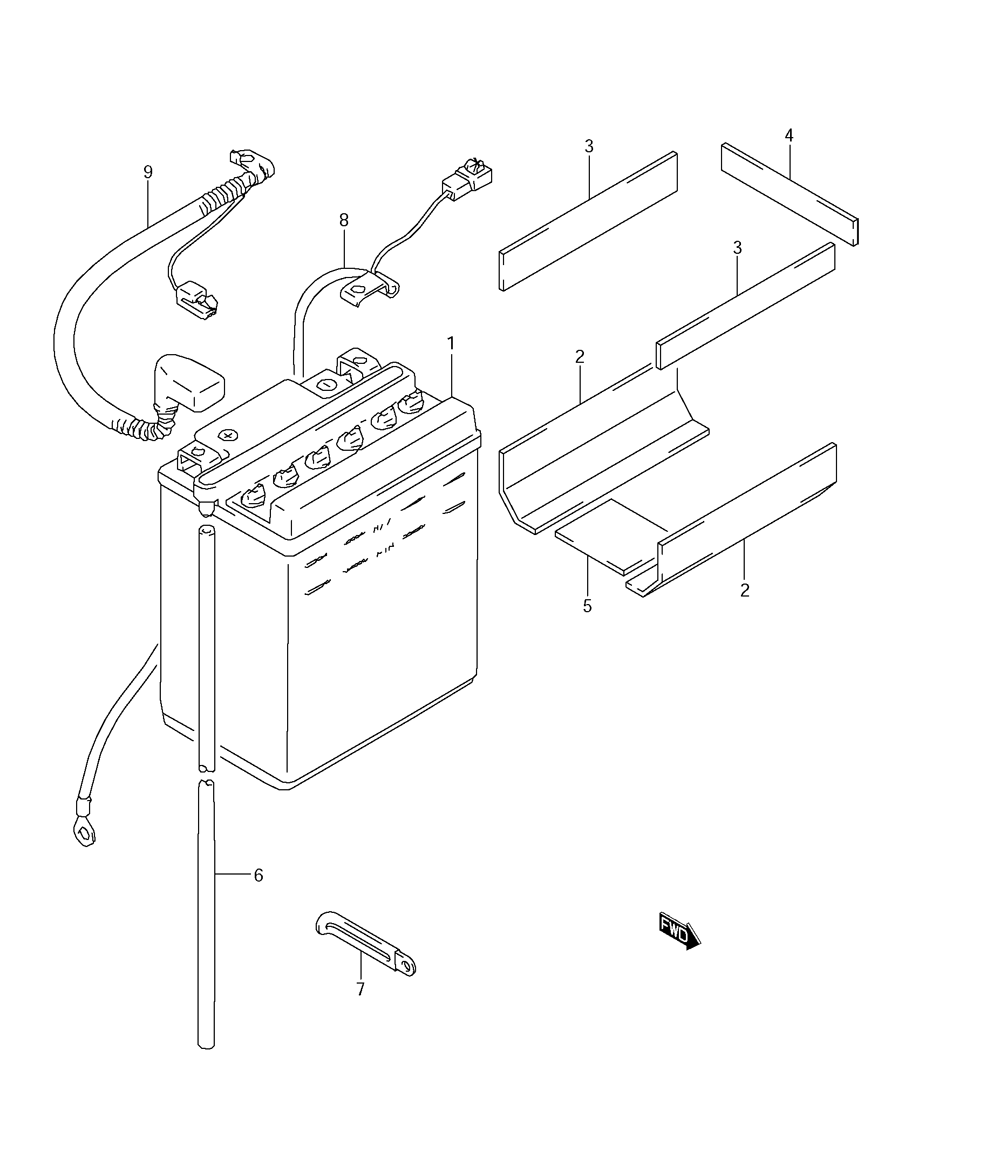

BATTERY для Suzuki LS650 K5 - 2005 года выпуска

  • №
    Артикул
    Название
  • 1
    33610-05A10 BATTERY ASSEMBLY (YB14L-B2) 12V,14AH
    BATTERY ASSEMBLY (YB14L-B2) 12V,14AH
  • 2
    33651-37000 PROTECTOR (170X95X3.0) CUT AS REQUIRED (115X50)
    PROTECTOR (170X95X3.0) CUT AS REQUIRED (115X50)
  • 3
    33651-37000 PROTECTOR (170X95X3.0) CUT AS REQUIRED (20X90)
    PROTECTOR (170X95X3.0) CUT AS REQUIRED (20X90)
  • 4
    33652-38A10 PROTECTOR (20X90X2.0)
    PROTECTOR (20X90X2.0)
  • 5
    33652-20C00 PROTECTOR (50X50X5.0) CUT AS REQUIRED (30X30)(50X50)
    PROTECTOR (50X50X5.0) CUT AS REQUIRED (30X30)(50X50)
  • 6
    33680-16A10 HOSE, BATTERY EXHAUST LENGTH: 780->400
    HOSE, BATTERY EXHAUST LENGTH: 780->400
  • 7
    09404-06429 CLAMP, HOSE (LENGTH: 45)
    CLAMP, HOSE (LENGTH: 45)
  • 8
    33860-24B00 LEAD WIRE, BATTERY (-)
    LEAD WIRE, BATTERY (-)
  • 9
    33870-24B00 LEAD WIRE, BATTERY (+)
    LEAD WIRE, BATTERY (+)
