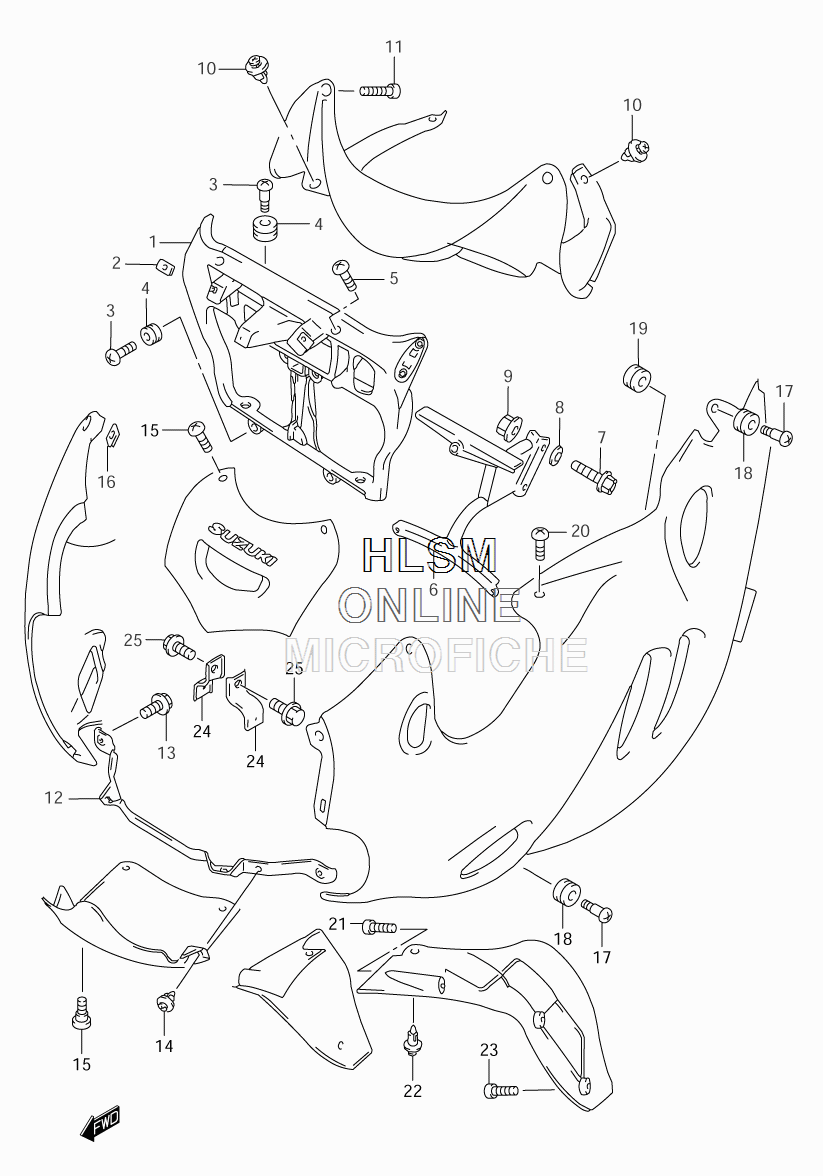

COWLING BODY - INSTALLATION PARTS для Suzuki GSX750F K5 - 2005 года выпуска`
-
№АртикулНазвание
-
194520-08F00 BRACE, COWLING FRONTBRACE, COWLING FRONT
-
294484-24F00 NUTNUT
-
309139-06126 SCREWSCREW
-
409320-09016 CUSHIONCUSHION
-
502142-05163 SCREWSCREW
-
694510-08F10 BRACE, COWLING REARBRACE, COWLING REAR
-
709103-08222 BOLTBOLT
-
809164-08020 WASHERWASHER
-
908316-10083 NUT, LOWERNUT, LOWER
-
1009409-08308-5ES CLIP, METER PANEL (BLACK)CLIP, METER PANEL (BLACK)
-
1103541-05163 SCREW, UPPERSCREW, UPPER
-
1294540-08F00 BRACKET, CENTER LOWERBRACKET, CENTER LOWER
-
1301580-06163 BOLT, BRACKETBOLT, BRACKET
-
1409409-06322-5PK CLIP (BLACK)CLIP (BLACK)
-
1509139-05042 SCREW, CENTER PANELSCREW, CENTER PANEL
-
1609148-05038 NUT, METER PANEL UPPERNUT, METER PANEL UPPER
-
1709139-06126 SCREW, SIDE COWLINGSCREW, SIDE COWLING
-
1809320-09016 CUSHIONCUSHION
-
1909320-08018 CUSHION, CENTERCUSHION, CENTER
-
2009139-05054 SCREW, METER PANEL REARSCREW, METER PANEL REAR
-
2109136-04003 SCREW, INNER PANEL UPPERSCREW, INNER PANEL UPPER
-
2209409-08308-5ES CLIP, INNER PANELCLIP, INNER PANEL
-
2302142-15163 SCREWSCREW
-
2494530-08F00 BRACKET, SIDE LOWERBRACKET, SIDE LOWER
-
2509116-06109 BOLTBOLT
