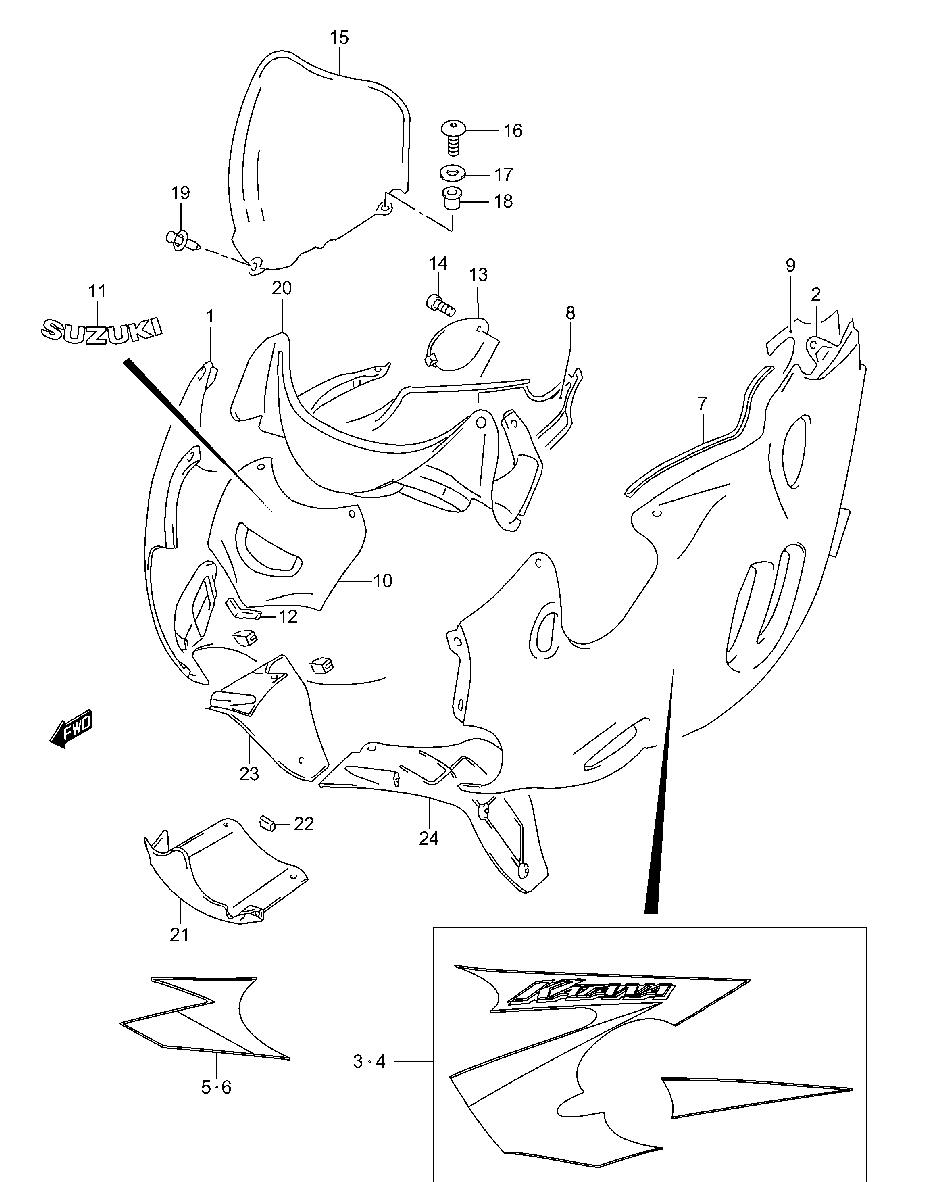

COWLING BODY для Suzuki GSX600F K5 - 2005 года выпуска

  • №
    Артикул
    Название
  • 1
    94503-08F30-YC2 COWL ASSY, SIDE RIGHT HAND (BLUE, YU2 FOR ANZ)
    COWL ASSY, SIDE RIGHT HAND (BLUE, YU2 FOR ANZ)
  • 1
    94503-08F30-YU7 COWL ASSY, SIDE RIGHT HAND (RED, YU7 FOR YU7)
    COWL ASSY, SIDE RIGHT HAND (RED, YU7 FOR YU7)
  • 2
    94504-08F30-YC2 COWL ASSY, SIDE LEFT HAND (BLUE, YU2 FOR ANZ) (EXCEPT CALIF.)
    COWL ASSY, SIDE LEFT HAND (BLUE, YU2 FOR ANZ) (EXCEPT CALIF.)
  • 2
    94504-08F30-YU7 COWL ASSY, SIDE LEFT HAND (RED, YU7 FOR YU7) (EXCEPT CALIF.)
    COWL ASSY, SIDE LEFT HAND (RED, YU7 FOR YU7) (EXCEPT CALIF.)
  • 2
    94504-08F40-YC2 COWL ASSY, SIDE LEFT HAND (BLUE, YC2 FOR ANZ) (CALIF. ONLY)
    COWL ASSY, SIDE LEFT HAND (BLUE, YC2 FOR ANZ) (CALIF. ONLY)
  • 2
    94504-08F40-YU7 COWL ASSY, SIDE LEFT HAND (RED, YU7 ) (CALIF. ONLY)
    COWL ASSY, SIDE LEFT HAND (RED, YU7 ) (CALIF. ONLY)
  • 3
    68680-08F60-BWD TAPE, LOWER RIGHT HAND (FOR YC2)
    TAPE, LOWER RIGHT HAND (FOR YC2)
  • 3
    68680-08F60-BWE TAPE, LOWER RIGHT HAND (FOR YU7)
    TAPE, LOWER RIGHT HAND (FOR YU7)
  • 4
    68690-08F60-BWD TAPE, LOWER LEFT HAND (FOR YC2)
    TAPE, LOWER LEFT HAND (FOR YC2)
  • 4
    68690-08F60-BWE TAPE, LOWER LEFT HAND (FOR YU7)
    TAPE, LOWER LEFT HAND (FOR YU7)
  • 5
    68685-08F60-ANZ TAPE, SIDE RIGHT HAND (FOR YC2)
    TAPE, SIDE RIGHT HAND (FOR YC2)
  • 5
    68685-08F60-BVV TAPE, SIDE RIGHT HAND (FOR YU7)
    TAPE, SIDE RIGHT HAND (FOR YU7)
  • 6
    68695-08F60-ANZ TAPE, SIDE LEFT HAND (FOR YC2)
    TAPE, SIDE LEFT HAND (FOR YC2)
  • 6
    68695-08F60-BVV TAPE, SIDE LEFT HAND (FOR YU7)
    TAPE, SIDE LEFT HAND (FOR YU7)
  • 7
    94631-44110 MOLDING
    MOLDING
  • 8
    94439-08F00 SHIELD, HEAT RIGHT HAND
    SHIELD, HEAT RIGHT HAND
  • 9
    94449-08F00 SHIELD, HEAT LEFT HAND
    SHIELD, HEAT LEFT HAND
  • 10
    94410-08F00-YC2 PANEL, CENTER UPPER (BLUE, YC2 FOR ANZ)
    PANEL, CENTER UPPER (BLUE, YC2 FOR ANZ)
  • 10
    94410-08F00-YU7 PANEL, CENTER UPPER (RED, YU7 FOR YU7)
    PANEL, CENTER UPPER (RED, YU7 FOR YU7)
  • 11
    68185-05C10-YD8 TAPE, UPPER PANEL (SILVER, YD8 FOR YC2)
    TAPE, UPPER PANEL (SILVER, YD8 FOR YC2)
  • 11
    68185-05C10-019 TAPE, UPPER PANEL (BLACK, 019 FOR YU7)
    TAPE, UPPER PANEL (BLACK, 019 FOR YU7)
  • 12
    94413-08F00 CUSHION
    CUSHION
  • 13
    94435-08F00-YC2 LID, OIL (BLUE, YC2 FOR ANZ)
    LID, OIL (BLUE, YC2 FOR ANZ)
  • 13
    94435-08F00-YU7 LID, OIL (RED, YU7 FOR YU7)
    LID, OIL (RED, YU7 FOR YU7)
  • 14
    09139-06030 SCREW
    SCREW
  • 15
    94611-08F00 WIND SCREEN
    WIND SCREEN
  • 16
    09139-05025 SCREW
    SCREW
  • 17
    08322-01053 WASHER
    WASHER
  • 18
    09159-05019 NUT
    NUT
  • 19
    09409-08308-5ES CLIP (BLACK)
    CLIP (BLACK)
  • 20
    94421-08F00 PANEL, METER
    PANEL, METER
  • 21
    94412-08F00-YC2 PANEL, CENTER LOWER (BLUE, YC2 FOR ANZ)
    PANEL, CENTER LOWER (BLUE, YC2 FOR ANZ)
  • 21
    94412-08F00-YU7 PANEL, CENTER LOWER (RED, YU7 FOR YU7)
    PANEL, CENTER LOWER (RED, YU7 FOR YU7)
  • 22
    94414-08F00 CUSHION
    CUSHION
  • 23
    94461-08F10 PANEL, INNER RIGHT HAND
    PANEL, INNER RIGHT HAND
  • 24
    94462-08F10 PANEL, INNER LEFT HAND
    PANEL, INNER LEFT HAND
